M22R103K2 Equivalent & Substitute Parts

Part Overview

The M22R103K2 is a 10000 pF ±10% 200V ceramic capacitor with X7R temperature coefficient manufactured by Cornell Dubilier Electronics (CDE) in radial through-hole configuration. This part is classified as obsolete, necessitating identification of equivalent and substitute components for ongoing design support and production requirements. The M22 series radial ceramic capacitor remains functionally relevant for general-purpose applications despite its discontinued status. Equivalent parts maintain identical electrical specifications, while substitute parts offer enhanced performance characteristics or improved compliance status.

Key Parameters

Parameter	Value	Criticality for Substitution
Capacitance	10000 pF	Must Match
Voltage Rating	200V	Must Match or Exceed
Tolerance	±10%	Must Match or Tighter
Temperature Coefficient	X7R	Application Dependent
Operating Temperature Range	-55°C ~ 125°C	Must Match or Exceed
Mounting Type	Through Hole Radial	Must Match
Lead Spacing	0.200" (5.08mm)	Must Match
RoHS Status	Non-compliant	Compliance Dependent

Substitute Part Grouping Explanation

Substitute parts for the M22R103K2 are categorized into three groups based on electrical and mechanical compatibility:

Direct Equivalents maintain identical electrical specifications (10000 pF, ±10%, 200V, X7R) with compatible physical dimensions and lead spacing. These parts provide drop-in replacement capability with no circuit redesign required.

Upgraded Substitutes offer enhanced voltage ratings (250V or 500V), improved temperature coefficients (C0G/NP0 instead of X7R), or extended operating temperature ranges (-55°C ~ 200°C). These parts are suitable when circuit design permits higher voltage ratings or when improved temperature stability is beneficial. Upgraded substitutes may have different physical dimensions but maintain the critical 0.200" (5.08mm) lead spacing for PCB compatibility.

Similar Alternatives employ different temperature coefficient designations (BX instead of X7R) or military-grade specifications while maintaining core electrical parameters. These parts address high-reliability applications or specialized environmental requirements.

Substitution logic is based strictly on:

Capacitance value (10000 pF)
Voltage rating (minimum 200V)
Tolerance (±10% or tighter)
Lead spacing (0.200" / 5.08mm)
Mounting configuration (through-hole radial)

Parameter Comparison

Part Number	Manufacturer	Capacitance	Voltage	Tolerance	Temp Coeff	Temp Range	Lead Spacing	Status	RoHS
M22R103K2	CDE	10000 pF	200V	±10%	X7R	-55°C ~ 125°C	0.200"	Obsolete	Non-compliant
MR052C103KAA	KYOCERA AVX	10000 pF	200V	±10%	X7R	-55°C ~ 125°C	0.200"	Active	Non-compliant
ARR07L103KGA	KEMET	10000 pF	500V	±10%	X7R	-55°C ~ 200°C	0.200"	Active	Non-compliant
C330C103FAG5TA	KEMET	10000 pF	250V	±1%	C0G/NP0	-55°C ~ 125°C	0.200"	Active	ROHS3 Compliant
C330C103GAG5TA	KEMET	10000 pF	250V	±2%	C0G/NP0	-55°C ~ 125°C	0.200"	Active	ROHS3 Compliant
C330C103J2G5TA	KEMET	10000 pF	200V	±5%	C0G/NP0	-55°C ~ 125°C	0.200"	Active	ROHS3 Compliant
C330C103JAG5TA	KEMET	10000 pF	250V	±5%	C0G/NP0	-55°C ~ 125°C	0.200"	Active	ROHS3 Compliant
C330C103KAG5TA	KEMET	10000 pF	250V	±10%	C0G/NP0	-55°C ~ 125°C	0.200"	Active	ROHS3 Compliant
VRR07L103KGS	KEMET	10000 pF	500V	±10%	X7R	-55°C ~ 200°C	0.200"	Active	Non-compliant
CK06BX103K	KYOCERA AVX	10000 pF	200V	±10%	BX	-55°C ~ 125°C	0.200"	Active	Non-compliant
MR062C103KAATR2	KYOCERA AVX	10000 pF	200V	±10%	X7R	-55°C ~ 125°C	0.200"	Active	Non-compliant

Engineering Selection Recommendations

For Direct Replacement (Identical Specifications):

MR052C103KAA (KYOCERA AVX Ceralam® MR series) and MR062C103KAATR2 (KYOCERA AVX Ceralam® MR series, tape & reel packaging) provide direct electrical equivalence to the M22R103K2. Both maintain 10000 pF capacitance, ±10% tolerance, 200V rating, X7R temperature coefficient, and -55°C ~ 125°C operating range. These parts are active products with current manufacturing support. MR052C103KAA is available in bulk packaging, while MR062C103KAATR2 is supplied in tape & reel format for automated assembly. Both parts are RoHS non-compliant, matching the original part's compliance status.

For Voltage-Upgraded Applications:

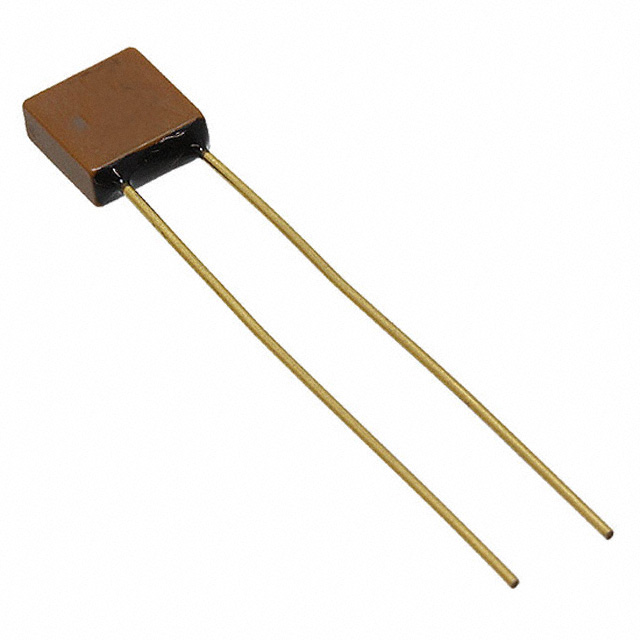

ARR07L103KGA (KEMET ARR Indust X7R HT200C series) and VRR07L103KGS (KEMET VRR Indust X7R HVHT200C series) provide 500V rated alternatives with identical 10000 pF capacitance and ±10% tolerance. Both extend the operating temperature range to -55°C ~ 200°C, enabling use in high-temperature environments. ARR07L103KGA is suitable for standard industrial applications, while VRR07L103KGS is designated for high-voltage, high-temperature applications. Both maintain the 0.200" lead spacing for PCB compatibility. These upgrades are appropriate when circuit design permits higher voltage ratings or when extended temperature performance is required.

For Improved Tolerance and RoHS Compliance:

C330C103FAG5TA, C330C103GAG5TA, C330C103J2G5TA, C330C103JAG5TA, and C330C103KAG5TA (KEMET GoldMax 300 Comm C0G series) offer ROHS3 compliance with C0G/NP0 temperature coefficient, providing superior temperature stability compared to X7R. These parts feature low ESL characteristics and are available in multiple tolerance grades (±1%, ±2%, ±5%, ±10%). Voltage ratings range from 200V to 250V. These substitutes are appropriate for applications requiring RoHS compliance or improved frequency response characteristics.

For Military and High-Reliability Applications:

CK06BX103K (KYOCERA AVX Military MIL-C-11015 series) maintains 10000 pF, ±10%, 200V specifications with BX temperature coefficient designation. This part is qualified to military standards and is suitable for high-reliability applications requiring MIL-spec certification.

Product Status Consideration:

All recommended substitutes are active products with current manufacturing support, eliminating the obsolescence risk associated with the original M22R103K2. Selection should prioritize active-status parts to ensure long-term availability and supply chain stability.

Frequently Asked Questions (FAQ)

Q: Can MR052C103KAA be used as a direct replacement for M22R103K2?

A: Yes. MR052C103KAA maintains identical electrical specifications (10000 pF, ±10%, 200V, X7R, -55°C ~ 125°C) and the required 0.200" lead spacing. Physical dimensions differ slightly (0.190" L x 0.090" W versus 0.200" L x 0.150" W), but this does not affect PCB compatibility when lead spacing is preserved. MR052C103KAA is an active product with current manufacturing support.

Q: What is the difference between X7R and C0G/NP0 temperature coefficients?

A: X7R temperature coefficient specifies capacitance variation of ±15% across the -55°C ~ 125°C operating range. C0G/NP0 temperature coefficient specifies capacitance variation of ±30 ppm/°C, providing superior stability across temperature extremes. C0G/NP0 is preferred for precision applications requiring minimal capacitance drift with temperature changes.

Q: Can I use a 250V or 500V rated capacitor in a 200V circuit?

A: Yes. Voltage rating specifies the maximum voltage the capacitor can withstand. Using a capacitor with a higher voltage rating than required is acceptable and does not degrade performance. ARR07L103KGA (500V) and C330C103JAG5TA (250V) are suitable for 200V circuits.

Q: What is the significance of RoHS compliance status?

A: RoHS (Restriction of Hazardous Substances) compliance indicates the part does not contain restricted materials such as lead, cadmium, or hexavalent chromium. ROHS3-compliant parts (C330C103 series) meet current environmental regulations and are required for many commercial and consumer applications. Non-compliant parts (M22R103K2, MR052C103KAA, ARR07L103KGA, VRR07L103KGS, CK06BX103K) may be restricted in certain markets or applications.

Q: Does lead spacing affect PCB compatibility?

A: Yes. All recommended substitutes maintain the critical 0.200" (5.08mm) lead spacing, ensuring compatibility with PCB layouts designed for the M22R103K2. Physical body dimensions may vary, but lead spacing determines hole-to-hole distance on the PCB and must remain constant.

Q: What packaging options are available?

A: MR052C103KAA is supplied in bulk packaging. MR062C103KAATR2 is supplied in tape & reel (TR) format for automated assembly. Bulk packaging is suitable for manual assembly or small-volume production. Tape & reel packaging is optimized for high-volume automated assembly processes.

Q: Are there inventory considerations for part selection?

A: Current inventory levels are provided for reference. MR052C103KAA (963 pcs), MR062C103KAATR2 (945 pcs), and C330C103J2G5TA (4139 pcs) have substantial stock availability. Inventory levels should be verified with suppliers for production planning purposes, as availability may change.

Q: What is the difference between ARR07L103KGA and VRR07L103KGS?

A: Both parts are 10000 pF, ±10%, 500V, X7R ceramic capacitors with -55°C ~ 200°C operating range. ARR07L103KGA is designated for standard industrial applications. VRR07L103KGS is designated for high-voltage, high-temperature applications with enhanced performance characteristics. Both maintain 0.200" lead spacing and are suitable for 200V circuits.

Q: Can CK06BX103K be used in place of M22R103K2?

A: CK06BX103K maintains identical capacitance (10000 pF), tolerance (±10%), voltage (200V), and operating temperature range (-55°C ~ 125°C) with 0.200" lead spacing. The BX temperature coefficient differs from X7R, providing different temperature stability characteristics. CK06BX103K is qualified to military standard MIL-C-11015 and is suitable for high-reliability applications. Substitution is acceptable when military-grade specifications are required or beneficial.
