M22N-BP-TYA-YE LED Panel Indicator Equivalent & Substitute Parts

Part Overview

The M22N-BP-TYA-YE is an LED panel indicator manufactured by Omron Automation and Safety, designed for 230V AC applications with 2mA current consumption. This yellow LED indicator features a round panel cutout of 22.30mm (0.88") with a clear lens and flat top design, meeting IP66, NEMA 4X, and NEMA 13 ingress protection ratings. The component is RoHS Compliant and carries an active product status. Substitute parts may be required due to inventory availability, regional sourcing constraints, or specific packaging requirements while maintaining identical electrical and mechanical performance.

Substiute Parts

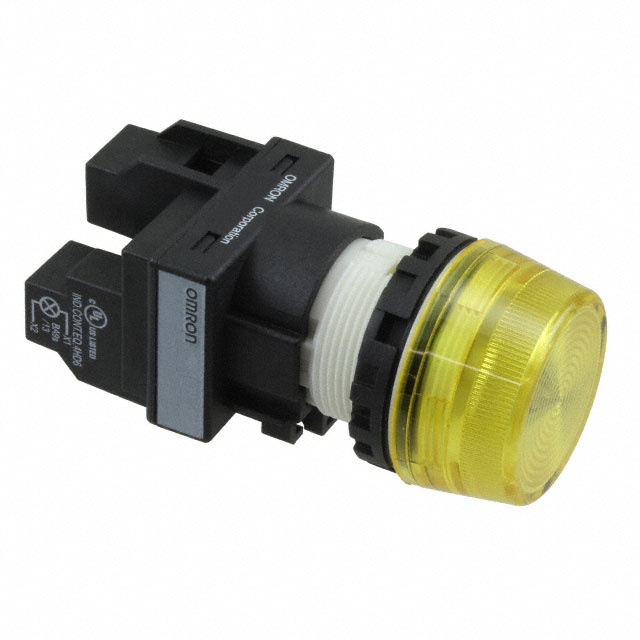

M22N-BP-TYA-YE

Omron Automation and SafetyIn Stock: 1053M22N-BP-TYA-YE Datasheet

Current PartRFQ

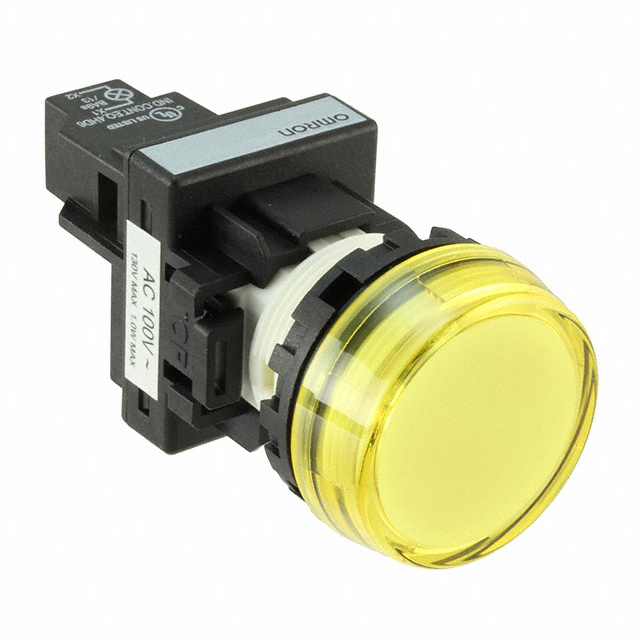

M22N-BC-TYA-YE

Omron Automation and SafetyIn Stock: 1064M22N-BC-TYA-YE Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The M22N-BP-TYA-YE has one parametric equivalent substitute: M22N-BC-TYA-YE. Both parts share identical electrical ratings (230V AC, 2mA), mechanical dimensions (22.30mm round cutout), optical properties (yellow lamp and lens, clear transparency), and environmental protection ratings (IP66, NEMA 4X, 13). The substitution is valid based on matching all critical parameters that determine functional compatibility in panel-mounted LED indicator applications. The difference between these parts lies in the base product number designation (BP versus BC), which reflects internal Omron product line categorization rather than functional or performance variation.

Parameter Comparison

Engineering Selection Recommendations

Both M22N-BP-TYA-YE and M22N-BC-TYA-YE are active products from Omron Automation and Safety with full compliance certifications. The M22N-BP-TYA-YE carries RoHS Compliant status, while the M22N-BC-TYA-YE carries ROHS3 Compliant status with additional REACH Unaffected designation. Selection between these parts should be based on inventory availability and regional compliance requirements. Both components meet identical electrical, mechanical, and environmental specifications for direct substitution in 230V AC panel indicator applications.

Frequently Asked Questions (FAQ)

Q: Can M22N-BC-TYA-YE replace M22N-BP-TYA-YE in existing designs? A: Yes. Both parts are electrically and mechanically identical with matching 230V AC ratings, 2mA current consumption, 22.30mm round panel cutout dimensions, and IP66/NEMA 4X/13 protection ratings. Direct substitution is valid without circuit or mechanical modifications.

Q: What is the difference between the BP and BC base product designations? A: The BP and BC designations represent different product line categories within Omron's M22N series. These designations do not affect electrical performance, mechanical compatibility, or functional operation in panel-mounted applications.

Q: Are there compliance differences between these parts? A: The M22N-BP-TYA-YE is RoHS Compliant, while the M22N-BC-TYA-YE is ROHS3 Compliant with REACH Unaffected status. Both meet applicable environmental and safety standards. Selection may depend on regional regulatory requirements.

Q: Do both parts have the same panel cutout dimensions? A: Yes. Both parts feature identical 22.30mm (0.88") round panel cutout dimensions with matching lens styles (round with flat top), ensuring mechanical interchangeability in panel installations.

Q: What is the MSL rating for these components? A: Both parts carry MSL 1 (Unlimited) rating, indicating minimal moisture sensitivity and no special storage or handling requirements.
