Omron M22N-BP-TYA-YD LED Panel Indicator Yellow 110VAC Equivalent & Substitute Parts

Part Overview

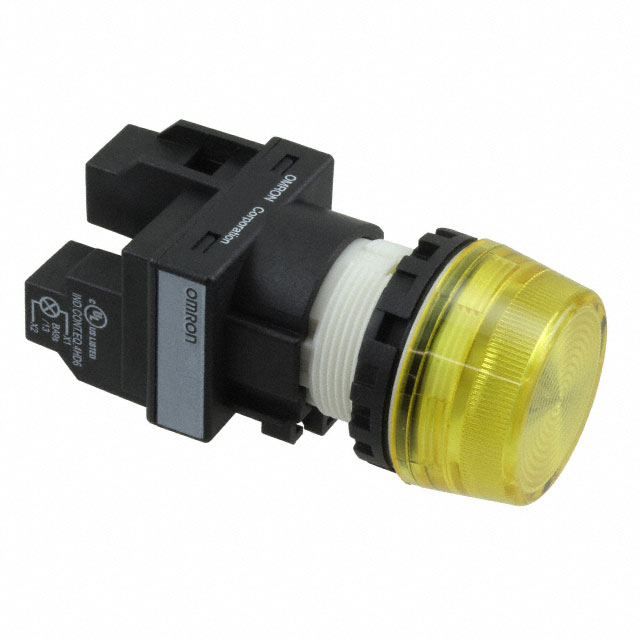

The Omron M22N-BP-TYA-YD is an active LED panel indicator designed for 110V AC applications with yellow lamp and lens coloring. This component delivers 2mA current consumption and features a round 22.30mm panel cutout with IP66, NEMA 4X, and NEMA 13 ingress protection ratings. Finding equivalent substitute parts becomes necessary when managing inventory across multiple supply channels, addressing component availability fluctuations, or standardizing procurement across manufacturing facilities while maintaining identical electrical and mechanical performance.

Substiute Parts

M22N-BP-TYA-YD

Omron Automation and SafetyIn Stock: 1134M22N-BP-TYA-YD Datasheet

Current PartRFQ

M22N-BC-TYA-YD

Omron Automation and SafetyIn Stock: 844M22N-BC-TYA-YD Datasheet

Parametric EquivalentRFQ

M22N-BN-TYA-YD

Omron Automation and SafetyIn Stock: 1121M22N-BN-TYA-YD Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the M22N-BP-TYA-YD are determined by strict equivalence across all critical electrical and mechanical parameters. The substitution logic is based on the following criteria:

Electrical Parameters: Voltage rating (110V AC), current consumption (2mA), and lamp type (LED) must be identical.

Mechanical Parameters: Panel cutout shape (round), cutout dimensions (22.30mm), lens color (yellow), lens transparency (clear), and lens style (round with flat top) must match exactly.

Environmental Ratings: Ingress protection classification (IP66, NEMA 4X, 13) must be maintained.

Series Consistency: All substitutes belong to the Omron M22N series.

The identified substitutes M22N-BC-TYA-YD and M22N-BN-TYA-YD meet all these criteria. The differences between these parts lie in their base product numbers (BP, BC, and BN designations) and connector or termination style variations, which do not affect the core LED indicator functionality or panel mounting compatibility.

Parameter Comparison

Engineering Selection Recommendations

All three parts—M22N-BP-TYA-YD, M22N-BC-TYA-YD, and M22N-BN-TYA-YD—are active products from Omron Automation and Safety with full compliance certifications. The M22N-BP-TYA-YD carries RoHS Compliant status, while both M22N-BC-TYA-YD and M22N-BN-TYA-YD are ROHS3 Compliant with REACH Unaffected designation. Selection between these parts should be based on connector or termination style requirements specific to your application, as all electrical and mechanical parameters are identical. Inventory availability and supply chain considerations may also influence part selection, with current stock levels at 1057 pcs (M22N-BP-TYA-YD), 763 pcs (M22N-BC-TYA-YD), and 1011 pcs (M22N-BN-TYA-YD).

Frequently Asked Questions (FAQ)

Q: Can M22N-BC-TYA-YD or M22N-BN-TYA-YD be used as direct replacements for M22N-BP-TYA-YD?

A: Yes. All three parts share identical electrical ratings (110V AC, 2mA), mechanical dimensions (22.30mm round cutout), lens specifications (yellow color, clear transparency, round with flat top style), and environmental protection ratings (IP66, NEMA 4X, 13). Differences in base product numbers reflect connector or termination variations that do not affect panel mounting or LED indicator functionality.

Q: What determines substitutability for M22N series LED panel indicators?

A: Substitutability is determined by exact matching of voltage rating, current consumption, lamp and lens color, lens transparency, panel cutout dimensions and shape, lens style, and ingress protection classification. All three parts in this comparison meet these criteria.

Q: Are there compliance differences between these substitute parts?

A: The M22N-BP-TYA-YD is RoHS Compliant. The M22N-BC-TYA-YD and M22N-BN-TYA-YD are ROHS3 Compliant with REACH Unaffected status. All parts maintain MSL 1 (Unlimited) moisture sensitivity rating. Compliance selection should align with your regulatory requirements.

Q: How do the base product number designations (BP, BC, BN) affect part selection?

A: The base product number designations indicate different connector or termination styles within the M22N series. These variations do not affect the LED indicator's electrical performance, light output, or panel mounting compatibility. Selection should be based on your specific wiring or connection requirements.

Q: Is there a preferred part for new designs?

A: Selection should be based on connector compatibility with your control circuit and compliance requirements. All three parts are active products suitable for new designs. ROHS3 Compliant variants (M22N-BC-TYA-YD and M22N-BN-TYA-YD) may be preferred for applications requiring enhanced environmental compliance.
