Omron M22N-BN-TYA-YB LED Panel Indicator - Equivalent & Substitute Parts

Part Overview

The Omron M22N-BN-TYA-YB is an active LED panel indicator designed for 12V AC/DC applications. This yellow LED indicator with clear lens provides visual status indication in industrial control panels and equipment. The part is actively manufactured and stocked, with 934 units available in inventory. Substitute parts are identified based on identical electrical ratings, mechanical dimensions, and environmental protection specifications to ensure direct functional replacement without circuit redesign.

Substiute Parts

M22N-BN-TYA-YB

Omron Automation and SafetyIn Stock: 991M22N-BN-TYA-YB Datasheet

Current PartRFQ

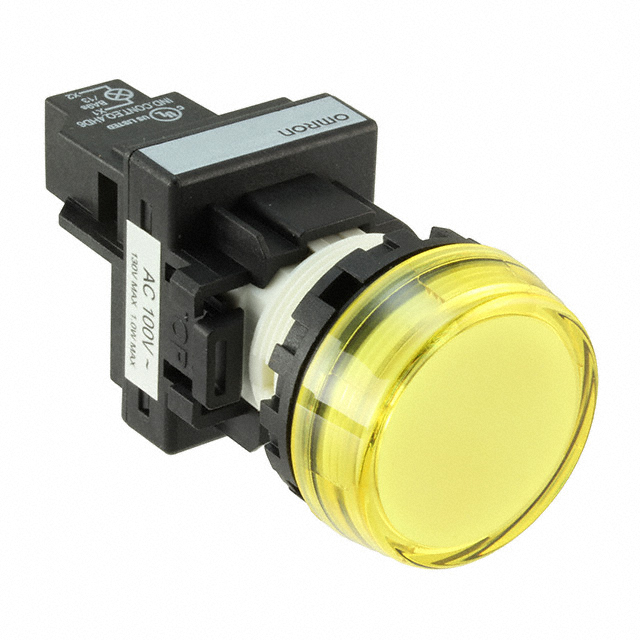

M22N-BC-TYA-YB

Omron Automation and SafetyIn Stock: 1194M22N-BC-TYA-YB Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M22N-BN-TYA-YB is determined by strict equivalence across the following critical parameters:

• Voltage rating: 12V AC/DC
• Current consumption: 12mA
• Lamp color and lens color: Yellow
• Lens transparency: Clear
• Panel cutout shape and dimensions: Round, 0.88" (22.30mm)
• Lens style: Round with Flat Top
• Ingress protection rating: IP66, NEMA 4X, 13
• RoHS compliance status

The substitute part M22N-BC-TYA-YB meets all these criteria and belongs to the same M22N series. The difference between the main part and substitute lies in the connector type designation (BN versus BC), which represents different termination styles within the same product family. Both parts maintain identical electrical performance, mechanical fit, and environmental protection ratings.

Parameter Comparison

Engineering Selection Recommendations

Both the M22N-BN-TYA-YB and M22N-BC-TYA-YB are active products manufactured by Omron Automation and Safety. Both parts carry RoHS compliance certification and are suitable for industrial control applications requiring IP66 and NEMA 4X/13 environmental protection. Selection between these parts should be based on connector type availability and project-specific wiring requirements. The M22N-BC-TYA-YB currently has higher inventory availability at 1183 units compared to 934 units for the M22N-BN-TYA-YB.

Frequently Asked Questions (FAQ)

Q: Can M22N-BC-TYA-YB be used as a direct replacement for M22N-BN-TYA-YB?

A: Yes. Both parts are electrically and mechanically equivalent. The difference is the connector type (BN versus BC). Substitution is valid provided the connector type is compatible with your panel wiring and installation method.

Q: What does the connector designation (BN vs. BC) indicate?

A: The connector designation specifies the termination style for the LED indicator. BN and BC represent different connector types within the M22N series. Verify your panel's connector compatibility before substitution.

Q: Are both parts RoHS compliant?

A: Yes. Both M22N-BN-TYA-YB and M22N-BC-TYA-YB are RoHS compliant and suitable for applications requiring environmental and regulatory compliance.

Q: Do both parts have the same ingress protection rating?

A: Yes. Both parts are rated IP66, NEMA 4X, and 13, providing equivalent environmental protection for harsh industrial environments.

Q: What is the panel cutout requirement for installation?

A: Both parts require a round panel cutout of 0.88 inches (22.30mm) in diameter. Ensure your panel drilling matches this specification for proper fit.

Q: Can these parts be used in AC and DC circuits?

A: Yes. Both parts are rated for 12V AC/DC operation at 12mA, allowing use in either AC or DC powered control systems.
