M22-6053005 Equivalent & Substitute Parts

Part Overview

The M22-6053005 is a 60-position stackthrough PC/104 Plus backplane connector manufactured by Harwin Inc. This through-hole component features press-fit termination and gold-plated contacts rated for 1A at 12V. The part is classified as obsolete, necessitating identification of active equivalent components for new designs and ongoing production requirements. Substitute parts must maintain functional compatibility within PC/104 Plus form factor specifications while accommodating design constraints.

Substiute Parts

M22-6053005

Harwin Inc.In Stock: 1104M22-6053005 Datasheet

Current PartRFQ

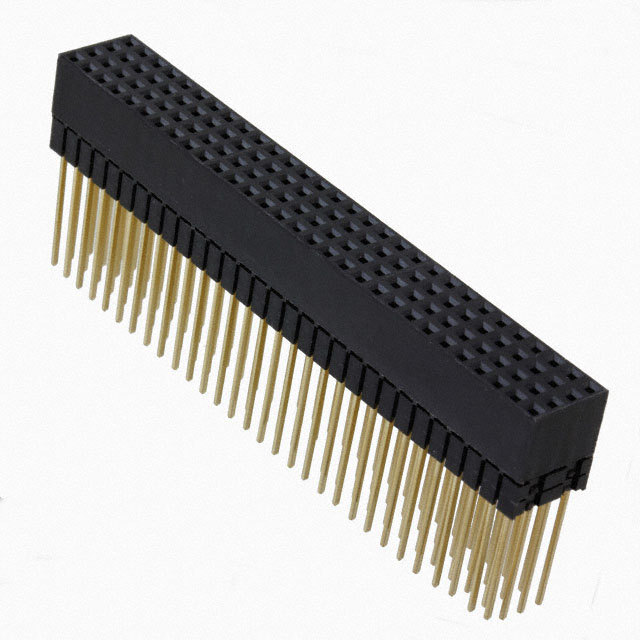

M22-6003005

Harwin Inc.In Stock: 1189M22-6003005 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The M22-6003005 is identified as a manufacturer-recommended substitute for the M22-6053005. Substitution compatibility is determined by the following parameters:

Shared Compatibility Parameters:

• Manufacturer: Harwin Inc. (same manufacturer ensures design continuity)
• Connector Style: PC/104 Plus (maintains form factor compatibility)
• Pitch: 0.079" (2.00mm) (identical contact spacing)
• Mounting Type: Through Hole (same PCB integration method)
• Contact Finish: Gold (equivalent electrical properties)
• Current Rating: 1A (identical current capacity)
• Color: Black (consistent mechanical appearance)
• RoHS Status: ROHS3 Compliant (equivalent environmental compliance)
• MSL Rating: 1 (Unlimited) (identical moisture sensitivity)

Differences Affecting Application:

• Number of Positions: 60 vs. 120 (substitute provides increased connectivity)
• Number of Rows: 2 vs. 4 (different physical layout)
• Termination: Press-Fit vs. Solder (different assembly method)
• Product Status: Obsolete vs. Active (substitute is in active production)
• Operating Temperature: Not specified vs. -55°C ~ 105°C (substitute provides defined thermal range)

Parameter Comparison

Engineering Selection Recommendations

The M22-6003005 is the active production equivalent for the obsolete M22-6053005. Both components maintain ROHS3 compliance and identical electrical ratings (1A, gold contact finish). The substitute is manufactured by the same supplier, ensuring design consistency and supply chain continuity.

Key selection considerations:

Position Count: The M22-6003005 provides 120 positions compared to the original 60 positions. PCB layout must accommodate the increased connector footprint and 4-row configuration versus the original 2-row layout.

Termination Method: The substitute uses solder termination instead of press-fit. Assembly processes and PCB design must be adapted accordingly. Solder termination is standard for production environments and provides robust mechanical attachment.

Thermal Range: The M22-6003005 specifies -55°C ~ 105°C operating temperature, providing defined thermal performance parameters absent from the original part specification.

Production Status: Active production status of the M22-6003005 ensures long-term availability and supply reliability for new designs and production runs.

Frequently Asked Questions (FAQ)

Q: Can the M22-6003005 be used as a direct pin-for-pin replacement for the M22-6053005?

A: No. The M22-6003005 has 120 positions in a 4-row configuration compared to the M22-6053005's 60 positions in a 2-row configuration. PCB layout and connector footprint must be redesigned to accommodate the larger connector.

Q: What is the primary difference in termination between these parts?

A: The M22-6053005 uses press-fit termination, while the M22-6003005 uses solder termination. Solder termination requires different assembly equipment and PCB design considerations, including solder pad specifications and thermal profiling.

Q: Are both connectors compatible with PC/104 Plus specifications?

A: Yes. Both components conform to PC/104 Plus form factor standards with identical 0.079" (2.00mm) pitch and through-hole mounting.

Q: What are the electrical rating differences?

A: Both connectors are rated for 1A current capacity. The M22-6053005 specifies 12V voltage rating, while the M22-6003005 does not specify a voltage rating in the provided data. Both use gold contact finish for equivalent electrical performance.

Q: Is the M22-6003005 suitable for applications requiring the original 60-position configuration?

A: The M22-6003005 provides 120 positions, which exceeds the original 60-position requirement. Applications requiring exactly 60 positions must evaluate whether the additional positions create design constraints or can be utilized for expanded functionality.

Q: What compliance certifications apply to both parts?

A: Both components are ROHS3 compliant and carry MSL Rating 1 (Unlimited), indicating no moisture sensitivity limitations. Both are classified as REACH Unaffected and EAR99 for export purposes.
