M22-3022200 Equivalent & Substitute Parts

Part Overview

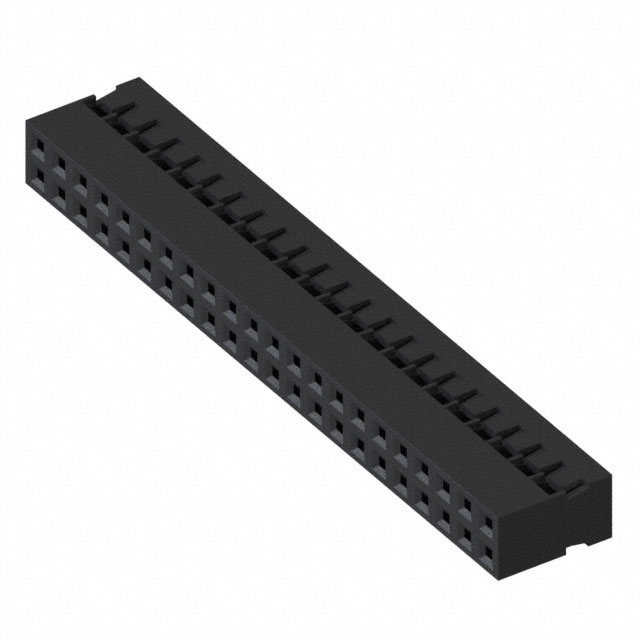

The M22-3022200 is a 44-position rectangular connector housing manufactured by Harwin Inc., designed for applications requiring 2.00mm pitch receptacle connections with crimp termination. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and support ongoing production requirements. The part features a black thermoplastic housing rated for -25°C to 85°C operation and is RoHS3 compliant.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	44
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Insulation Material	Thermoplastic
Operating Temperature Range	-25°C ~ 85°C
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the M22-3022200 is determined by strict equivalence across the following critical parameters:

Connector Type & Contact Configuration: Receptacle housing with female socket contacts
Position Count & Pitch: 44 positions at 0.079" (2.00mm) pitch
Physical Layout: 2-row configuration with 0.079" (2.00mm) row spacing
Termination Method: Crimp contact termination
Mounting Configuration: Free hanging in-line mounting
Environmental Compliance: RoHS compliance and MSL rating

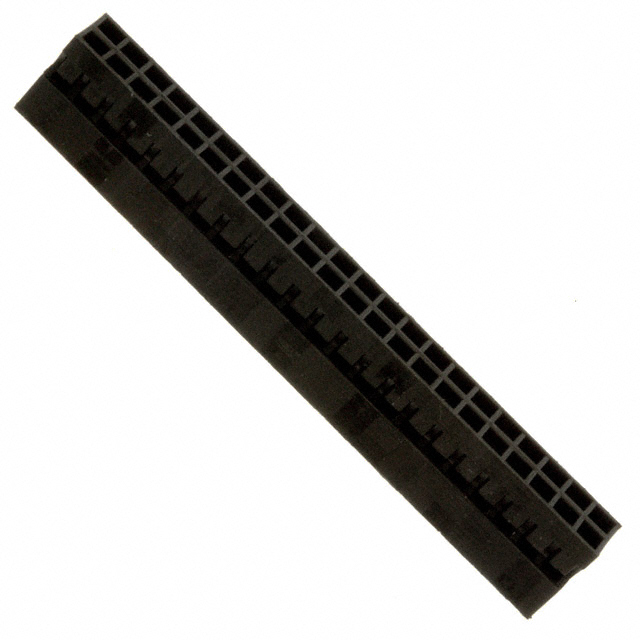

The substitute part 69307-044LF manufactured by Amphenol ICC (FCI) meets all these critical parameters. While the substitute features an enhanced operating temperature range (-40°C to 105°C) and polyamide insulation material compared to the original thermoplastic, these represent functional improvements that maintain backward compatibility for the M22-3022200 application space.

Parameter Comparison

Parameter	M22-3022200 (Harwin)	69307-044LF (Amphenol ICC)
Connector Type	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket
Number of Positions	44	44
Pitch	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp
Color	Black	Black
Operating Temperature Range	-25°C ~ 85°C	-40°C ~ 105°C
RoHS Status	ROHS3 Compliant	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active

Engineering Selection Recommendations

The 69307-044LF from Amphenol ICC (FCI) is the qualified substitute for the obsolete M22-3022200. Selection is based on:

Functional Equivalence: Identical connector type, position count, pitch, row configuration, and termination method
Active Product Status: The substitute maintains active manufacturing status, ensuring long-term availability and supply chain reliability
Compliance Alignment: Both parts maintain RoHS compliance and MSL 1 rating, with the substitute meeting current RoHS standards
Enhanced Operating Range: The substitute's extended temperature capability (-40°C to 105°C versus -25°C to 85°C) provides additional margin for demanding applications
Material Upgrade: Polyamide (PA66) insulation in the substitute offers improved mechanical and thermal properties compared to thermoplastic

Frequently Asked Questions (FAQ)

Q: Can the 69307-044LF directly replace the M22-3022200 in existing designs?

A: Yes. Both parts share identical connector type, position count, pitch, row spacing, mounting configuration, and crimp termination. The substitute is mechanically and electrically compatible for all applications where the M22-3022200 was specified.

Q: What is the significance of the different insulation materials?

A: The M22-3022200 uses thermoplastic insulation, while the 69307-044LF uses polyamide (PA66). Polyamide provides superior mechanical strength, thermal stability, and chemical resistance. This represents a material enhancement that maintains backward compatibility.

Q: Does the extended operating temperature range of the substitute affect compatibility?

A: No. The substitute's operating range of -40°C to 105°C encompasses the original part's -25°C to 85°C specification. Applications designed for the original part will operate within the substitute's rated envelope.

Q: Are there packaging differences between these parts?

A: The M22-3022200 is listed with unspecified packaging, while the 69307-044LF is supplied in bulk packaging. Confirm packaging requirements with your procurement team based on assembly process needs.

Q: What is the significance of the different HTSUS codes?

A: HTSUS codes reflect tariff classification and do not affect functional compatibility. The different codes reflect manufacturer classification practices and may impact import duties depending on origin and destination.

Q: Are both parts RoHS compliant?

A: Yes. The M22-3022200 is ROHS3 compliant, and the 69307-044LF is RoHS compliant. Both meet current environmental regulations for restricted substances.
