M22-2730705 Equivalent & Substitute Parts

Part Overview

The M22-2730705 is a rectangular connector header manufactured by Harwin Inc., designed for 2mm pitch board-to-board connections with 7 positions. This component is classified as Obsolete, which necessitates identification of functionally equivalent alternatives for ongoing design and procurement requirements. The part is ROHS3 compliant and carries an MSL rating of 1 (Unlimited), indicating suitability for standard storage and handling conditions.

Substiute Parts

M22-2730705

Harwin Inc.In Stock: 1178M22-2730705 Datasheet

Current PartRFQ

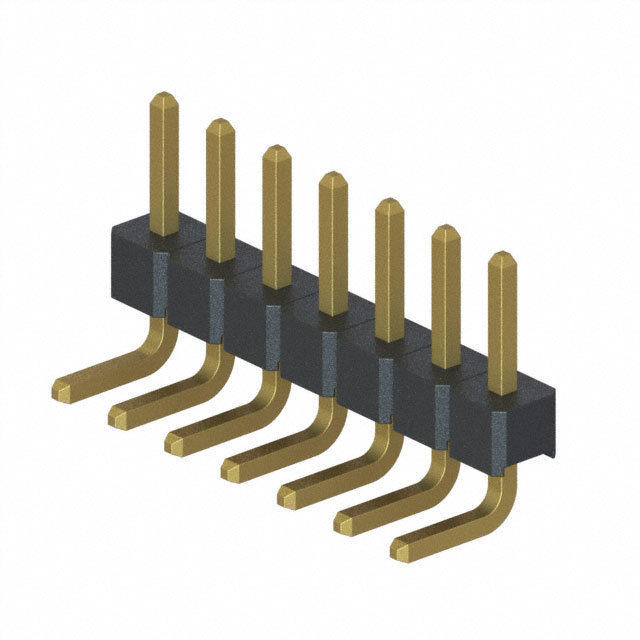

M22-2530705

Harwin Inc.In Stock: 2921M22-2530705 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The M22-2530705 qualifies as a manufacturer-recommended substitute for the M22-2730705 based on the following critical parameters:

• Series Alignment: Both components belong to the M22 series from Harwin Inc.
• Pitch Specification: Both maintain 0.079" (2.00mm) mating pitch
• Position Count: Both feature 7-position configurations
• Compliance Standards: Both are ROHS3 compliant and carry identical MSL ratings of 1 (Unlimited)
• Regulatory Classification: Both share identical ECCN (EAR99) and HTSUS (8536.69.4040) codes

The primary distinction is that M22-2530705 is Active in product status, whereas M22-2730705 is Obsolete. The substitute part is available in higher inventory quantities and represents the current production equivalent within the M22 connector family.

Parameter Comparison

Engineering Selection Recommendations

The M22-2530705 is the designated manufacturer substitute for the obsolete M22-2730705. Both components maintain identical electrical and mechanical specifications across all critical parameters: pitch, position count, contact material, insulation properties, temperature rating, and current capacity. Both parts satisfy ROHS3 compliance and carry unrestricted MSL ratings suitable for standard manufacturing environments.

The M22-2530705 is currently in Active product status with confirmed inventory availability (2834 pcs), whereas the M22-2730705 is Obsolete. For new designs or component replenishment, the M22-2530705 is the appropriate selection. The primary design consideration is the Right Angle mounting orientation of the substitute part, which differs from the straight-through configuration of the original part. PCB layout and mechanical clearance must be evaluated accordingly.
