M22-2011605 Equivalent & Substitute Parts

Part Overview

The M22-2011605 is a rectangular connector header manufactured by Harwin Inc., designed for through-hole board-to-board applications with 16 positions at 0.079" (2.00mm) pitch. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement. The connector features a cuttable header design with unshrouded, single-row configuration and solder termination suitable for applications requiring 1A per contact current capacity.

Key Parameters

Parameter	M22-2011605 Value
Manufacturer	Harwin Inc.
Number of Positions	16
Pitch - Mating	0.079" (2.00mm)
Connector Type	Header, Cuttable
Contact Type	Male Pin
Mounting Type	Through Hole
Termination	Solder
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA6T), Nylon 6T
Operating Temperature	-55°C ~ 105°C
Current Rating	1A per Contact
Contact Finish - Mating	Gold
RoHS Status	ROHS3 Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the M22-2011605 is determined by the following critical parameters:

Number of Positions: 16 positions (fixed requirement)
Pitch - Mating: 0.079" (2.00mm) (fixed requirement)
Connector Type: Header configuration
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Contact Material: Phosphor Bronze
Operating Temperature Range: Minimum -55°C ~ 105°C
Current Rating: Minimum 1A per Contact
RoHS Compliance: ROHS3 Compliant

Substitute parts are grouped into two categories:

Category 1: Direct Harwin Equivalent

M22-2011646: Active product status variant with identical mechanical and electrical specifications, differing only in contact finish (Tin vs. Gold) and packaging format.

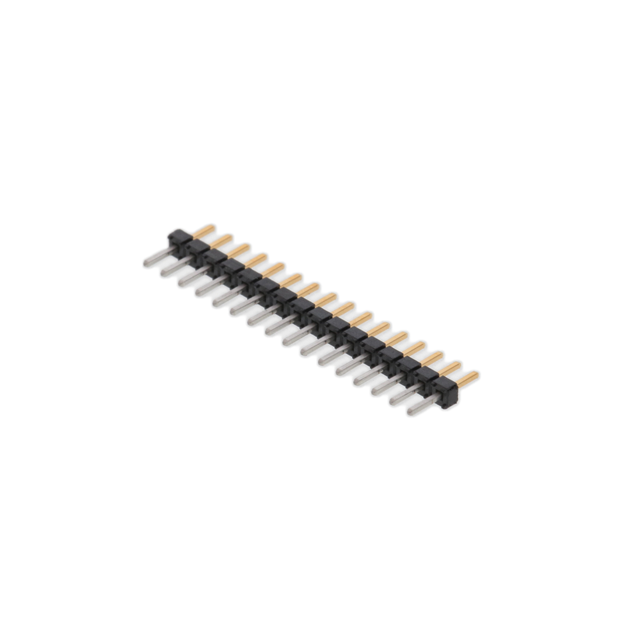

Category 2: Samtec TMM Series Headers

TMM-116-01-F-S, TMM-116-01-L-S, TMM-116-01-LM-S-016, TMM-116-06-G-S, TMM-116-06-L-S, TMM-116-06-S-S, TMM-116-06-T-S: All meet the 16-position, 2.00mm pitch, through-hole solder termination requirements with enhanced current rating (3.2A per Contact) and extended operating temperature range (-55°C ~ 125°C). These parts use Liquid Crystal Polymer (LCP) insulation instead of Nylon 6T.

Category 3: Samtec TW Series Spacer Connectors

TW-16-02-L-S-160-100, TW-16-07-G-S-160-355: Board stacking connectors with 16 positions at 2.00mm pitch, designed for applications requiring vertical stacking with specific stack heights and tail lengths.

Parameter Comparison

Parameter	M22-2011605	M22-2011646	TMM-116-01-F-S	TMM-116-06-G-S	TW-16-07-G-S-160-355
Manufacturer	Harwin Inc.	Harwin Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.
Number of Positions	16	16	16	16	16
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Connector Type	Header, Cuttable	Header, Cuttable	Header	Header	Header Spacer
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Not Specified
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	Not Specified
Current Rating	1A per Contact	1A per Contact	3.2A per Contact	3.2A per Contact	Not Specified
Contact Finish - Mating	Gold	Tin	Gold	Gold	Gold
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Active	Active

Engineering Selection Recommendations

For Direct Replacement (Identical Specifications): Select M22-2011646 as the primary substitute. This part maintains full compatibility with M22-2011605 designs, offering active product status and continued manufacturer support. The only difference is contact finish (Tin vs. Gold), which does not affect electrical performance for standard applications. This part is recommended for designs where form factor and mechanical compatibility are critical.

For Enhanced Performance Applications: Samtec TMM-116 series parts (TMM-116-01-F-S, TMM-116-06-G-S, TMM-116-06-L-S, TMM-116-06-S-S, TMM-116-06-T-S) provide superior current handling (3.2A per Contact vs. 1A) and extended operating temperature range (-55°C ~ 125°C vs. -55°C ~ 105°C). These parts are suitable for applications requiring higher current capacity or operation at elevated temperatures. LCP insulation material offers improved thermal and chemical resistance compared to Nylon 6T.

For Board Stacking Applications: Samtec TW-16 series spacer connectors (TW-16-02-L-S-160-100, TW-16-07-G-S-160-355) are designed for multi-board stacking configurations with defined stack heights and tail lengths. Select based on specific stacking height and tail length requirements of the application.

Compliance Considerations: All substitute parts maintain ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating, ensuring compatibility with standard manufacturing and storage practices.

Frequently Asked Questions (FAQ)

Q: Can M22-2011646 be used as a direct replacement for M22-2011605? A: Yes. M22-2011646 is mechanically and electrically compatible with M22-2011605. Both parts share identical pitch (0.079" / 2.00mm), position count (16), contact material (Phosphor Bronze), operating temperature range (-55°C ~ 105°C), and current rating (1A per Contact). The primary difference is contact finish (Tin vs. Gold) and active product status.

Q: What are the advantages of Samtec TMM-116 series over the Harwin M22 series? A: Samtec TMM-116 parts offer higher current capacity (3.2A per Contact vs. 1A per Contact) and extended operating temperature range (-55°C ~ 125°C vs. -55°C ~ 105°C). These parts use LCP insulation, which provides superior thermal stability and chemical resistance. However, they use different insulation material (LCP vs. Nylon 6T), which may affect mechanical fit in applications with tight tolerances.

Q: Are there differences between TMM-116-01-F-S, TMM-116-01-L-S, and TMM-116-06-G-S? A: Yes. TMM-116-01-F-S and TMM-116-01-L-S differ in contact finish thickness on the mating surface (3.00µin vs. 10.0µin Gold). TMM-116-06-G-S has longer contact posts (0.192" vs. 0.138") and higher mating surface gold thickness (20.0µin). Select based on specific contact length and finish thickness requirements.

Q: When should TW-16 spacer connectors be used instead of standard headers? A: TW-16 spacer connectors are designed for applications requiring vertical board stacking with defined spacing. Use these parts when multiple PCBs must be stacked with specific gap heights. Standard headers (M22-2011605, M22-2011646, TMM-116 series) are for single-board or direct board-to-board connections without stacking requirements.

Q: Are all substitute parts RoHS3 compliant? A: Yes. All substitute parts listed (M22-2011646, TMM-116 series, TW-16 series) are ROHS3 compliant and suitable for applications requiring RoHS compliance.

Q: What is the difference between contact finish options in TMM-116 parts? A: Contact finish options vary by part number suffix. Gold finishes (F, L, G, S variants) provide superior corrosion resistance and lower contact resistance. Tin finishes (T variant) offer cost reduction but may have slightly higher contact resistance. Select based on application requirements for reliability and cost optimization.
