M2113TFW02 Equivalent & Substitute Parts

Part Overview

The M2113TFW02 is a toggle switch manufactured by NKK Switches, classified as SPDT (Single Pole Double Throw) with panel mount configuration. This component features illuminated operation with green LED indication and is rated for 6A at 125V AC or 3A at 30V DC. The product is currently obsolete, making identification of equivalent and substitute parts essential for system maintenance, repair, and legacy equipment support.

Substiute Parts

M2113TFW02

NKK SwitchesIn Stock: 921M2113TFW02 Datasheet

Current PartRFQ

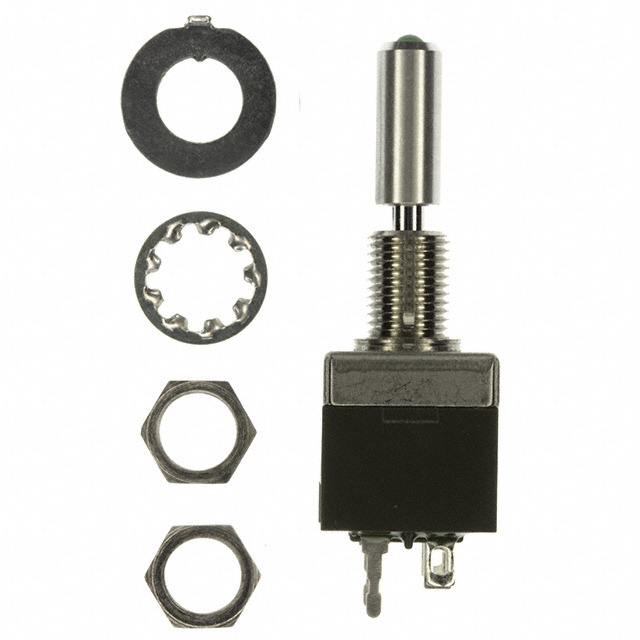

M2113TFW01

NKK SwitchesIn Stock: 1091M2113TFW01 Datasheet

MFR RecommendedRFQ

7103L1PCWZ3BE

C&KIn Stock: 7557103L1PCWZ3BE Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M2113TFW02 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration (SPDT)
• Switch function (On-Off-On)
• Mounting type (Panel Mount)
• Panel cutout dimensions (Circular - 6.50mm Dia)
• Bushing thread specification (1/4-40)
• Termination style compatibility

Electrical Compatibility Criteria:

• Current rating must meet or exceed application requirements
• Voltage rating must meet or exceed application requirements
• Operating temperature range must encompass application environment

Secondary Considerations:

• Illumination type and voltage (if required by application)
• Electrical life cycle rating
• Regulatory compliance (RoHS, REACH)

Parameter Comparison

Engineering Selection Recommendations

M2113TFW01 (MFR Recommended Substitute): This part is the manufacturer-recommended equivalent from NKK Switches. It maintains identical electrical ratings (6A at 125V AC, 3A at 30V DC), circuit configuration (SPDT), and illumination specifications (green LED at 2.2 VDC). The primary difference is termination style: M2113TFW01 uses solder lug termination versus quick connect on the M2113TFW02. Both parts share the same panel cutout dimensions (6.50mm), bushing thread (1/4-40), and operating temperature range (-10°C to 55°C). Both are ROHS3 compliant and obsolete. Selection of M2113TFW01 requires compatibility with solder lug termination in the application circuit.

7103L1PCWZ3BE (Similar Substitute): This C&K part provides SPDT on-off-on functionality with panel mount configuration and matching bushing thread (1/4-40). However, electrical ratings are significantly reduced: 0.4VA at both AC and DC versus 6A/3A on the M2113TFW02, with voltage ratings of 20V AC/DC versus 125V/30V. The 7103L1PCWZ3BE is non-illuminated, eliminating the green LED feature. Panel cutout diameter is 6.35mm (versus 6.50mm), requiring minor mechanical adjustment. This part is active status with extended operating temperature range (-30°C to 85°C) and higher electrical life (40,000 cycles). Selection of 7103L1PCWZ3BE is limited to low-power applications with reduced voltage and current requirements and where illumination is not required.

Frequently Asked Questions (FAQ)

Q: Can M2113TFW01 be used as a direct replacement for M2113TFW02?

A: M2113TFW01 is electrically and functionally equivalent with identical current ratings (6A AC, 3A DC), voltage ratings (125V AC, 30V DC), circuit configuration (SPDT), and illumination (green LED at 2.2 VDC). The difference is termination style: M2113TFW01 uses solder lug while M2113TFW02 uses quick connect. Direct substitution requires compatibility with solder lug termination in your circuit design.

Q: Is 7103L1PCWZ3BE suitable for high-power applications?

A: No. The 7103L1PCWZ3BE is rated for 0.4VA at both AC and DC, significantly lower than the M2113TFW02 (6A at 125V AC, 3A at 30V DC). This part is suitable only for low-power signal switching applications. High-power applications require parts with equivalent or higher current and voltage ratings.

Q: What are the mechanical compatibility considerations?

A: All three parts use 1/4-40 bushing thread and panel mount configuration. Panel cutout diameter differs slightly: M2113TFW02 and M2113TFW01 require 6.50mm, while 7103L1PCWZ3BE requires 6.35mm. Termination style also differs: M2113TFW02 uses quick connect (0.062"), M2113TFW01 uses solder lug, and 7103L1PCWZ3BE uses quick connect (0.062").

Q: Does 7103L1PCWZ3BE provide illumination?

A: No. The 7103L1PCWZ3BE is non-illuminated. If illumination is required for your application, this part is not suitable. M2113TFW01 maintains the green LED illumination at 2.2 VDC found on the M2113TFW02.

Q: What is the operating temperature difference between these parts?

A: M2113TFW02 and M2113TFW01 operate from -10°C to 55°C. The 7103L1PCWZ3BE operates from -30°C to 85°C, providing extended low-temperature and high-temperature capability. Selection depends on application environment requirements.

Q: Are all three parts RoHS compliant?

A: Yes. M2113TFW02, M2113TFW01, and 7103L1PCWZ3BE are all ROHS3 compliant. M2113TFW02 and M2113TFW01 are REACH unaffected, while 7103L1PCWZ3BE is REACH affected.
