M2113TCW01 Equivalent & Substitute Parts

Part Overview

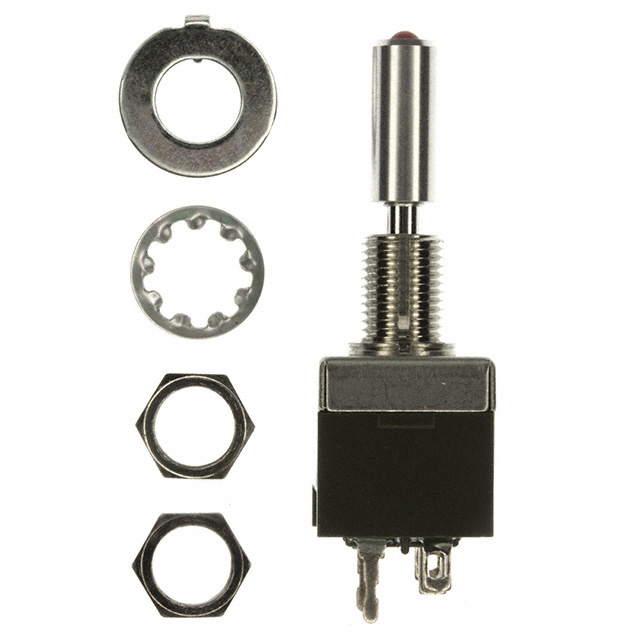

The M2113TCW01 is an illuminated toggle switch manufactured by NKK Switches, configured as a SPDT (Single Pole Double Throw) panel mount component with On-Off-On switching function. This part is classified as obsolete, making identification of equivalent substitute components necessary for ongoing maintenance, repair, and new design applications where this specific model is no longer available through standard distribution channels.

Substiute Parts

M2113TCW01

NKK SwitchesIn Stock: 1103M2113TCW01 Datasheet

Current PartRFQ

MNL13TCW01

NKK SwitchesIn Stock: 802MNL13TCW01 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the M2113TCW01 is determined by the following critical parameters:

• Circuit configuration (SPDT)
• Switch function (On-Off-On)
• Current and voltage ratings (6A AC / 3A DC; 125V AC / 30V DC)
• Mounting type (Panel Mount)
• Illumination specification (LED, Red, 2.2 VDC)
• Termination style (Solder Lug)
• Panel cutout dimensions (Circular - 6.50mm Dia)
• Bushing thread specification (1/4-40)

The substitute part MNL13TCW01 is identified as a manufacturer-recommended equivalent based on compatibility with these core electrical and mechanical parameters.

Parameter Comparison

Engineering Selection Recommendations

The M2113TCW01 is designated as obsolete by the manufacturer. The MNL13TCW01 is identified as the manufacturer-recommended substitute and carries active product status, ensuring ongoing availability and support. Both components maintain ROHS3 compliance and share identical HTSUS and ECCN classifications, confirming regulatory alignment for component substitution in existing applications.

Selection of MNL13TCW01 as a replacement for M2113TCW01 is supported by manufacturer designation and active inventory status, providing continuity for applications requiring this toggle switch configuration.

Frequently Asked Questions (FAQ)

Q: Why is the M2113TCW01 being phased out? A: The M2113TCW01 is classified as obsolete by NKK Switches. Manufacturer-recommended substitutes ensure continued availability for applications requiring this switch type.

Q: What makes MNL13TCW01 a suitable substitute for M2113TCW01? A: MNL13TCW01 is designated by NKK Switches as the manufacturer-recommended equivalent. Both components share the same HTSUS and ECCN classifications and maintain ROHS3 compliance.

Q: Are there packaging differences between M2113TCW01 and MNL13TCW01? A: M2113TCW01 is supplied in standard packaging, while MNL13TCW01 is available in bulk packaging. Packaging format does not affect electrical or mechanical compatibility.

Q: What are the critical parameters for toggle switch substitution? A: Circuit configuration (SPDT), switch function (On-Off-On), current ratings (6A AC / 3A DC), voltage ratings (125V AC / 30V DC), mounting type (Panel Mount), illumination specification, termination style, and panel cutout dimensions must align for direct substitution.

Q: Is MNL13TCW01 compliant with the same regulatory standards as M2113TCW01? A: Yes. Both components are ROHS3 compliant and share identical HTSUS (8536.50.9065) and ECCN (EAR99) classifications.
