M20-9743442 Equivalent & Substitute Parts

Part Overview

The M20-9743442 is a rectangular connector header manufactured by Harwin Inc., featuring a right-angle, through-hole design with 68 positions at 2.54mm pitch. This connector is classified as obsolete, making equivalent substitute parts necessary for ongoing design support and procurement. The part is suitable for board-to-board or cable applications requiring a cuttable header configuration with push-pull fastening and solder termination.

Key Parameters

Parameter	Value
Connector Type	Header, Cuttable
Pitch - Mating	0.100" (2.54mm)
Number of Positions	68
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Contact Type	Male Pin
Termination	Solder
Current Rating	3A per Contact
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the M20-9743442 is based on strict electrical and mechanical compatibility. All substitute parts must maintain the following core parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 68
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Mounting Type: Through Hole, Right Angle
Contact Type: Male Pin
Termination: Solder
Current Rating: 3A per Contact
Material Flammability Rating: UL94 V-0
Moisture Sensitivity Level: 1 (Unlimited)

Substitute parts are grouped by manufacturer and contact finish specifications. The Amphenol ICC (FCI) BERGSTIK® series parts (77317-103-68LF, 77317-104-68LF, 77317-403-68LF, 77317-404-68LF, 77317-803-68LF, 77317-804-68LF) are active products with extended operating temperature range (-65°C ~ 130°C) and breakaway connector type. The Sullins Connector Solutions part (PRPC034DBAN-M71RC) is also active and maintains compatibility with the original specifications.

Parameter Comparison

Parameter	M20-9743442	77317-103-68LF	77317-104-68LF	77317-403-68LF	77317-404-68LF	77317-803-68LF	77317-804-68LF	PRPC034DBAN-M71RC
Manufacturer	Harwin Inc.	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Sullins Connector Solutions
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	68	68	68	68	68	68	68	68
Number of Rows	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Contact Length - Mating	0.228" (5.80mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.118" (3.00mm)	0.100" (2.54mm)	0.120" (3.05mm)	0.100" (2.54mm)	0.120" (3.05mm)	0.100" (2.54mm)	0.120" (3.05mm)	0.120" (3.05mm)
Insulation Height	0.200" (5.08mm)	0.190" (4.83mm)	0.190" (4.83mm)	0.190" (4.83mm)	0.190" (4.83mm)	0.190" (4.83mm)	0.190" (4.83mm)	0.197" (5.00mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square
Current Rating	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact
Operating Temperature	-40°C ~ 105°C	-65°C ~ 130°C	-65°C ~ 130°C	-65°C ~ 130°C	-65°C ~ 130°C	-65°C ~ 130°C	-65°C ~ 130°C	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant

Engineering Selection Recommendations

All listed substitute parts are active products with full RoHS compliance and UL94 V-0 flammability ratings, making them suitable replacements for the obsolete M20-9743442.

The Amphenol ICC (FCI) BERGSTIK® series parts offer extended operating temperature range (-65°C ~ 130°C) compared to the original specification (-40°C ~ 105°C), providing enhanced thermal performance for demanding applications. These parts are available in both bag and bulk packaging options.

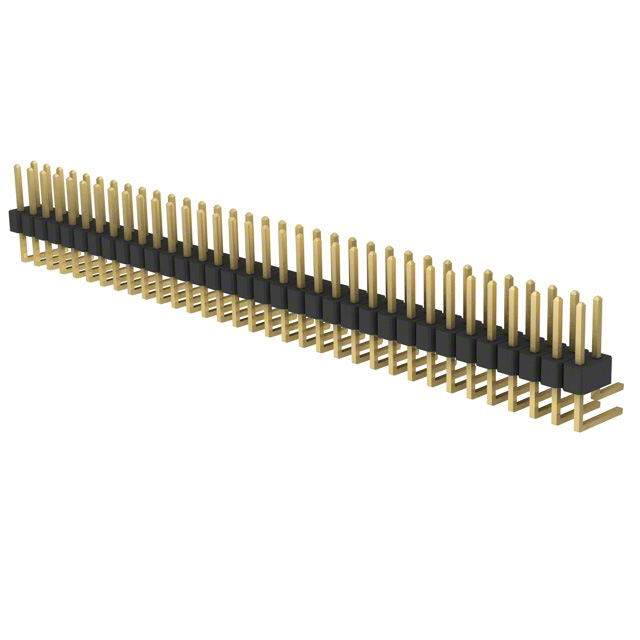

The Sullins Connector Solutions PRPC034DBAN-M71RC maintains the original operating temperature range (-40°C ~ 105°C) and offers compatibility with applications requiring identical thermal specifications. This part is supplied in bulk packaging.

Minor variations in contact length post (0.100", 0.120", or 0.118") and insulation height (0.190", 0.197", or 0.200") exist across substitute options. These dimensional differences are within acceptable tolerances for standard through-hole PCB applications and do not affect electrical performance or mating compatibility.

Frequently Asked Questions (FAQ)

Q: Can I use any of these substitute parts interchangeably with the M20-9743442?

A: Yes. All listed substitute parts maintain the critical mating parameters: 0.100" (2.54mm) pitch, 68 positions, 2 rows, and 0.100" row spacing. They are mechanically and electrically compatible for through-hole, right-angle board-to-board or cable applications.

Q: What is the difference between the Amphenol ICC parts with different suffixes (103, 104, 403, 404, 803, 804)?

A: The differences are in contact post length and contact finish specifications. Parts ending in 03 or 803 have 0.100" (2.54mm) post length, while 04 or 804 have 0.120" (3.05mm) post length. Contact finish varies between gold (GXT™ or standard) and tin. All maintain the same mating pitch and position count.

Q: Does the extended operating temperature range of the Amphenol parts affect compatibility?

A: No. The extended range (-65°C ~ 130°C) is a superset of the original specification (-40°C ~ 105°C). Parts rated for wider temperature ranges are fully compatible with applications designed for the original temperature limits.

Q: What packaging options are available?

A: Amphenol ICC parts are supplied in bag or bulk packaging. Sullins parts are supplied in bulk packaging. Packaging selection does not affect electrical or mechanical performance.

Q: Are there compliance differences between substitute options?

A: All parts are RoHS compliant. Amphenol ICC parts are RoHS Compliant, while the original M20-9743442 and Sullins PRPC034DBAN-M71RC are ROHS3 Compliant. Both compliance levels meet current regulatory requirements.
