M2044LL1W01 Equivalent & Substitute Parts

Part Overview

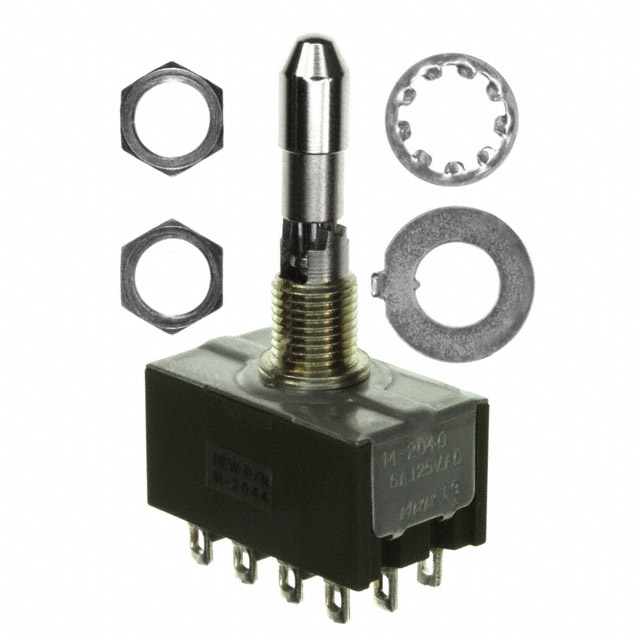

The M2044LL1W01 is a toggle switch manufactured by NKK Switches, classified as a DP3T (Double Pole Triple Throw) panel mount switch with a 6A AC / 3A DC current rating at 125V AC / 30V DC. This component features a locking lever actuator and solder lug termination, designed for on-on-on switching applications. The product is currently obsolete, making identification of functionally equivalent alternatives necessary for ongoing maintenance, repair, and new design applications where legacy component replacement is required.

Substiute Parts

M2044LL1W01

NKK SwitchesIn Stock: 816M2044LL1W01 Datasheet

Current PartRFQ

5644THAB3V

APEM Inc.In Stock: 9455644THAB3V Datasheet

SimilarRFQ

A432K12KZQ

ElectroswitchIn Stock: 760A432K12KZQ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M2044LL1W01 is determined by the following critical parameters: circuit configuration (DP3T or SP3T), current rating (minimum 6A AC), voltage rating (minimum 125V AC / 30V DC), mounting type (panel mount), actuator type (locking lever), termination style (solder lug), panel cutout dimensions (6.50mm circular), and bushing thread (1/4-40). All substitute parts must maintain compatibility with these electrical and mechanical specifications to ensure direct replacement capability.

Two substitute parts meet these criteria:

5644THAB3V (APEM Inc.): SP3T configuration with 6A AC / 4A DC rating at 125V AC / 30V DC. Functionally equivalent for applications requiring triple throw switching, with improved electrical life (50,000 cycles vs. 25,000 cycles) and extended operating temperature range (-40°C to 85°C).

A432K12KZQ (Electroswitch): DP3T configuration with 6A AC/DC rating at 125V AC / 28V DC. Maintains identical circuit configuration to the original part with enhanced electrical life (60,000 cycles) and extended operating temperature range (-30°C to 90°C).

Parameter Comparison

Engineering Selection Recommendations

A432K12KZQ (Electroswitch) is the primary substitute for direct replacement applications. This part maintains identical DP3T circuit configuration, matching the original M2044LL1W01 pole-throw specification. It meets or exceeds all electrical ratings (6A AC/DC at 125V AC / 28V DC), operates across an extended temperature range (-30°C to 90°C), and delivers superior electrical life (60,000 cycles). The part is currently in active production status with RoHS compliance certification.

5644THAB3V (APEM Inc.) serves as an alternative for applications where SP3T configuration is functionally acceptable. This part provides enhanced performance characteristics including higher DC current rating (4A vs. 3A), extended low-temperature operation (-40°C), and doubled electrical life (50,000 cycles). Selection of this substitute requires circuit-level verification that single-pole triple-throw operation meets application requirements.

Both substitute parts share identical mechanical interfaces (panel mount, 6.50mm cutout, 1/4-40 bushing thread, solder lug termination) and maintain compliance with applicable regulatory standards.

Frequently Asked Questions (FAQ)

Q: Can the 5644THAB3V (SP3T) directly replace the M2044LL1W01 (DP3T)?

A: The 5644THAB3V is functionally equivalent only if the application circuit does not require simultaneous switching of two independent poles. SP3T configuration provides single-pole triple-throw operation, while DP3T provides dual-pole triple-throw. Circuit schematic review is necessary to confirm compatibility.

Q: What is the significance of the panel cutout dimension difference in the A432K12KZQ?

A: The A432K12KZQ specification does not include panel cutout dimensions. Mechanical compatibility must be verified against the original 6.50mm circular cutout requirement before installation.

Q: Are all substitute parts RoHS compliant?

A: Yes. The 5644THAB3V carries ROHS3 certification. The A432K12KZQ carries RoHS certification. Both meet applicable environmental compliance requirements.

Q: How do electrical life ratings affect component selection?

A: The M2044LL1W01 is rated for 25,000 cycles. Both substitutes provide extended electrical life (50,000 and 60,000 cycles respectively), indicating improved durability and longer operational intervals between maintenance cycles.

Q: What is the impact of the 2V DC voltage rating difference in the A432K12KZQ?

A: The A432K12KZQ operates at 28V DC maximum versus the original 30V DC rating. This 2V reduction is within typical component tolerance margins for most industrial applications operating at standard 24V DC or lower.

Q: Are actuator length differences significant for panel mount applications?

A: Actuator length variations (16.50mm original vs. 15.10mm and 15.47mm substitutes) may affect ergonomic operation and visual alignment on control panels. Physical mockup or dimensional verification is recommended for applications with strict aesthetic or operational requirements.
