M2022LL2W13 Equivalent & Substitute Parts

Part Overview

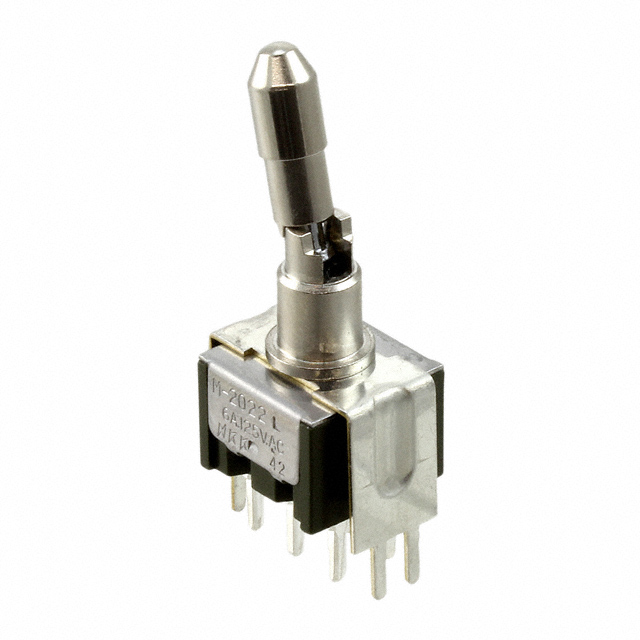

The M2022LL2W13 is a toggle switch manufactured by NKK Switches, configured as a DPDT (Double Pole Double Throw) through-hole component with a locking lever actuator. This switch is rated for 6A at 125V AC and 4A at 30V DC, featuring epoxy sealed terminals and a brass chrome-plated actuator. The product is currently obsolete, making identification of equivalent substitute parts essential for ongoing maintenance, repair, and legacy system support.

Substiute Parts

M2022LL2W13

NKK SwitchesIn Stock: 1196M2022LL2W13 Datasheet

Current PartRFQ

MN22LL2W13

NKK SwitchesIn Stock: 1212MN22LL2W13 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the M2022LL2W13 is determined by the following critical parameters:

• Circuit Configuration: DPDT topology must be maintained
• Switch Function: On-On operation required
• Current and Voltage Ratings: Minimum 6A at 125V AC; minimum 4A at 30V DC
• Mounting Type: Through hole configuration with PC pin termination
• Actuator Specifications: Locking lever with 16.50mm length
• Environmental Compliance: ROHS3 compliance and operating temperature range -30°C to 85°C

The substitute part MN22LL2W13 is identified as the manufacturer-recommended equivalent from NKK Switches. This part maintains the same base product lineage (M2022LL series) and is confirmed as an active product with current manufacturing support.

Parameter Comparison

Engineering Selection Recommendations

The MN22LL2W13 is the manufacturer-recommended substitute for the obsolete M2022LL2W13. Both components are manufactured by NKK Switches and share identical electrical specifications, circuit topology, and mechanical mounting characteristics. The substitute part is currently in active production status, ensuring availability and ongoing manufacturing support.

Both parts maintain ROHS3 compliance and carry the same ECCN and HTSUS classifications, confirming regulatory equivalence. The transition from the M-series to the MN-series designation reflects NKK Switches' product line evolution while preserving functional and electrical compatibility.

Frequently Asked Questions (FAQ)

Q: Can MN22LL2W13 be used as a direct replacement for M2022LL2W13?

A: Yes. Both components share identical DPDT circuit configuration, On-On switch function, current ratings (6A AC / 4A DC), voltage ratings (125V AC / 30V DC), through-hole mounting, PC pin termination, and operating temperature range (-30°C to 85°C).

Q: What is the difference between the M2022LL2W13 and MN22LL2W13?

A: The primary difference is product status. The M2022LL2W13 is obsolete, while the MN22LL2W13 is an active product from the same manufacturer. Electrical and mechanical specifications are equivalent.

Q: Are there any compliance differences between these parts?

A: No. Both parts are ROHS3 compliant and carry identical ECCN (EAR99) and HTSUS (8536.50.9065) classifications.

Q: What parameters must remain constant when selecting a substitute?

A: Circuit configuration (DPDT), switch function (On-On), current ratings (minimum 6A AC / 4A DC), voltage ratings (minimum 125V AC / 30V DC), mounting type (through hole), termination style (PC pin), and actuator type (locking lever) must all be maintained.

Q: Is the actuator length specification critical for substitution?

A: Yes. The 16.50mm locking lever actuator length is a key mechanical parameter that must be matched to ensure proper panel integration and operational clearance.
