NKK Switches M2022LL1W01-C Toggle Switch DPDT Equivalent & Substitute Parts

Part Overview

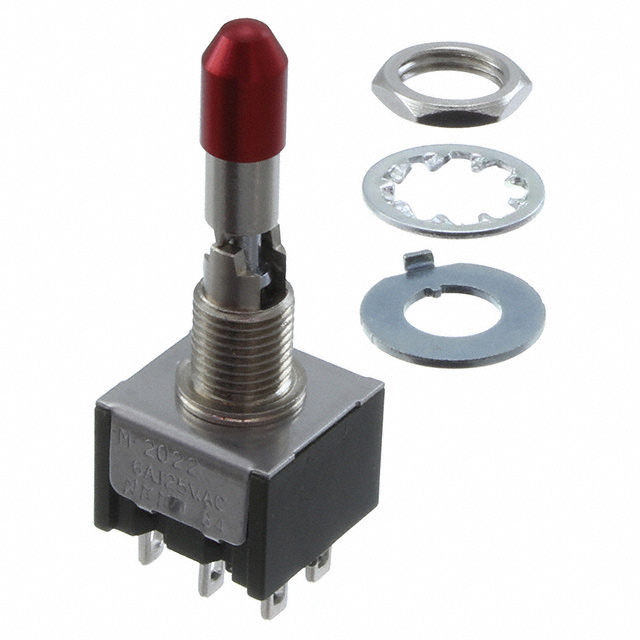

The NKK Switches M2022LL1W01-C is a panel-mount toggle switch with DPDT (Double Pole Double Throw) configuration rated for 6A at 125V AC and 4A at 30V DC. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement. The switch features a locking lever actuator with solder lug termination and operates across a temperature range of -30°C to 85°C. Substitutes must maintain DPDT circuit topology, panel-mount configuration, and compatible mechanical dimensions while meeting or exceeding electrical performance specifications.

Key Parameters

Parameter	M2022LL1W01-C
Manufacturer	NKK Switches
Circuit Configuration	DPDT
Switch Function	On-On
Current Rating (AC)	6A
Current Rating (DC)	4A
Voltage Rating (AC)	125V
Voltage Rating (DC)	30V
Mounting Type	Panel Mount
Actuator Type	Locking Lever
Actuator Length	16.50mm
Panel Cutout Diameter	6.50mm
Bushing Thread	1/4-40
Termination Style	Solder Lug
Operating Temperature	-30°C to 85°C
Electrical Life	25,000 Cycles
Product Status	Obsolete
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict adherence to the following parameters:

Mandatory Compatibility Parameters:

Circuit Configuration: DPDT (Double Pole Double Throw)
Switch Function: On-On
Mounting Type: Panel Mount
Termination Style: Solder Lug
Bushing Thread: 1/4-40
Operating Temperature Range: -30°C to 85°C (minimum)
Panel Cutout Diameter: 6.35mm to 6.50mm (mechanical fit tolerance)

Electrical Performance Criteria:

Current Rating (AC): Minimum 5A (acceptable reduction from 6A)
Voltage Rating (AC): Minimum 120V (acceptable reduction from 125V)
Voltage Rating (DC): Minimum 20V (acceptable reduction from 30V)

Compliance Requirements:

RoHS3 Compliant
ECCN: EAR99
HTSUS: 8536.50.9065

Substitute parts are grouped into two categories based on electrical performance: high-current variants (5A at 120V AC) and low-current variants (0.4VA at 20V AC/DC). Both categories maintain identical mechanical compatibility and circuit topology.

Parameter Comparison

Part Number	Manufacturer	Circuit	Current (AC)	Voltage (AC)	Voltage (DC)	Actuator Length (mm)	Panel Cutout (mm)	Electrical Life (Cycles)	Product Status	Ingress Protection
M2022LL1W01-C	NKK Switches	DPDT	6A	125V	30V	16.50	6.50	25,000	Obsolete	—
MN22LL1W01-C	NKK Switches	DPDT	—	—	—	—	—	—	Active	—
100DP1K1B25M1QEH	E-Switch	DPDT	5A	120V	28V	14.40	6.35	40,000	Active	—
100DP1K1B25M1REH	E-Switch	DPDT	0.4VA	20V	20V	14.40	6.35	40,000	Active	—
100DP1K2B25M1REH	E-Switch	DPDT	0.4VA	20V	20V	14.73	6.35	40,000	Active	—
7201K12CWZBE	C&K	DPDT	0.4VA	20V	20V	18.59	6.35	100,000	Active	IP67
7201K12CWZGE	C&K	DPDT	5A	120V	28V	18.59	6.35	100,000	Active	IP67
7201K12CWZQE	C&K	DPDT	5A	120V	28V	18.59	6.35	100,000	Active	IP67
7201K12ZBE	C&K	DPDT	0.4VA	20V	20V	18.59	6.35	100,000	Active	—
7201K12ZBE2	C&K	DPDT	0.4VA	20V	20V	18.59	6.35	100,000	Active	—
7201K12ZBE3	C&K	DPDT	0.4VA	20V	20V	18.59	6.35	100,000	Active	—

Engineering Selection Recommendations

Primary Recommendation: MN22LL1W01-C (NKK Switches)

The MN22LL1W01-C is the direct active equivalent from the original manufacturer. This part maintains the same base product lineage (M-series to MN-series transition) and is classified as Active product status, ensuring long-term availability and supply chain stability. Selection of this part eliminates cross-manufacturer compatibility concerns and maintains design continuity.

High-Current Applications (5A at 120V AC):

For applications requiring sustained current delivery at elevated voltage, the following parts are suitable:

100DP1K1B25M1QEH (E-Switch): Active status with 40,000-cycle electrical life
7201K12CWZGE (C&K): Active status with 100,000-cycle electrical life and IP67 ingress protection
7201K12CWZQE (C&K): Active status with 100,000-cycle electrical life and IP67 ingress protection

The C&K variants offer superior electrical life (100,000 cycles versus 40,000) and IP67 environmental sealing, suitable for applications requiring enhanced durability and moisture resistance.

Low-Current Applications (0.4VA at 20V AC/DC):

For signal-level switching applications, the following parts are suitable:

100DP1K1B25M1REH (E-Switch): Active status with 40,000-cycle electrical life
100DP1K2B25M1REH (E-Switch): Active status with 40,000-cycle electrical life and extended actuator length (14.73mm)
7201K12CWZBE (C&K): Active status with 100,000-cycle electrical life and IP67 ingress protection
7201K12ZBE (C&K): Active status with 100,000-cycle electrical life
7201K12ZBE2 (C&K): Active status with 100,000-cycle electrical life (Black Anodized)
7201K12ZBE3 (C&K): Active status with 100,000-cycle electrical life (Red Anodized)

All substitute parts maintain ROHS3 compliance and EAR99 export classification. Selection should prioritize Active product status parts to ensure procurement continuity and manufacturer support.

Frequently Asked Questions (FAQ)

Q: Can the M2022LL1W01-C be directly replaced with the MN22LL1W01-C?

A: Yes. The MN22LL1W01-C is the active equivalent from NKK Switches and represents the direct successor to the obsolete M2022LL1W01-C. Both parts share the same base product number lineage and maintain identical mechanical and electrical compatibility.

Q: What is the difference between high-current and low-current substitute variants?

A: High-current variants (5A at 120V AC) are suitable for power distribution and motor control applications. Low-current variants (0.4VA at 20V AC/DC) are designed for signal-level switching in low-power circuits. Selection depends on the application's electrical requirements. The original M2022LL1W01-C operates at 6A/125V AC, making high-current variants the closest electrical match.

Q: Are C&K 7201K12 series parts compatible with the original panel cutout?

A: Yes. The C&K 7201K12 series maintains a 6.35mm panel cutout diameter, which is within the mechanical tolerance of the original 6.50mm cutout. The 1/4-40 bushing thread is identical across all substitute parts. However, the C&K actuator length is 18.59mm compared to the original 16.50mm, which may affect panel aesthetics or clearance in confined spaces.

Q: What is the advantage of C&K parts over E-Switch alternatives?

A: C&K 7201K12 series parts offer 100,000-cycle electrical life compared to 40,000 cycles for E-Switch 100DP1 series. Additionally, certain C&K variants include IP67 ingress protection (dust tight, waterproof), providing enhanced environmental sealing. These features extend component lifespan and improve reliability in harsh operating conditions.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All substitute parts listed maintain ROHS3 compliance and are classified under ECCN EAR99 with identical HTSUS code 8536.50.9065, ensuring regulatory and export compliance equivalence.

Q: What packaging format should be specified for procurement?

A: The original M2022LL1W01-C is supplied in Bulk packaging. E-Switch 100DP1 series parts are supplied in Bulk packaging. C&K 7201K12 series parts are supplied in Tray packaging. Packaging format should be confirmed with the supplier to ensure compatibility with assembly processes.

Q: Can low-current C&K variants be used in applications originally designed for 6A at 125V?

A: No. Low-current variants (0.4VA at 20V) are not suitable for applications requiring 6A at 125V. These parts are designed for signal-level switching only. Use high-current variants (5A at 120V) for power applications, or verify that the application can operate at reduced electrical ratings before substitution.
