M2022LL1W01 Toggle Switch DPDT Equivalent & Substitute Parts

Part Overview

The M2022LL1W01 is a panel-mount toggle switch manufactured by NKK Switches with DPDT (Double Pole Double Throw) configuration rated for 6A at 125V AC and 4A at 30V DC. This component features a locking lever actuator, epoxy-sealed solder lug terminals, and operates across -30°C to 85°C. The part is classified as obsolete, making equivalent substitutes necessary for ongoing production and maintenance applications.

Substiute Parts

M2022LL1W01

NKK SwitchesIn Stock: 1531M2022LL1W01 Datasheet

Current PartRFQ

MN22LL1W01

NKK SwitchesIn Stock: 1116MN22LL1W01 Datasheet

MFR RecommendedRFQ

5646AB2V

APEM Inc.In Stock: 9105646AB2V Datasheet

SimilarRFQ

7201K2ZQE

C&KIn Stock: 356157201K2ZQE Datasheet

SimilarRFQ

A223K12KZQ

ElectroswitchIn Stock: 844A223K12KZQ Datasheet

SimilarRFQ

MTL206N

TE Connectivity ALCOSWITCH SwitchesIn Stock: 751MTL206N Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment with the following critical parameters:

• Circuit configuration (DPDT required)
• Switch function (On-On required)
• Current and voltage ratings (must meet or exceed AC 6A/125V and DC 4A/30V minimums)
• Mounting type (Panel Mount required)
• Actuator type (Locking Lever required)
• Termination style (Solder Lug required)
• Bushing thread specification (1/4-40 required)
• Panel cutout compatibility (6.35mm to 6.50mm acceptable)

All identified substitutes maintain DPDT configuration, On-On function, panel-mount design, locking lever actuation, and solder lug termination. Electrical ratings across all substitutes meet or exceed the original specification. Mechanical dimensions remain compatible with standard 1/4-40 panel installations.

Parameter Comparison

Engineering Selection Recommendations

MN22LL1W01 (NKK Switches) — Manufacturer-recommended substitute. Maintains identical electrical and mechanical specifications as the original M2022LL1W01. Active product status with ROHS3 compliance. Direct functional replacement with no design modifications required.

5646AB2V (APEM Inc.) — Active substitute with enhanced electrical life (50,000 cycles versus 25,000). Meets all voltage and current requirements. Extended operating temperature range (-40°C to 85°C). ROHS3 compliant. Suitable for applications requiring extended component lifespan.

7201K2ZQE (C&K) — Active substitute with highest electrical life rating (100,000 cycles). Meets minimum voltage and current specifications. ROHS3 compliant with REACH affected status. Suitable for high-cycle applications. Note: 5A AC rating is below original 6A specification; verify application requirements.

A223K12KZQ (Electroswitch) — Active substitute with enhanced DC current rating (6A). Meets all AC voltage and current requirements. Extended operating temperature range (-30°C to 90°C). RoHS compliant. Panel cutout dimensions not specified; verify mechanical fit before implementation.

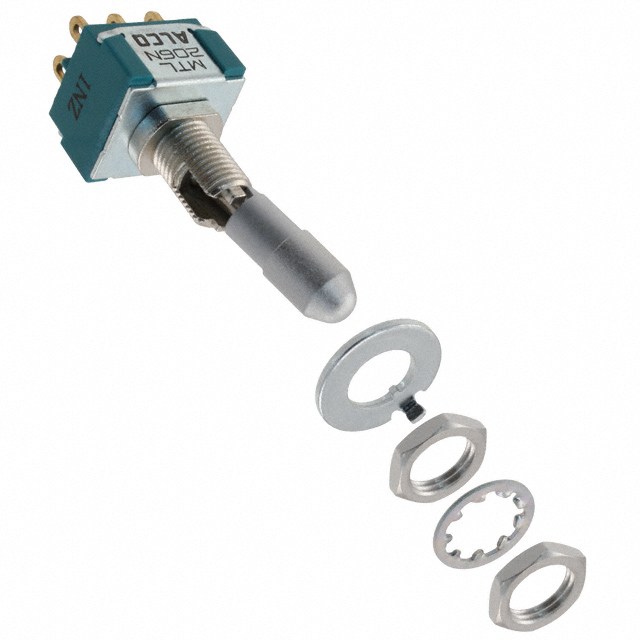

MTL206N (TE Connectivity ALCOSWITCH Switches) — Active substitute with enhanced electrical life (80,000 cycles). Meets all voltage and current requirements. ROHS3 compliant with REACH affected status. Operating temperature range (-20°C to 80°C) is narrower than original; verify application temperature requirements.

Frequently Asked Questions (FAQ)

Q: Can I use 7201K2ZQE as a direct replacement if my application operates at 6A AC?

A: No. The 7201K2ZQE is rated for 5A AC, which is below the original M2022LL1W01 specification of 6A AC. Use only if your actual application current does not exceed 5A AC.

Q: What is the difference between MN22LL1W01 and M2022LL1W01?

A: MN22LL1W01 is the active production equivalent with identical electrical and mechanical specifications. The primary difference is product status: M2022LL1W01 is obsolete while MN22LL1W01 is active.

Q: Are all substitutes compatible with 1/4-40 panel installations?

A: Yes. All listed substitutes feature 1/4-40 bushing threads. Panel cutout diameters range from 6.35mm to 6.50mm, which are mechanically compatible with standard 1/4-40 installations.

Q: Which substitute has the longest electrical life?

A: 7201K2ZQE offers 100,000 cycles, the highest among all substitutes. This is four times the original M2022LL1W01 specification of 25,000 cycles.

Q: Do all substitutes meet RoHS compliance?

A: Yes. All substitutes are RoHS compliant. Five are ROHS3 compliant; A223K12KZQ is RoHS compliant. All meet environmental regulatory requirements.

Q: What is the impact of different actuator lengths on panel mounting?

A: Actuator length variations (14.75mm to 17.88mm) do not affect panel mounting compatibility. These differences relate to operator feel and lever reach. Select based on ergonomic requirements for your application.

Q: Can I substitute A223K12KZQ if panel cutout dimensions are not specified?

A: A223K12KZQ can be used if your panel installation accommodates the standard 1/4-40 bushing thread. However, verify mechanical fit with the manufacturer before implementation, as panel cutout dimensions are not provided.
