M2015TJW01-GC-2A-C Equivalent & Substitute Parts

Part Overview

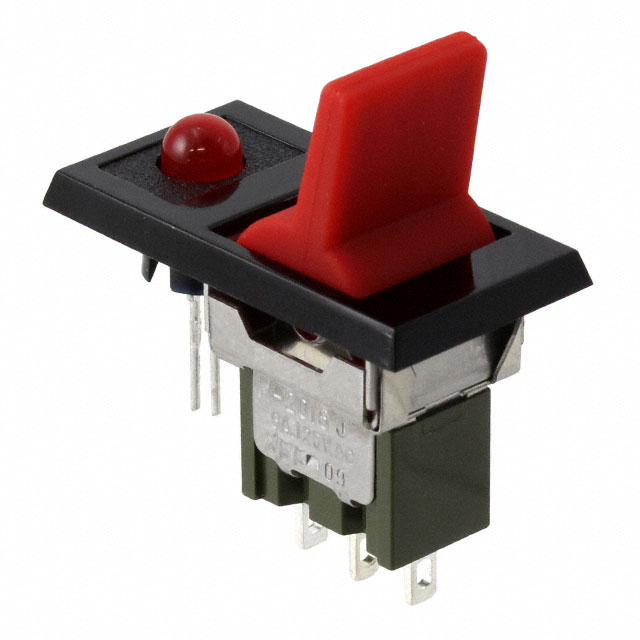

The M2015TJW01-GC-2A-C is a rocker switch manufactured by NKK Switches, classified as SPDT (Single Pole Double Throw) with on-momentary function. This illuminated paddle switch is rated for 6A AC at 125V and 3A DC at 30V, designed for panel mount snap-in installation with red LED illumination. The product is currently obsolete, making identification of functionally equivalent alternatives necessary for ongoing maintenance, repair, and system support applications.

Substiute Parts

M2015TJW01-GC-2A-C

NKK SwitchesIn Stock: 1034M2015TJW01-GC-2A-C Datasheet

Current PartRFQ

MN15TJW01-GC-2A-C

NKK SwitchesIn Stock: 953MN15TJW01-GC-2A-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M2015TJW01-GC-2A-C is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPDT)
• Switch function (On-Mom)
• Current ratings (6A AC / 3A DC minimum)
• Voltage ratings (125V AC / 30V DC minimum)
• Actuator type and color (Paddle - Illuminated, Red)
• Illumination specifications (LED, Red, 2.8 VDC)
• Mounting method (Panel Mount, Snap-In)
• Termination style (Solder Lug)
• Panel cutout dimensions (Rectangular - 15.90mm x 12.50mm)
• Operating temperature range (-30°C to 85°C)
• Regulatory compliance (CSA, UL approvals)

The substitute part MN15TJW01-GC-2A-C meets these criteria as an active product from the same manufacturer, ensuring functional and mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

The MN15TJW01-GC-2A-C is the direct equivalent substitute for the obsolete M2015TJW01-GC-2A-C. Both components are manufactured by NKK Switches and share identical electrical ratings, mechanical specifications, and regulatory certifications. The substitute part is currently in active production status, ensuring availability for replacement and new applications. Both parts maintain ROHS3 compliance and carry CSA and UL approvals, meeting the same regulatory requirements. The transition from the obsolete M-series to the active MN-series represents a manufacturer product line update with no functional or performance differences.

Frequently Asked Questions (FAQ)

Q: Can the MN15TJW01-GC-2A-C be used as a direct replacement for the M2015TJW01-GC-2A-C?

A: Yes. Both parts are electrically and mechanically identical. They share the same SPDT circuit configuration, 6A AC / 3A DC current ratings, 125V AC / 30V DC voltage ratings, red illuminated paddle actuator, LED illumination at 2.8 VDC, panel mount snap-in mounting, solder lug termination, and rectangular 15.90mm x 12.50mm panel cutout dimensions.

Q: What is the primary reason for substitution?

A: The M2015TJW01-GC-2A-C is obsolete. The MN15TJW01-GC-2A-C is the active equivalent from the same manufacturer, ensuring continued availability and support.

Q: Are the panel cutout dimensions identical?

A: Yes. Both parts require a rectangular panel cutout of 15.90mm x 12.50mm, ensuring mechanical compatibility in existing panel installations.

Q: Do both parts meet the same regulatory standards?

A: Yes. Both the M2015TJW01-GC-2A-C and MN15TJW01-GC-2A-C carry CSA and UL approvals and are ROHS3 compliant.

Q: Is the illumination voltage the same?

A: Yes. Both parts use red LED illumination at 2.8 VDC nominal voltage, ensuring identical circuit integration requirements.

Q: What is the operating temperature range for both parts?

A: Both parts operate across -30°C to 85°C, providing identical thermal performance specifications.
