M2012SD3G03 Toggle Switch SPDT Equivalent & Substitute Parts

Part Overview

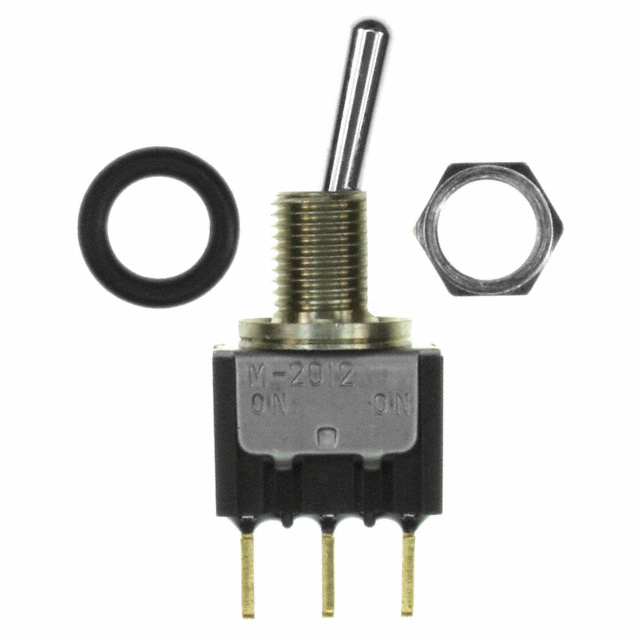

The M2012SD3G03 is an NKK Switches toggle switch with SPDT (Single Pole Double Throw) configuration, rated for 0.4VA at 28V AC/DC. This component features panel mount installation with PC pin termination and IP67 ingress protection. The part is classified as obsolete, making equivalent substitute parts necessary for ongoing system maintenance and new design implementations where this functionality is required.

Substiute Parts

M2012SD3G03

NKK SwitchesIn Stock: 785M2012SD3G03 Datasheet

Current PartRFQ

4-1825136-4

TE Connectivity ALCOSWITCH SwitchesIn Stock: 49744-1825136-4 Datasheet

SimilarRFQ

5236CDB

APEM Inc.In Stock: 7645236CDB Datasheet

SimilarRFQ

7101SCWCBE

C&KIn Stock: 10037101SCWCBE Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M2012SD3G03 is determined by the following critical parameters:

Mandatory Compatibility Parameters:

• Circuit configuration: SPDT
• Switch function: On-On
• Current rating: 0.4VA (AC/DC)
• Mounting type: Panel Mount
• Termination style: PC Pin
• Bushing thread: 1/4-40
• Actuator type: Standard Round

Allowable Variation Parameters:

• Voltage rating: Substitute parts must meet or exceed the 28V requirement
• Panel cutout diameter: Circular cutouts between 6.35mm and 6.50mm are mechanically compatible
• Actuator length: Variation within ±0.17mm is acceptable for standard round actuators
• Operating temperature: Substitute range must encompass or exceed -30°C ~ 85°C
• Electrical life: Substitute parts must meet or exceed 50,000 cycles
• Ingress protection: IP67 rating is preferred but not mandatory for substitution
• RoHS compliance: ROHS3 compliance is required

The three substitute parts listed below meet all mandatory parameters. Voltage rating differences require application-level verification to ensure system compatibility.

Parameter Comparison

Engineering Selection Recommendations

4-1825136-4 (TE Connectivity ALCOSWITCH Gemini A Series)

This substitute is electrically compatible with the M2012SD3G03 for applications operating at 20V or below. The part is ROHS3 compliant and currently in active production. However, the electrical life rating of 6,000 cycles is significantly lower than the original 50,000 cycles, making this option suitable only for low-cycle-count applications. The voltage rating reduction from 28V to 20V requires system-level verification.

5236CDB (APEM Inc. 5000 Series)

This substitute provides the closest functional match to the M2012SD3G03. Both parts share identical electrical life ratings (50,000 cycles), panel cutout dimensions (6.50mm), and actuator length (10.50mm). The operating temperature range extends to -40°C, exceeding the original specification. ROHS3 compliance is confirmed. The voltage rating is reduced to 20V, requiring application verification. This part is currently in active production.

7101SCWCBE (C&K 7000 Series)

This substitute offers the highest electrical life rating (100,000 cycles) and maintains IP67 ingress protection matching the original part. Mechanical compatibility is confirmed through identical bushing thread and compatible panel cutout diameter (6.35mm). However, this part is RoHS non-compliant, which may restrict use in regulated applications. The voltage rating is reduced to 20V. This part is currently in active production.

Frequently Asked Questions (FAQ)

Q: Can the M2012SD3G03 be directly replaced with any of these substitutes?

A: Direct replacement requires verification of system voltage requirements. All three substitutes are rated for 20V maximum, while the original part is rated for 28V. If your application operates at 20V or below, mechanical and electrical compatibility is confirmed. If your application requires 28V operation, none of these substitutes are suitable without circuit redesign.

Q: What is the impact of the voltage rating difference?

A: The M2012SD3G03 is rated for 28V AC/DC operation. The substitute parts are rated for 20V maximum. Operating a 20V-rated switch above its voltage specification creates risk of contact degradation and potential failure. Application voltage must be verified before substitution.

Q: How do the electrical life ratings compare?

A: The M2012SD3G03 and 5236CDB both specify 50,000 cycles. The 4-1825136-4 specifies only 6,000 cycles, suitable for low-cycle applications only. The 7101SCWCBE specifies 100,000 cycles, exceeding the original specification. Electrical life requirements should be evaluated against application duty cycle.

Q: Are there mechanical compatibility concerns?

A: Panel cutout diameter varies between 6.35mm and 6.50mm across the substitute parts. Both dimensions are compatible with standard 1/4-40 bushing threads. Actuator length variation is within acceptable tolerances for standard round actuators. Panel mounting compatibility is confirmed for all substitutes.

Q: What are the compliance differences?

A: The M2012SD3G03, 4-1825136-4, and 5236CDB are all ROHS3 compliant. The 7101SCWCBE is RoHS non-compliant. If your application requires RoHS compliance, the 7101SCWCBE is not suitable. The 5236CDB is REACH unaffected, while the 4-1825136-4 is REACH affected.

Q: Which substitute is recommended for new designs?

A: Selection depends on application requirements. For 20V systems requiring 50,000+ cycle life with RoHS compliance, the 5236CDB offers the closest functional match. For applications requiring extended electrical life (100,000 cycles) and IP67 protection without RoHS compliance constraints, the 7101SCWCBE is suitable. The 4-1825136-4 is limited to low-cycle applications due to its 6,000-cycle rating.

Q: What packaging options are available?

A: The M2012SD3G03 is supplied in bulk packaging. The 4-1825136-4 is supplied in bulk. The 5236CDB is supplied in trays. The 7101SCWCBE is supplied in bulk. Packaging selection should align with procurement and assembly requirements.
