M2012Q2S1W01 Toggle Switch SPDT Equivalent & Substitute Parts

Part Overview

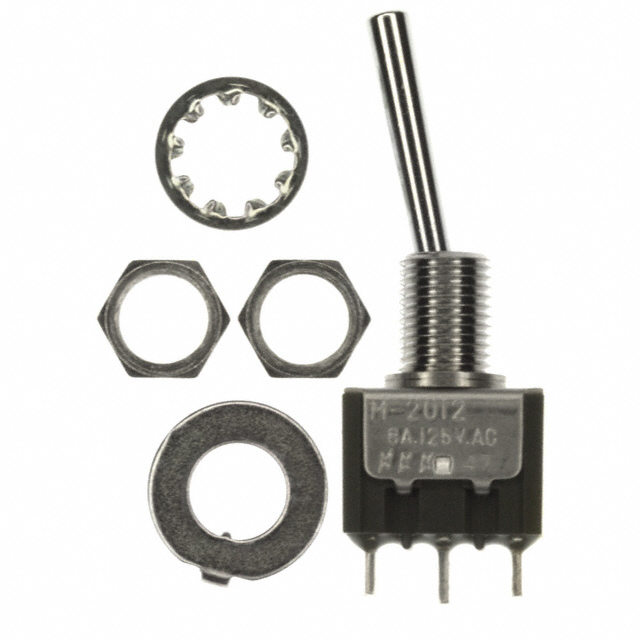

The M2012Q2S1W01 is a panel-mount toggle switch manufactured by NKK Switches with SPDT (Single Pole Double Throw) configuration. This part carries an obsolete product status with 695 units currently in stock. Due to its obsolescence, identifying equivalent and substitute parts is necessary for ongoing design support, maintenance, and new production requirements. Substitute parts must maintain electrical compatibility across AC/DC ratings, mechanical mounting specifications, and circuit functionality.

Key Parameters

Parameter	M2012Q2S1W01
Manufacturer	NKK Switches
Circuit Configuration	SPDT
Switch Function	On-On
Current Rating (AC)	6A @ 125V
Current Rating (DC)	4A @ 30V
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout	Circular - 6.50mm Dia
Bushing Thread	1/4-40
Operating Temperature	-30°C ~ 85°C
Electrical Life	25,000 Cycles
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following critical parameters:

Mandatory Compatibility Parameters:

Circuit configuration (SPDT required)
Switch function (On-On required)
Mounting type (Panel Mount required)
Termination style (Solder Lug required)
Bushing thread (1/4-40 required)
Current and voltage ratings must meet or exceed the original specification

Acceptable Variation Parameters:

Actuator length (mechanical clearance dependent)
Panel cutout diameter (within mechanical tolerance)
Electrical life (higher values acceptable)
Operating temperature range (must encompass original range)
Actuator material composition

Substitute parts are grouped into three categories:

Category 1 - Direct Manufacturer Equivalent: M2012SS1W01 (NKK Switches) - identical electrical specifications with minor actuator length variation.

Category 2 - Cross-Manufacturer Direct Substitute: 5636AB2 (APEM Inc.) - meets all electrical and mechanical requirements with enhanced electrical life and extended temperature range.

Category 3 - Functional Equivalents with Parameter Deviations: C&K 7000 series (7101L1HZQE, 7101L1PHZQI, 7101L1PY1ZGE, 7101L1PY1ZQE) and Electroswitch A123L11YZQ - maintain SPDT configuration and panel mount compatibility but with reduced current ratings (5A AC/DC) and panel cutout diameter variations (6.35mm).

Parameter Comparison

Parameter	M2012Q2S1W01	M2012SS1W01	5636AB2	7101L1PY1ZGE	A123L11YZQ
Manufacturer	NKK Switches	NKK Switches	APEM Inc.	C&K	Electroswitch
Product Status	Obsolete	Obsolete	Active	Active	Active
Circuit	SPDT	SPDT	SPDT	SPDT	SPDT
Current Rating (AC)	6A @ 125V	6A @ 125V	6A @ 125V	5A @ 120V	6A @ 125V
Current Rating (DC)	4A @ 30V	4A @ 30V	4A @ 30V	5A @ 28V	6A @ 28V
Mounting Type	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Termination	Solder Lug	Solder Lug	Solder Lug	Solder Lug	Solder Lug
Panel Cutout Diameter	6.50mm	6.50mm	6.50mm	6.35mm	Not Specified
Bushing Thread	1/4-40	1/4-40	1/4-40	1/4-40	1/4-40
Actuator Length	16.26mm	10.50mm	16.00mm	16.26mm	16.26mm
Operating Temperature	-30°C ~ 85°C	-30°C ~ 85°C	-40°C ~ 85°C	-30°C ~ 85°C	-30°C ~ 90°C
Electrical Life	25,000 Cycles	25,000 Cycles	50,000 Cycles	100,000 Cycles	60,000 Cycles
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant

Engineering Selection Recommendations

For Direct Replacement (No Design Modification Required):

M2012SS1W01 (NKK Switches) is the primary equivalent. This part maintains identical electrical specifications and RoHS3 compliance. The reduced actuator length (10.50mm vs. 16.26mm) requires mechanical clearance verification but does not affect electrical performance. Both parts share obsolete status; inventory availability should be confirmed before design commitment.

5636AB2 (APEM Inc.) provides a cross-manufacturer substitute with active product status, ensuring long-term availability. This part exceeds the original specification with 50,000 electrical cycles versus 25,000, and extends the operating temperature range to -40°C. Panel cutout and bushing thread specifications are identical. ROHS3 compliance is maintained.

For Applications with Reduced Current Requirements:

7101L1PY1ZGE (C&K) and related 7000 series variants (7101L1HZQE, 7101L1PHZQI, 7101L1PY1ZQE) are suitable for applications where AC current requirements do not exceed 5A at 120V. These parts offer superior electrical life (100,000 cycles) and active product status. Panel cutout diameter is 6.35mm, requiring mechanical verification. REACH status is affected; compliance documentation must be obtained from the manufacturer.

A123L11YZQ (Electroswitch) maintains 6A AC rating at 125V with active product status. Panel cutout dimensions are not specified; mechanical compatibility must be confirmed before selection. Operating temperature extends to 90°C. RoHS compliance status differs from the original part.

Compliance Considerations:

All substitute parts maintain ROHS3 compliance or equivalent RoHS certification. REACH status varies; parts with "REACH Affected" designation (C&K 7000 series) require vendor documentation for regulatory applications. MSL rating is consistent across all options at Level 1 (Unlimited).

Frequently Asked Questions (FAQ)

Q: Can M2012SS1W01 be used as a direct drop-in replacement for M2012Q2S1W01?

A: M2012SS1W01 is electrically and mechanically compatible with identical current ratings, voltage specifications, and panel mounting dimensions. The actuator length is reduced from 16.26mm to 10.50mm. Verify mechanical clearance in the application before substitution. Both parts are obsolete; confirm inventory availability.

Q: What is the primary advantage of 5636AB2 over the original M2012Q2S1W01?

A: 5636AB2 offers active product status, ensuring continued availability. Electrical life is doubled (50,000 vs. 25,000 cycles), and operating temperature range is extended to -40°C. All electrical ratings and mechanical specifications are equivalent or superior.

Q: Why do C&K 7000 series parts have lower current ratings?

A: C&K 7101L1 variants are rated for 5A AC/DC versus the original 6A AC/4A DC specification. These parts are suitable only for applications where current requirements do not exceed 5A. Verify application current draw before selection.

Q: Are there panel cutout compatibility issues with substitute parts?

A: M2012SS1W01 and 5636AB2 maintain the 6.50mm circular cutout diameter. C&K 7000 series parts specify 6.35mm diameter, requiring mechanical verification. A123L11YZQ panel cutout dimensions are not provided; contact the manufacturer for confirmation.

Q: What is the impact of REACH status on part selection?

A: C&K 7000 series parts carry "REACH Affected" status, requiring compliance documentation for regulated applications. Obtain REACH declarations from the manufacturer before use in applications subject to REACH requirements. NKK Switches and APEM parts are "REACH Unaffected."

Q: Can actuator length differences affect switch performance?

A: Actuator length affects mechanical clearance and operator feel but does not impact electrical performance. M2012SS1W01 has a shorter actuator (10.50mm); verify panel thickness and surrounding component clearance. All other substitutes maintain the original 16.26mm length.

Q: Which substitute part offers the longest electrical life?

A: C&K 7101L1 variants provide 100,000 electrical cycles, compared to 25,000 cycles for the original part. This extended life is beneficial for high-cycle applications but requires verification of current rating compatibility.
