M2012LL1G05 Toggle Switch SPDT Equivalent & Substitute Parts

Part Overview

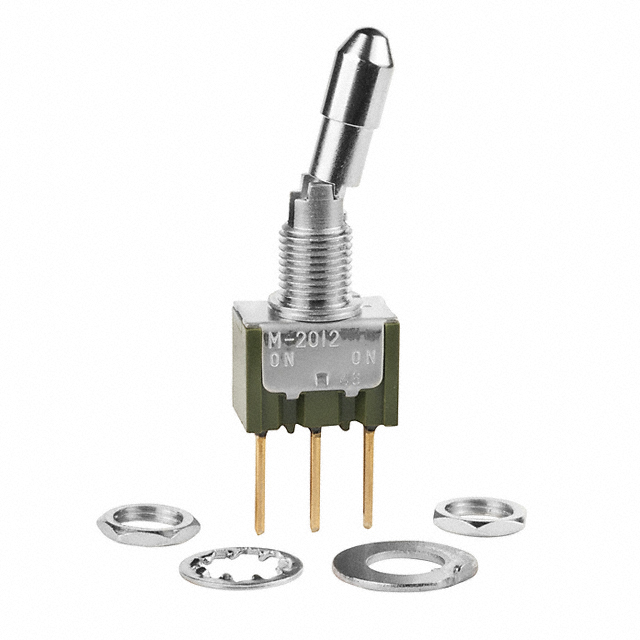

The M2012LL1G05 is a panel-mount toggle switch manufactured by NKK Switches, featuring SPDT (Single Pole Double Throw) circuitry with On-On switching function. This component is rated for 0.4VA at 28V AC/DC operation with a locking lever actuator and wire wrap termination. The product is classified as obsolete, making identification of functionally equivalent alternatives essential for system maintenance, repair, and redesign applications where continued supply cannot be guaranteed.

Substiute Parts

M2012LL1G05

NKK SwitchesIn Stock: 694M2012LL1G05 Datasheet

Current PartRFQ

M2012LL1G01

NKK SwitchesIn Stock: 972M2012LL1G01 Datasheet

MFR RecommendedRFQ

5236MIWRCDBK2V

APEM Inc.In Stock: 10435236MIWRCDBK2V Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M2012LL1G05 is determined by strict alignment with the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration must be SPDT
• Switch function must be On-On
• Current rating must support 0.4VA minimum
• Voltage rating must support 28V AC/DC minimum
• Mounting type must be Panel Mount
• Panel cutout dimensions must be Circular - 6.50mm Dia
• Bushing thread must be 1/4-40
• Actuator type must be Locking Lever

Secondary Compatibility Criteria:

• Operating temperature range must encompass or exceed -30°C ~ 85°C
• Electrical life must meet or exceed 50,000 cycles
• RoHS3 compliance required

Substitute parts are grouped into two categories: MFR Recommended (direct functional equivalents from the same manufacturer) and Similar (functionally compatible alternatives from other manufacturers that meet all primary criteria).

Parameter Comparison

Engineering Selection Recommendations

M2012LL1G01 (MFR Recommended Substitute)

The M2012LL1G01 is the primary substitute for the M2012LL1G05. Both parts are manufactured by NKK Switches and share identical electrical specifications, mechanical dimensions, and compliance certifications. The only functional difference is termination style: M2012LL1G01 uses Solder Lug termination versus Wire Wrap on the original. Both parts carry obsolete product status. Selection of M2012LL1G01 is appropriate when solder lug termination is compatible with the target application's connection methodology.

5236MIWRCDBK2V (Similar Substitute)

The 5236MIWRCDBK2V manufactured by APEM Inc. meets all primary compatibility criteria and maintains active product status, ensuring continued availability. This part is suitable for applications where the 28V rating of the original can be reduced to 20V operation. The actuator length is 1.75mm shorter (14.75mm versus 16.50mm), which may affect panel aesthetics or ergonomic considerations. The operating temperature range extends to -40°C, providing enhanced low-temperature performance. Wire wrap termination matches the original M2012LL1G05. Selection of 5236MIWRCDBK2V is appropriate for new designs or applications where voltage derating and extended temperature performance are acceptable.

Frequently Asked Questions (FAQ)

Q: Can M2012LL1G01 be used as a direct replacement for M2012LL1G05?

A: Yes. Both parts are electrically and mechanically identical. The difference in termination style (Solder Lug versus Wire Wrap) requires verification that the target application's connection method is compatible with the substitute's termination approach.

Q: What is the voltage limitation of the 5236MIWRCDBK2V substitute?

A: The 5236MIWRCDBK2V is rated for 20V AC/DC, compared to 28V for the M2012LL1G05. This part is suitable only for applications operating at 20V or lower. Applications requiring 28V operation must use M2012LL1G01 or source the original M2012LL1G05.

Q: Does the 1.75mm difference in actuator length affect mechanical compatibility?

A: Actuator length differences may affect panel aesthetics, operator feel, and clearance to adjacent components. Mechanical compatibility must be verified against specific panel layout and enclosure design requirements.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. Both M2012LL1G01 and 5236MIWRCDBK2V carry ROHS3 compliance certification, matching the original M2012LL1G05.

Q: Why is 5236MIWRCDBK2V listed as active while the original is obsolete?

A: Product status reflects manufacturer supply commitment. The 5236MIWRCDBK2V remains in active production by APEM Inc., ensuring continued availability for new designs and replacement applications. The M2012LL1G05 and M2012LL1G01 are obsolete, indicating discontinued production by NKK Switches.

Q: Can I use 5236MIWRCDBK2V in a 28V application?

A: No. The 5236MIWRCDBK2V maximum voltage rating is 20V AC/DC. Operating this part at 28V exceeds its electrical specifications and creates reliability and safety risks. Use M2012LL1G01 for 28V applications.
