M10-8RK Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The M10-8RK is a ring terminal connector manufactured by 3M, designed for 10-12 AWG wire applications with an #8 stud connection. This non-insulated circular terminal features a brazed seam construction and crimp termination method. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating (MSL 1). Alternative equivalent parts may be required due to supply availability, packaging preferences, or specific application requirements.

Substiute Parts

M10-8RK

3MIn Stock: 1127M10-8RK Datasheet

Current PartRFQ

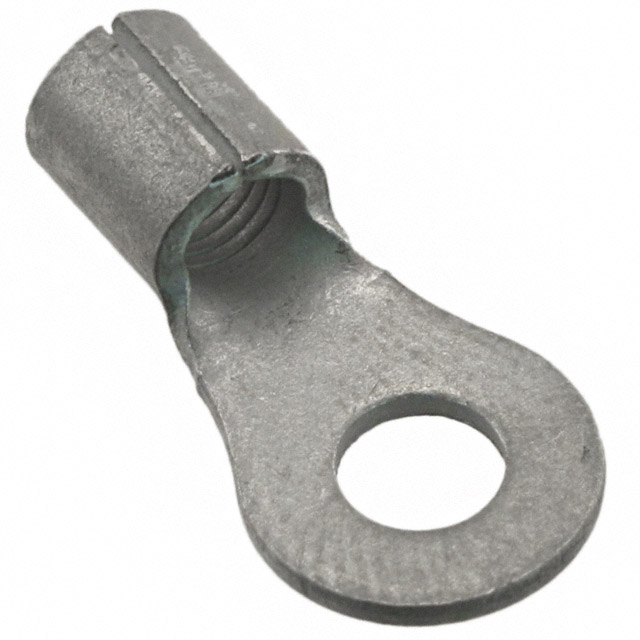

2-32994-1

TE Connectivity AMP ConnectorsIn Stock: 73202-32994-1 Datasheet

MFR RecommendedRFQ

P10-8R-D

Panduit CorpIn Stock: 9688P10-8R-D Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Equivalent substitution for the M10-8RK is determined by strict alignment of core electrical and mechanical parameters. The following criteria establish substitutability:

Primary Substitution Criteria:

• Terminal type must be circular
• Stud size must be #8
• Wire gauge range must accommodate 10-12 AWG
• Termination method must be crimp
• Insulation status must be non-insulated
• Mounting configuration must be free hanging (in-line)
• Construction must include brazed seam

Secondary Compatibility Factors:

• RoHS compliance status (all candidates are compliant)
• MSL rating (all candidates rated MSL 1 or equivalent)
• Product status (all candidates are active)

The substitute parts 2-32994-1 (TE Connectivity) and P10-8R-D (Panduit) meet all primary substitution criteria. Dimensional variations within manufacturing tolerances do not preclude substitutability for this connector category.

Parameter Comparison

Engineering Selection Recommendations

All three parts—M10-8RK, 2-32994-1, and P10-8R-D—are functionally equivalent for 10-12 AWG ring terminal applications with #8 stud connections. Selection should be based on the following factors:

Compliance & Regulatory: All parts meet RoHS requirements. The P10-8R-D carries ROHS3 compliance, representing the most current regulatory standard. The M10-8RK and 2-32994-1 maintain RoHS compliance with MSL 1 ratings suitable for unlimited moisture exposure.

Availability & Packaging: The M10-8RK and P10-8R-D are supplied in bulk packaging, while 2-32994-1 is available in cut tape format. Packaging selection depends on assembly process requirements and order quantity.

Dimensional Tolerance: Dimensional variations exist within acceptable manufacturing tolerances. The P10-8R-D has a narrower outer width (0.310") compared to M10-8RK (0.380") and 2-32994-1 (0.375"). Length variations range from 0.730" to 0.780". These differences do not affect electrical performance for standard #8 stud applications.

Material Specifications: The 2-32994-1 and P10-8R-D specify copper contact material with tin finish. The M10-8RK does not specify contact material in the provided data. Both substitute parts include serrated termination features, providing enhanced mechanical retention.

Frequently Asked Questions (FAQ)

Q: Can M10-8RK be directly replaced with 2-32994-1 or P10-8R-D?

A: Yes. All three parts meet the core substitution criteria: circular terminal type, #8 stud size, 10-12 AWG wire gauge, crimp termination, non-insulated construction, and brazed seam design. Dimensional variations fall within acceptable manufacturing tolerances for this connector category.

Q: What is the difference between bulk and cut tape packaging?

A: Bulk packaging (M10-8RK, P10-8R-D) supplies loose components suitable for manual assembly or high-volume automated processes. Cut tape packaging (2-32994-1) provides components on carrier tape, optimized for specific automated assembly equipment. Packaging selection depends on production line configuration.

Q: Are there any performance differences between the three parts?

A: All three parts provide equivalent electrical performance for 10-12 AWG applications. The 2-32994-1 and P10-8R-D include serrated termination features, which provide additional mechanical retention compared to standard brazed seam construction. This enhancement does not affect compatibility with standard #8 stud applications.

Q: Which part should be selected for new designs?

A: Selection should be based on supply availability, packaging requirements, and compliance specifications. The P10-8R-D offers ROHS3 compliance for the most current regulatory alignment. The M10-8RK and 2-32994-1 provide equivalent performance with established supply chains.

Q: Are dimensional differences significant?

A: Dimensional variations are within acceptable manufacturing tolerances. The P10-8R-D outer width (0.310") is narrower than M10-8RK (0.380") and 2-32994-1 (0.375"). Length differences range from 0.730" to 0.780". These variations do not affect electrical performance or mechanical compatibility with standard #8 stud connections.

Q: What compliance certifications apply to these parts?

A: All three parts are RoHS compliant. The P10-8R-D carries ROHS3 certification. The M10-8RK and 2-32994-1 maintain RoHS compliance with MSL 1 ratings. All parts are classified under ECCN EAR99 and HTSUS 8536.90.4000.
