LZP-00MD00-0000 Equivalent & Substitute Parts

Part Overview

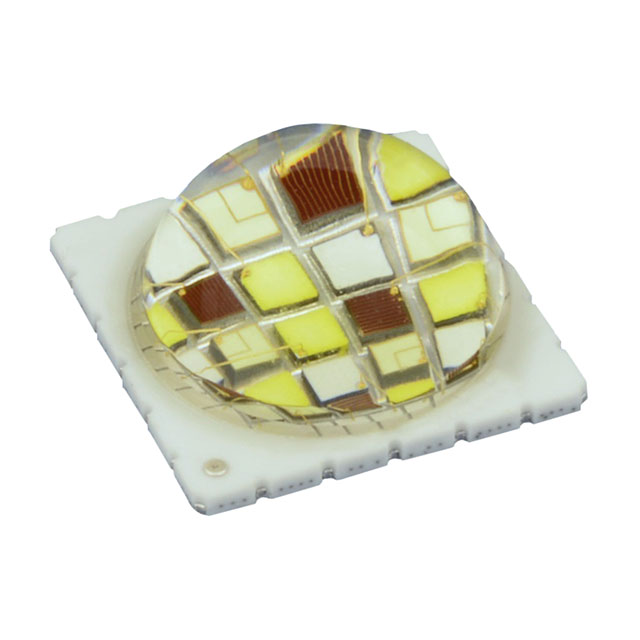

The LZP-00MD00-0000 is an RGBW LED in 2828 (7070 Metric) SMD package manufactured by ams-OSRAM USA INC. This component integrates red (624nm), green (525nm), blue (457nm), and cool white (6335K) emitters in a single surface-mount device. The part is currently obsolete, making identification of compatible substitutes essential for ongoing production and maintenance applications requiring RGBW color mixing capability.

Substiute Parts

LZP-00MD00-0000

ams-OSRAM USA INC.In Stock: 908LZP-00MD00-0000 Datasheet

Current PartRFQ

LZP-00MD00-0000_G2

ams-OSRAM USA INC.In Stock: 909LZP-00MD00-0000_G2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LZP-00MD00-0000 is determined by the following critical parameters:

• Color Configuration: Must provide RGBW (Red, Green, Blue, White) capability
• Wavelength Tolerance: Red and green wavelengths must remain within ±1nm of specified values; blue and white color temperature must maintain functional equivalence
• Current Rating: Test current of 700mA and maximum current of 1A across all color channels
• Voltage Characteristics: Forward voltage (Vf) specifications must support the same drive circuit topology
• Mounting Type: Surface mount only
• Viewing Angle: 125° minimum
• Compliance: RoHS3 compliance and MSL rating must be maintained or improved

The LZP-00MD00-0000_G2 qualifies as a manufacturer-recommended substitute based on these parameters, though package dimensions differ.

Parameter Comparison

Engineering Selection Recommendations

The LZP-00MD00-0000_G2 is the manufacturer-recommended substitute for the obsolete LZP-00MD00-0000. Both components are manufactured by ams-OSRAM USA INC. and maintain ROHS3 compliance status.

Key Considerations for Selection:

• Product Status: The LZP-00MD00-0000_G2 is active, ensuring long-term availability and supply chain continuity compared to the obsolete main part.
• Electrical Compatibility: Current ratings (700mA test, 1A maximum) and forward voltage characteristics are functionally equivalent across all color channels, supporting existing drive circuit designs.
• Wavelength Alignment: Red and green wavelengths differ by 1nm each; blue wavelength is identical. These variations remain within acceptable tolerances for RGBW color mixing applications.
• Package Transition: The substitute uses a larger 24-SMD package (12.00mm x 12.00mm) compared to the 2828 package (7.00mm x 7.00mm). PCB layout and thermal management designs must be re-evaluated for this dimensional change.
• Compliance: Both parts maintain equivalent regulatory and environmental compliance standards.

Frequently Asked Questions (FAQ)

Q: Can the LZP-00MD00-0000_G2 be used as a direct drop-in replacement?

A: Electrical compatibility is confirmed across all color channels. However, the package size differs significantly (12.00mm vs. 7.00mm), requiring PCB layout modifications. Thermal characteristics and mounting footprint must be re-evaluated before implementation.

Q: What is the wavelength tolerance between the main part and substitute?

A: Red wavelength differs by 1nm (624nm vs. 623nm), green by 2nm (525nm vs. 523nm), and blue is identical (457nm). These variations are within acceptable tolerances for RGBW color mixing applications.

Q: Are forward voltage differences significant?

A: Green forward voltage differs by 0.7V (21.6V vs. 20.9V). All other color channels are identical. Existing drive circuits designed for the main part specifications will operate within acceptable parameters with the substitute.

Q: What is the impact of the larger package size?

A: The substitute is 5.00mm larger in both length and width (12.00mm vs. 7.00mm) and 2.13mm taller (6.53mm vs. 4.40mm). PCB footprint, thermal management, and spatial constraints must be re-evaluated for the application.

Q: Is the substitute available in the same compliance certifications?

A: Both parts are manufactured by ams-OSRAM USA INC. and maintain ROHS3 compliance. Moisture sensitivity level and additional certifications should be confirmed with the manufacturer for the substitute part.

Q: What viewing angle does the substitute provide?

A: Both the main part and substitute maintain a 125° viewing angle, ensuring equivalent light distribution characteristics.
