LXM2-PH01-0060 Equivalent & Substitute Parts

Part Overview

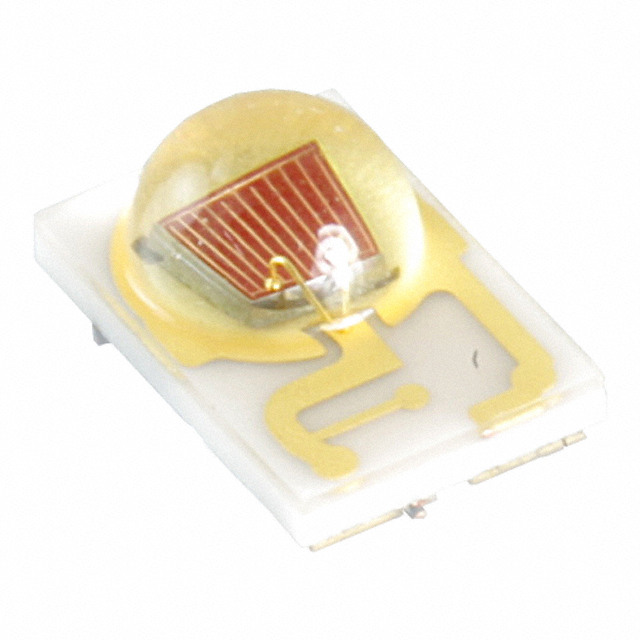

The LXM2-PH01-0060 is a LUXEON Rebel Color red-orange LED (617nm typical wavelength) manufactured by Lumileds in Surface Mount Device (SMD) packaging. This component is classified as Active product status and is RoHS3 compliant. The part is supplied in Tape & Reel (TR) packaging with 947 units currently in stock. Finding equivalent and substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and optimize procurement across different packaging formats while maintaining electrical and mechanical compatibility.

Substiute Parts

LXM2-PH01-0060

LumiledsIn Stock: 987LXM2-PH01-0060 Datasheet

Current PartRFQ

LXM2-PH01-0070

LumiledsIn Stock: 1757LXM2-PH01-0070 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LXM2-PH01-0060 is determined by strict adherence to the following parameters:

• Identical manufacturer (Lumileds)
• Identical series (LUXEON Rebel Color)
• Identical color specification (Red-Orange)
• Identical wavelength (617nm Typ)
• Identical package type (1812 / 4532 Metric)
• Identical mounting type (Surface Mount)
• Identical electrical ratings (Current - Test: 350mA, Vf: 2.1V, Current - Max: 700mA)
• Identical physical dimensions (0.177" L x 0.120" W, Height 0.083" Max)
• Identical thermal resistance (8°C/W)
• Identical compliance certifications (RoHS3, REACH Unaffected, MSL 1)

The substitute part LXM2-PH01-0070 meets all these criteria. The primary difference is packaging format (Cut Tape vs. Tape & Reel) and performance metrics (lumens/watt and luminous flux), which do not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both LXM2-PH01-0060 and LXM2-PH01-0070 are Active status products manufactured by Lumileds with identical electrical specifications, mechanical dimensions, and compliance certifications. Selection between these parts is based on packaging requirements and application volume:

• LXM2-PH01-0060 (Tape & Reel) is suitable for high-volume automated assembly operations requiring continuous reel feeding.
• LXM2-PH01-0070 (Cut Tape) is suitable for lower-volume applications, prototyping, or manual assembly processes.

Both parts satisfy RoHS3 compliance, REACH unaffected status, and MSL 1 (unlimited moisture sensitivity level) requirements. The performance difference in lumens/watt (91 vs. 98 lm/W) and luminous flux (67 vs. 72 lm) reflects manufacturing variation within the LUXEON Rebel Color series and does not affect circuit-level compatibility or thermal management requirements.

Frequently Asked Questions (FAQ)

Q: Can LXM2-PH01-0070 be used as a direct replacement for LXM2-PH01-0060 in existing designs?

A: Yes. Both parts share identical electrical ratings (350mA test current, 2.1V forward voltage, 700mA maximum current), mechanical dimensions (1812 package, 0.177" x 0.120" x 0.083" max height), and thermal characteristics (8°C/W). The only difference is packaging format (Cut Tape vs. Tape & Reel), which does not affect circuit performance or PCB assembly compatibility.

Q: What is the difference between Tape & Reel and Cut Tape packaging?

A: Tape & Reel (TR) packaging supplies components on continuous reels suitable for automated pick-and-place equipment in high-volume manufacturing. Cut Tape (CT) packaging provides individual components pre-cut from tape, suitable for lower-volume applications, manual assembly, or prototyping. Both formats contain the same component with identical specifications.

Q: Are there any compliance or certification differences between these parts?

A: No. Both LXM2-PH01-0060 and LXM2-PH01-0070 are RoHS3 compliant, REACH unaffected, and classified as MSL 1 (unlimited moisture sensitivity). Compliance certifications are identical.

Q: Why does LXM2-PH01-0070 show higher lumens/watt and luminous flux values?

A: The performance metrics (91 vs. 98 lm/W and 67 vs. 72 lm) represent typical values within the LUXEON Rebel Color series manufacturing tolerance. These variations do not affect electrical compatibility or thermal management in circuit design. Both parts operate at identical test conditions (350mA, 25°C) and forward voltage (2.1V).

Q: Can these parts be mixed in the same production batch?

A: Yes, provided assembly equipment can accommodate both Tape & Reel and Cut Tape formats. Since electrical and mechanical specifications are identical, mixed sourcing does not affect circuit performance or reliability.
