LTW-010DCG-S1 Equivalent & Substitute Parts

Part Overview

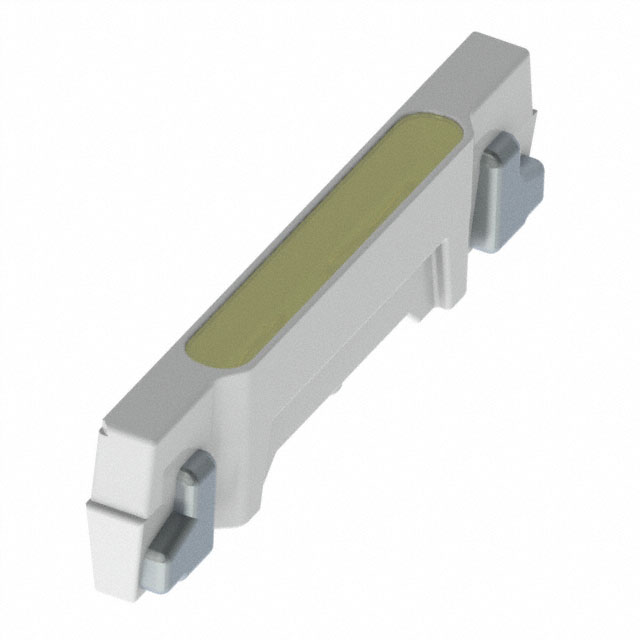

The LTW-010DCG-S1 is a white LED indication component in 2-SMD, J-Lead surface mount package with right-angle configuration. This part is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The LTW-010DCG-S1 delivers 2200mcd brightness at 3.1V forward voltage with a 115° viewing angle, designed for discrete indication applications requiring compact form factor and reliable performance.

Key Parameters

Parameter	Value
Color	White
Configuration	Standard
Lens Color	Yellow
Millicandela Rating	2200mcd
Lens Style	Rectangle with Flat Top
Voltage - Forward (Vf) (Typ)	3.1V
Current - Test	20mA
Viewing Angle	115°
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, J-Lead
Supplier Device Package	2-PLCC
Size / Dimension	3.70mm L x 0.90mm W
Height (Max)	0.43mm
Moisture Sensitivity Level (MSL)	3 (168 Hours)

Substitute Part Grouping Explanation

Substitution eligibility for the LTW-010DCG-S1 is determined by strict parameter matching across the following criteria:

Critical Parameters for Substitution:

Color: White
Lens Color: Yellow
Lens Style: Rectangle with Flat Top
Mounting Type: Surface Mount, Right Angle
Package / Case: 2-SMD, J-Lead
Supplier Device Package: 2-PLCC
Physical Dimensions: 3.70mm L x 0.90mm W, 0.43mm Height (Max)
Viewing Angle: 115°
Current - Test: 20mA
Moisture Sensitivity Level: 3 (168 Hours)

Allowable Parameter Variance:

Voltage - Forward (Vf): ±0.2V tolerance acceptable for equivalent functionality
Millicandela Rating: ±50mcd variance acceptable within standard brightness tolerance

The LTW-010DCG meets all critical parameters and falls within allowable variance for electrical characteristics, qualifying as a parametric equivalent.

Parameter Comparison

Parameter	LTW-010DCG-S1 (Main Part)	LTW-010DCG (Substitute)	Variance
Color	White	White	Match
Configuration	Standard	Standard	Match
Lens Color	Yellow	Yellow	Match
Millicandela Rating	2200mcd	2250mcd	+50mcd (Within Tolerance)
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top	Match
Voltage - Forward (Vf) (Typ)	3.1V	3.3V	+0.2V (Within Tolerance)
Current - Test	20mA	20mA	Match
Viewing Angle	115°	115°	Match
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Match
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead	Match
Supplier Device Package	2-PLCC	2-PLCC	Match
Size / Dimension	3.70mm L x 0.90mm W	3.70mm L x 0.90mm W	Match
Height (Max)	0.43mm	0.43mm	Match
Moisture Sensitivity Level (MSL)	3 (168 Hours)	3 (168 Hours)	Match

Engineering Selection Recommendations

The LTW-010DCG is the primary substitute for the obsolete LTW-010DCG-S1. Selection is based on the following factors:

Product Status: The LTW-010DCG-S1 is classified as obsolete, while the LTW-010DCG maintains active product status with 45,100 units in stock, ensuring supply chain continuity and long-term availability.

Compliance & Certifications: The LTW-010DCG carries RoHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic components in regulated markets.

Electrical Compatibility: The forward voltage increase from 3.1V to 3.3V (+0.2V) and brightness increase from 2200mcd to 2250mcd (+50mcd) remain within standard engineering tolerances for LED indication applications. Circuit designs accommodating the original 3.1V specification will function with the 3.3V substitute without performance degradation.

Mechanical & Packaging Compatibility: Identical package configuration, physical dimensions, and mounting characteristics ensure direct PCB-level substitution without design modification.

Frequently Asked Questions (FAQ)

Q: Can the LTW-010DCG directly replace the LTW-010DCG-S1 without circuit modification?

A: Yes. The LTW-010DCG is mechanically and electrically compatible. The 0.2V forward voltage increase and 50mcd brightness increase fall within standard LED tolerance ranges and do not require circuit redesign for indication applications.

Q: What is the significance of the product status change from obsolete to active?

A: The LTW-010DCG-S1 is no longer manufactured. The LTW-010DCG is the active equivalent with confirmed supply availability (45,100 units in stock), ensuring component procurement for production and field replacement applications.

Q: Are there compliance differences between the two parts?

A: The LTW-010DCG includes RoHS3 compliance and REACH unaffected certification, meeting current regulatory standards. The LTW-010DCG-S1 compliance status is not specified in available documentation.

Q: Do the physical dimensions match exactly?

A: Yes. Both parts share identical dimensions: 3.70mm length, 0.90mm width, and 0.43mm maximum height. PCB footprints and mounting requirements are identical.

Q: What is the packaging difference between the two parts?

A: The LTW-010DCG-S1 packaging is not specified. The LTW-010DCG is available in Cut Tape (CT) and Digi-Reel® packaging formats, providing flexibility for both manual and automated assembly processes.

Q: Are the viewing angles identical?

A: Yes. Both parts maintain a 115° viewing angle, ensuring equivalent light distribution characteristics in indication applications.
