LTM8008HV#PBF Equivalent & Substitute Parts Reference

Part Overview

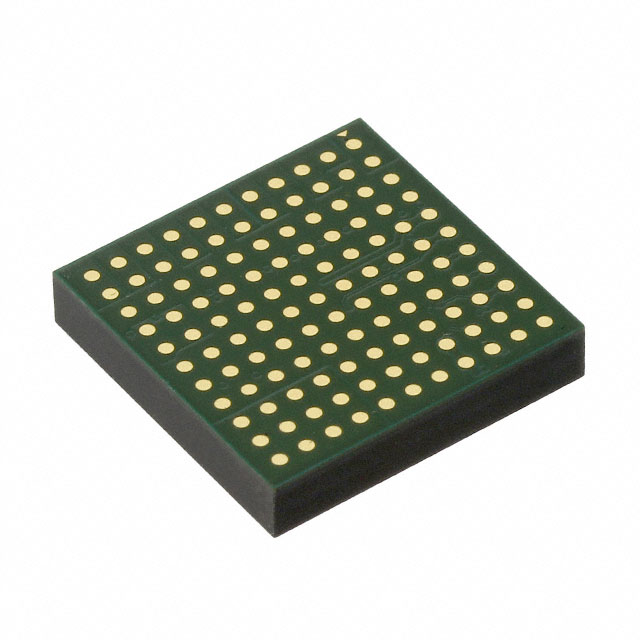

The Analog Devices Inc. LTM8008HV#PBF is a non-isolated PoL module DC-DC converter, featuring six outputs at 5V each. It supports an input voltage range of 3V to 72V, with maximum output currents of 500mA (output 1) and 150mA for the other outputs. The part is classified as obsolete. Sourcing alternative models is necessary to maintain continuity in design and production, as obsolete status can impact future inventory and long-term support.

Key Parameters

Manufacturer Part Number	Manufacturer	Category	Packaging	Description	Detailed Description	Inventory	Series	Product Status	Type	Number of Outputs	Voltage - Input (Min)	Voltage - Input (Max)	Voltage - Output 1	Voltage - Output 2	Voltage - Output 3	Voltage - Output 4	Current - Output (Max)	Applications	Operating Temperature	Mounting Type	Package / Case	Size / Dimension	Supplier Device Package	Moisture Sensitivity Level (MSL)	ECCN	HTSUS	Base Product Number
LTM8008HV#PBF	Analog Devices Inc.		-	DC DC CONVERTER 5V 5V 5V 5V	Non-Isolated PoL Module DC DC Converter 6 Output 5V 5V 5V 5V 500mA, 150mA, 150mA, 150mA 3V - 72V Input	2312 Pcs New Original In Stock	µModule®	Obsolete	Non-Isolated PoL Module	6	3V	72V	5V	5V	5V	5V	500mA, 150mA, 150mA, 150mA	ITE (Commercial)	-40°C ~ 150°C	Surface Mount	121-BLGA Module	0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm)	121-LGA (15x15)	3 (168 Hours)	EAR99	8542.39.0001	LTM8008

Substitute Part Grouping Explanation

Substitute grouping is determined strictly by matching or exceeding key electrical and mechanical parameters, including: type (Non-Isolated PoL Module), number of outputs, input voltage range, output voltages and currents, mounting type, package/case, operating temperature range, and compliance characteristics. Substitute parts listed meet these required criteria for cross-compatibility within this category.

Parameter Comparison

Manufacturer Part Number	Product Status	Type	Number of Outputs	Voltage - Input (Min)	Voltage - Input (Max)	Voltage - Output 1	Voltage - Output 2	Voltage - Output 3	Voltage - Output 4	Current - Output (Max)	Applications	Operating Temperature	Mounting Type	Package / Case	Size / Dimension	Supplier Device Package	Moisture Sensitivity Level (MSL)	ECCN	HTSUS	Base Product Number
LTM8008HV#PBF	Obsolete	Non-Isolated PoL Module	6	3V	72V	5V	5V	5V	5V	500mA, 150mA, 150mA, 150mA	ITE (Commercial)	-40°C ~ 150°C	Surface Mount	121-BLGA Module	0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm)	121-LGA (15x15)	3 (168 Hours)	EAR99	8542.39.0001	LTM8008
LTM8001MPY#PBF	Active	Non-Isolated PoL Module	6	6V	36V	1.2 ~ 24V	0 ~ 24V	0 ~ 24V	0 ~ 24V	5A	ITE (Commercial)	-55°C ~ 125°C	Surface Mount	121-BBGA	0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.6mm)	121-BGA (15x15)	3 (168 Hours)	EAR99	8542.39.0001	LTM8001
LTM8008HV#3GSPBF	Active	Non-Isolated PoL Module	6	3V	72V	5V	5V	5V	5V	500mA, 150mA, 150mA, 150mA	ITE (Commercial)	-40°C ~ 150°C	Surface Mount	121-BLGA Module	0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm)	121-LGA (15x15)	3 (168 Hours)	EAR99	8504.40.9580	LTM8008

Engineering Selection Recommendations

Select active substitute models to ensure continued support and availability. Each substitute part listed is compliant with the specified Moisture Sensitivity Level (MSL 3), ECCN, and HTSUS codes. Verify product status and compliance details strictly from the provided parameters before choosing a substitute for applications requiring ongoing inventory and regulatory compliance.

Frequently Asked Questions (FAQ)

Q1: What are the key criteria for substituting LTM8008HV#PBF?
A1: Substitution requires matching the type (Non-Isolated PoL Module), number of outputs, input and output voltage ranges, output current ratings, mounting type, package/case, size/dimension, operating temperature range, and compliance characteristics.

Q2: Are package dimensions and types consistent among the main part and substitutes?
A2: The main part and substitutes conform to similar physical dimensions and surface mount packages: 121-LGA (15x15) and 121-BBGA/BGA (15x15), supporting consistent board layouts.

Q3: Is ongoing inventory available for substitute parts?
A3: Substitute parts listed have available inventory, as indicated in the provided parameter set.

Q4: Are listed substitute parts compliant with RoHS and REACH?
A4: RoHS and REACH compliance has been cited where provided within the parameter set.

Q5: What product status should be selected for new designs?
A5: Substitute parts with “Active” status are suitable for ongoing and new designs to avoid lifecycle risks associated with obsolete components.

Q6: Are all substitute parts intended for similar application categories?
A6: All parts specify ITE (Commercial) application compatibility as per the provided parameters.
