LSYVC7L Equivalent & Substitute Parts Reference

Part Overview

The LSYVC7L is a snap action DPDT (double pole double throw) switch manufactured by Honeywell Sensing and Productivity Solutions, designed for chassis mount applications with screw terminal connections. This component operates at 10A AC (120V) and 800mA DC (115V) with an adjustable plunger actuator and On-Momentary switch function.

The LSYVC7L carries an obsolete product status. Identifying equivalent substitute parts ensures design continuity and maintains supply chain reliability for applications requiring DPDT snap action switching functionality with identical electrical and mechanical specifications.

Substiute Parts

LSYVC7L

Honeywell Sensing and Productivity SolutionsIn Stock: 940LSYVC7L Datasheet

Current PartRFQ

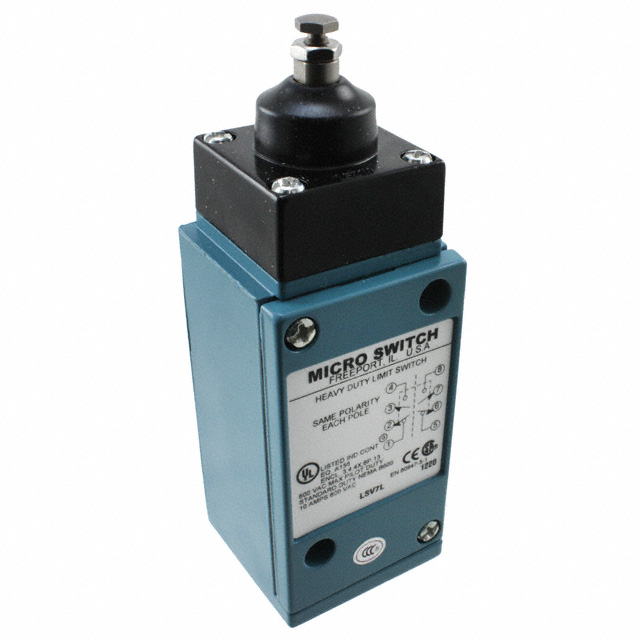

LSV7L

Honeywell Sensing and Productivity SolutionsIn Stock: 1027LSV7L Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the LSYVC7L must maintain electrical and mechanical compatibility based on the following critical parameters:

Electrical Compatibility Requirements:

• Circuit configuration: DPDT (DB/DM)
• Switch function: On-Momentary
• Current rating: 10A AC minimum
• Voltage rating: 120V AC minimum

Mechanical Compatibility Requirements:

• Actuator type: Adjustable Plunger
• Mounting type: Chassis Mount
• Termination style: Screw Terminal
• Operating force: 1814gf
• Travel specifications: Pretravel 0.071" (1.8mm), Differential Travel 0.020" (0.5mm), Overtravel 0.190" (4.8mm)

Compliance Requirements:

• RoHS Compliant status
• MSL rating: 1 (Unlimited)

The LSV7L qualifies as a direct substitute based on matching all critical electrical and mechanical parameters within the HDLS series.

Parameter Comparison

Engineering Selection Recommendations

LSV7L as Primary Substitute:

The LSV7L is the direct equivalent for the obsolete LSYVC7L. Both components share identical electrical ratings (10A AC at 120V, 800mA DC at 115V), mechanical specifications (adjustable plunger, chassis mount, screw terminal), and actuation characteristics (1814gf operating force with matching travel distances).

The LSV7L carries active product status from Honeywell Sensing and Productivity Solutions, ensuring ongoing availability and manufacturing support. Both parts maintain RoHS compliance and MSL 1 (Unlimited) ratings, meeting environmental and moisture sensitivity requirements.

Operating Temperature Consideration:

The LSV7L specifies an operating temperature range of -12°C to 93°C, compared to the LSYVC7L range of -12°C to 121°C. Applications requiring operation above 93°C must evaluate thermal requirements against the narrower specification of the substitute part.

Packaging Difference:

The LSYVC7L was supplied with standard packaging, while the LSV7L is available in bulk packaging. This distinction affects procurement and inventory management but does not impact functional or electrical compatibility.

Frequently Asked Questions (FAQ)

Q: Can LSV7L directly replace LSYVC7L in existing designs?

A: Yes. The LSV7L provides direct functional and electrical replacement for the LSYVC7L. Both components feature identical DPDT circuit configuration, 10A AC (120V) and 800mA DC (115V) ratings, adjustable plunger actuation, and screw terminal connections. Mechanical specifications including operating force (1814gf) and travel distances are identical.

Q: What is the significance of the LSYVC7L obsolete status?

A: Obsolete status indicates the LSYVC7L is no longer manufactured by Honeywell. The LSV7L, with active product status, represents the current production equivalent and ensures long-term supply chain continuity for new designs and component replenishment.

Q: Are there temperature limitations when substituting LSV7L for LSYVC7L?

A: The LSV7L operates within -12°C to 93°C, while the LSYVC7L specified -12°C to 121°C. Applications requiring sustained operation above 93°C should confirm thermal compatibility with the LSV7L specification before implementation.

Q: Do packaging differences affect electrical performance?

A: No. Packaging format (standard versus bulk) is a supply and logistics consideration only. Electrical and mechanical performance of the LSV7L remains identical regardless of packaging configuration.

Q: Are both parts RoHS compliant?

A: Yes. Both LSYVC7L and LSV7L carry RoHS Compliant status and MSL 1 (Unlimited) ratings, meeting environmental and moisture sensitivity requirements for regulated applications.

Q: What are the key parameters that define substitution eligibility?

A: Substitution eligibility is determined by matching circuit configuration (DPDT), switch function (On-Momentary), current and voltage ratings (10A AC/120V, 800mA DC/115V), actuator type (adjustable plunger), mounting method (chassis mount), termination style (screw terminal), and mechanical specifications (operating force, pretravel, differential travel, overtravel).
