LSYRC2B Equivalent & Substitute Parts Reference

Part Overview

The LSYRC2B is a snap action DPDT (double pole double throw) switch manufactured by Honeywell Sensing and Productivity Solutions, designed for chassis mount applications with plug-in termination. This component is rated for 10A AC at 120V and 800mA DC at 115V, featuring a side rotary actuator without lever. The LSYRC2B is classified as obsolete, making identification of functionally equivalent active alternatives essential for ongoing system support and new design implementations.

Substiute Parts

LSYRC2B

Honeywell Sensing and Productivity SolutionsIn Stock: 1174LSYRC2B Datasheet

Current PartRFQ

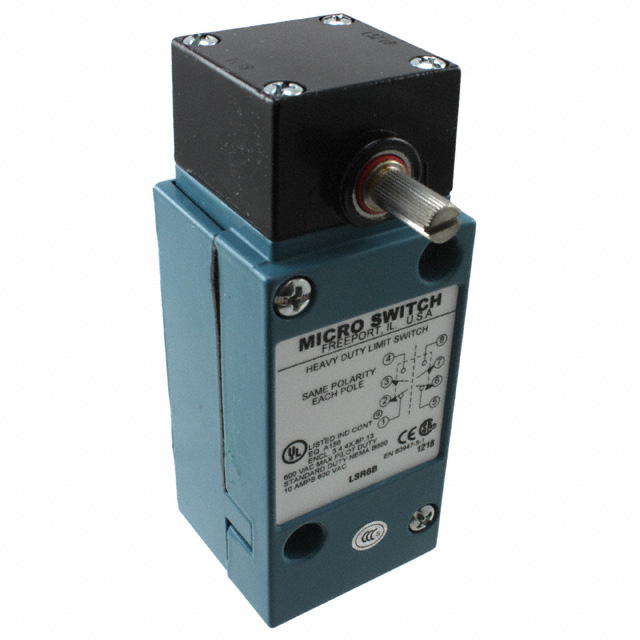

LSR6B

Honeywell Sensing and Productivity SolutionsIn Stock: 1125LSR6B Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete LSYRC2B is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Criteria:

• Circuit configuration: DPDT (DB/DM)
• Switch function: On-Mom
• Current rating: 10A AC / 800mA DC
• Voltage rating: 120V AC / 115V DC

Mechanical Equivalence Criteria:

• Actuator type: Side Rotary - No Lever
• Mounting type: Chassis Mount
• Termination style: Plug In
• Operating force: 19gfm
• Pretravel: 15°
• Differential travel: 7°
• Overtravel: 60°

Environmental & Compliance Criteria:

• Operating temperature range: -1°C to 121°C
• RoHS compliance status
• Moisture sensitivity level: 1 (Unlimited)

The LSR6B meets all specified parameters and is classified as an active product, providing direct functional and mechanical compatibility with the LSYRC2B.

Parameter Comparison

Engineering Selection Recommendations

The LSR6B is the direct equivalent substitute for the obsolete LSYRC2B. Both components are manufactured by Honeywell Sensing and Productivity Solutions within the HDLS series and share identical electrical, mechanical, and environmental specifications. The LSR6B maintains active product status, ensuring ongoing availability and manufacturer support.

Both parts are RoHS compliant and carry MSL Level 1 (Unlimited) moisture sensitivity classification, indicating no special storage or handling requirements. The electrical performance parameters—10A AC at 120V and 800mA DC at 115V—are identical, as are all mechanical characteristics including the side rotary actuator, chassis mount configuration, and plug-in termination.

Selection of the LSR6B for replacement of LSYRC2B applications requires no design modifications, as all functional and physical parameters are equivalent.

Frequently Asked Questions (FAQ)

Q: Can the LSR6B directly replace the LSYRC2B without any modifications?

A: Yes. The LSR6B is electrically and mechanically equivalent to the LSYRC2B across all specified parameters, including circuit configuration, current and voltage ratings, actuator type, mounting method, and termination style. No design or installation modifications are required.

Q: What is the primary reason for substituting the LSYRC2B?

A: The LSYRC2B is classified as obsolete. The LSR6B is the active equivalent product from the same manufacturer and series, ensuring continued availability and manufacturer support.

Q: Are the electrical ratings identical between these two parts?

A: Yes. Both the LSYRC2B and LSR6B are rated for 10A AC at 120V and 800mA DC at 115V, with identical DPDT (DB/DM) circuit configuration and On-Mom switch function.

Q: Are the mechanical specifications the same?

A: Yes. Both parts feature identical mechanical specifications: side rotary actuator without lever, chassis mount configuration, plug-in termination, 19gfm operating force, 15° pretravel, 7° differential travel, and 60° overtravel.

Q: Do both parts have the same environmental operating range?

A: Yes. Both the LSYRC2B and LSR6B operate across the identical temperature range of -1°C to 121°C.

Q: Are there any compliance or certification differences?

A: No. Both parts are RoHS compliant and carry identical Moisture Sensitivity Level 1 (Unlimited) classification, indicating no special storage or handling requirements.

Q: What is the inventory status of the LSR6B?

A: The LSR6B is currently in active production with 1087 pieces available in new original stock.
