LSYKB6B-8C Equivalent & Substitute Parts

Part Overview

The LSYKB6B-8C is a snap action DPDT (double pole double throw) switch manufactured by Honeywell Sensing and Productivity Solutions. This chassis mount switch is rated for 10A AC at 120V and 800mA DC at 115V, featuring a spring coil actuator with plug-in termination. The part is classified as obsolete, making identification of equivalent active alternatives essential for ongoing system support and component procurement.

Substiute Parts

LSYKB6B-8C

Honeywell Sensing and Productivity SolutionsIn Stock: 633LSYKB6B-8C Datasheet

Current PartRFQ

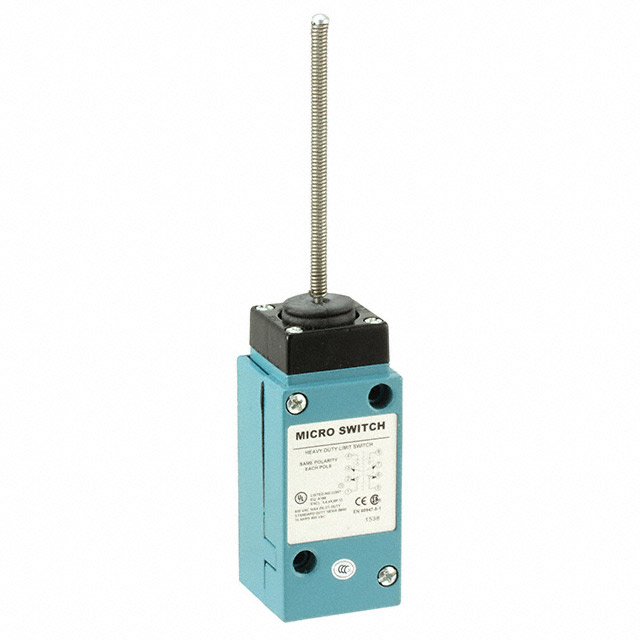

LSK6B-8C

Honeywell Sensing and Productivity SolutionsIn Stock: 1220LSK6B-8C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete LSYKB6B-8C is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Criteria:

• Circuit configuration: DPDT (DB/DM)
• Switch function: On-Momentary
• Current rating: 10A AC / 800mA DC
• Voltage rating: 120V AC / 115V DC

Mechanical Equivalence Criteria:

• Actuator type: Spring, Coil
• Mounting type: Chassis Mount
• Termination style: Plug In
• Operating force: 198gf
• Pretravel: 2.000" (50.8mm)

Compliance Criteria:

• RoHS Compliant status
• MSL Rating: 1 (Unlimited)
• Manufacturer: Honeywell Sensing and Productivity Solutions

The LSK6B-8C meets all substitution criteria and is classified as an active product, making it a direct equivalent for the obsolete LSYKB6B-8C.

Parameter Comparison

Engineering Selection Recommendations

The LSK6B-8C is a direct functional and mechanical equivalent to the obsolete LSYKB6B-8C. Both parts are manufactured by Honeywell Sensing and Productivity Solutions within the HDLS series and share identical electrical ratings, circuit configuration, and mechanical specifications.

Selection Basis:

The LSK6B-8C is recommended as the primary substitute based on:

1. Product Status: The LSK6B-8C is classified as active, ensuring ongoing availability and supply chain continuity compared to the obsolete LSYKB6B-8C.

2. Electrical Equivalence: Both parts maintain identical current ratings (10A AC / 800mA DC) and voltage ratings (120V AC / 115V DC), ensuring direct functional replacement in DPDT on-momentary switching applications.

3. Mechanical Compatibility: Identical actuator type, mounting configuration, termination style, operating force, and pretravel specifications confirm direct mechanical interchangeability.

4. Compliance: Both parts are RoHS Compliant with MSL Rating 1 (Unlimited), meeting environmental and moisture sensitivity requirements.

5. Temperature Operating Range: The LSK6B-8C operates within -12°C to 93°C, which is a subset of the original part's -29°C to 121°C range. Applications requiring the full extended temperature range of the original part should be evaluated against actual operating conditions.

Frequently Asked Questions (FAQ)

Q: Can the LSK6B-8C be used as a direct replacement for the LSYKB6B-8C?

A: Yes. The LSK6B-8C is a direct equivalent. Both parts share identical electrical ratings, circuit configuration (DPDT), switch function (On-Momentary), actuator type, mounting type, and termination style. The LSK6B-8C is the active product alternative to the obsolete LSYKB6B-8C.

Q: What is the difference between the LSYKB6B-8C and LSK6B-8C?

A: The primary difference is product status. The LSYKB6B-8C is obsolete, while the LSK6B-8C is active. The LSK6B-8C has a narrower operating temperature range (-12°C to 93°C versus -29°C to 121°C). All other electrical and mechanical parameters are identical.

Q: Are there packaging differences between these parts?

A: The LSYKB6B-8C is supplied with standard packaging, while the LSK6B-8C is supplied in bulk packaging. Both use plug-in termination and are suitable for chassis mount applications.

Q: Does the narrower temperature range of the LSK6B-8C affect compatibility?

A: The LSK6B-8C operates within -12°C to 93°C. Applications requiring operation below -12°C or above 93°C must be evaluated against actual system requirements. For applications within this range, the LSK6B-8C is fully compatible.

Q: Are both parts RoHS Compliant?

A: Yes. Both the LSYKB6B-8C and LSK6B-8C are RoHS Compliant with MSL Rating 1 (Unlimited), meeting environmental and moisture sensitivity standards.

Q: What is the current availability of these parts?

A: The LSK6B-8C is the active product with 1134 pieces in stock. The LSYKB6B-8C is obsolete with 619 pieces remaining in inventory. For new designs and ongoing procurement, the LSK6B-8C should be specified.
