Equivalent & Substitute Parts for LSM2-T/30-D12-C

Part Overview

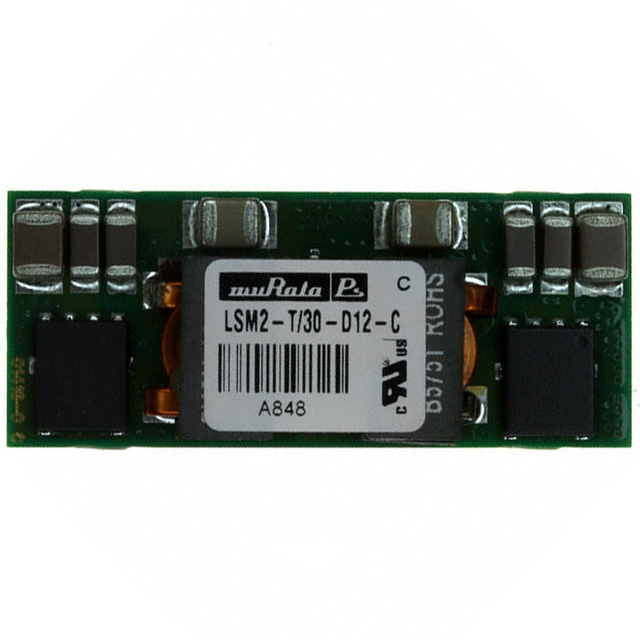

The Murata Power Solutions LSM2-T/30-D12-C is a DC-DC converter module classified as a Non-Isolated PoL (Point of Load) power supply. It features 1 output channel, supports a wide output voltage range from 0.8V to 5V, up to 30A output current, and operates from an input range of 8.3V to 13.2V. With advanced features such as Remote On/Off, overcurrent and short-circuit protection, and under-voltage lockout, it is suitable for ITE (commercial) applications. The product status is listed as obsolete, making it necessary to identify alternative models with compatible electrical and mechanical parameters for both new designs and maintenance of existing systems.

Substiute Parts

LSM2-T/30-D12-C

Murata Power Solutions Inc.In Stock: 1115LSM2-T/30-D12-C Datasheet

Current PartRFQ

ATS030A0X3-SRZ

OmniOn PowerIn Stock: 1639ATS030A0X3-SRZ Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined by verification of electrical, mechanical, and application-specific parameters. Key parameters governing substitute compatibility for Non-Isolated PoL DC-DC converters include:

• Type: Non-Isolated PoL Module
• Number of Outputs: 1
• Input Voltage Range
• Output Voltage Range
• Maximum Output Current
• Power Rating
• Application Category
• Features (Remote On/Off, OCP, UVLO, etc.)
• Operating Temperature Range
• Efficiency
• Mounting Type
• Package/Case and Dimensions
• Control Features
• Moisture Sensitivity Level (MSL)

Only parts with explicitly matching or allowable variance in these parameters are included as substitutes.

Parameter Comparison

Engineering Selection Recommendations

The LSM2-T/30-D12-C part is classified as obsolete. Selection of substitute DC-DC converter modules should be based on product status (active), compliance (RoHS status, ECCN), and Moisture Sensitivity Level (MSL), as provided. The substitute ATS030A0X3-SRZ is listed as active and is RoHS compliant, with an ECCN of EAR99 and MSL 2A (4 Weeks). No additional technical compliance criteria are introduced beyond those specified.

Frequently Asked Questions (FAQ)

Q1: What are the key electrical parameters for substituting Non-Isolated PoL DC-DC converters like the LSM2-T/30-D12-C? A1: Key electrical parameters are input voltage range, output voltage range, maximum output current, and power rating.

Q2: Is pin configuration or package size a relevant criterion for substitution? A2: Package type, case, and mechanical dimensions are provided; substitution is only considered when these match or are within allowable variance as explicitly provided.

Q3: Does the substitute ATS030A0X3-SRZ support the same operating temperature and mounting type? A3: Both modules support an operating temperature of -40°C ~ 85°C and are designed for surface mount installation.

Q4: Which features are confirmed in both the obsolete and substitute parts? A4: Both modules include Remote On/Off, overcurrent protection (OCP), under-voltage lockout (UVLO), and enable control features.

Q5: How does product status and compliance affect substitution decisions? A5: An obsolete part necessitates substitution with active parts having specified compliance (such as RoHS category and MSL) for continued use in commercial applications.
