LSHM-140-L6.0-F-DV-A-S-K-TR Equivalent & Substitute Parts

Part Overview

The LSHM-140-L6.0-F-DV-A-S-K-TR is an 80-position self-mating, non-gendered hermaphroditic rectangular connector from Samtec Inc.'s Razor Beam™ LSHM series. This surface mount connector features gold-plated contacts and is designed for high-density interconnect applications. The part is Active in product status with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector family.

Substiute Parts

LSHM-140-L6.0-F-DV-A-S-K-TR

Samtec Inc.In Stock: 1036LSHM-140-L6.0-F-DV-A-S-K-TR Datasheet

Current PartRFQ

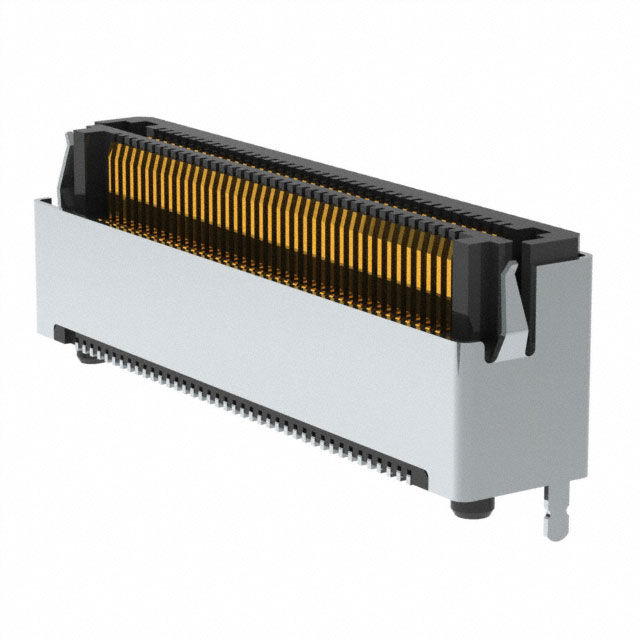

LSHM-140-06.0-F-DV-A-S-K-TR

Samtec Inc.In Stock: 1221LSHM-140-06.0-F-DV-A-S-K-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution within the LSHM-140 connector family is determined by strict equivalence across the following critical parameters:

• Number of positions (80)
• Pitch specification (0.020" / 0.50mm)
• Number of rows (2)
• Connector type (Self Mating, Non-Gendered, Hermaphroditic)
• Mounting type (Surface Mount)
• Contact finish material (Gold)
• Contact finish thickness (3.00µin)
• Height above board (0.293")
• Mated stacking heights (8.5mm, 9mm, 10mm, 12mm)
• Features (Board Guide, Pick and Place, Shielded)
• RoHS compliance (ROHS3)
• Moisture sensitivity level (MSL 1)

The LSHM-140-06.0-F-DV-A-S-K-TR maintains all these parameters identically to the main part, establishing it as a parametric equivalent within the same base product family (LSHM-140).

Parameter Comparison

Engineering Selection Recommendations

Both the LSHM-140-L6.0-F-DV-A-S-K-TR and LSHM-140-06.0-F-DV-A-S-K-TR are Active products with identical electrical and mechanical specifications. Selection between these parts is based on availability and supply chain requirements. Both parts maintain ROHS3 compliance and MSL 1 rating, ensuring compatibility with standard manufacturing and storage protocols. The LSHM-140-06.0-F-DV-A-S-K-TR currently has higher inventory availability (1119 pcs vs. 1020 pcs), which may influence procurement decisions for high-volume applications.

Frequently Asked Questions (FAQ)

Q: Can LSHM-140-06.0-F-DV-A-S-K-TR be used as a direct replacement for LSHM-140-L6.0-F-DV-A-S-K-TR?

A: Yes. Both parts share identical electrical and mechanical parameters, including connector type, position count, pitch, mounting configuration, contact finish, and physical dimensions. They are parametric equivalents within the LSHM-140 base product family.

Q: Are there any differences in compliance or certifications between these parts?

A: No. Both parts are ROHS3 compliant, carry MSL 1 rating, and share identical ECCN and HTSUS classifications.

Q: What determines substitutability for LSHM-140 connectors?

A: Substitutability is determined by equivalence across position count, pitch, row configuration, connector type (self-mating/hermaphroditic), mounting method, contact finish material and thickness, physical height specifications, and compliance certifications.

Q: Are these parts suitable for pick-and-place assembly?

A: Yes. Both parts include pick-and-place features as specified in their feature set.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL 1, indicating unlimited shelf life under standard storage conditions without moisture baking requirements.
