LSHM-130-L6.0-L-DV-A-S-TR Equivalent & Substitute Parts

Part Overview

The LSHM-130-L6.0-L-DV-A-S-TR is a 60-position self-mating, non-gendered hermaphroditic rectangular connector from Samtec Inc.'s Razor Beam™ LSHM series. This surface mount connector features gold-plated contacts, board guide, and shielding, designed for high-density interconnect applications. The part maintains Active product status with full ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Equivalent substitute parts may be required due to inventory availability, lead time considerations, or design revision updates while maintaining identical electrical and mechanical performance.

Substiute Parts

LSHM-130-L6.0-L-DV-A-S-TR

Samtec Inc.In Stock: 938LSHM-130-L6.0-L-DV-A-S-TR Datasheet

Current PartRFQ

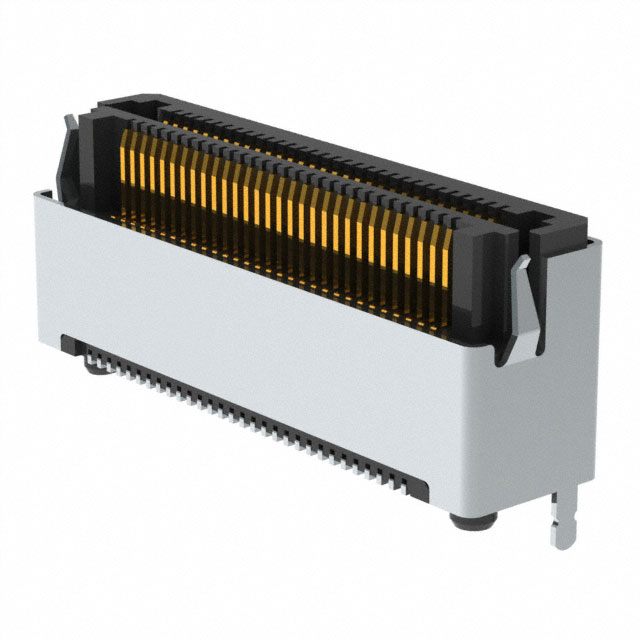

LSHM-130-06.0-L-DV-A-S-TR

Samtec Inc.In Stock: 1991LSHM-130-06.0-L-DV-A-S-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The LSHM-130-06.0-L-DV-A-S-TR qualifies as a parametric equivalent to the LSHM-130-L6.0-L-DV-A-S-TR based on identical electrical and mechanical specifications. Both parts share the same base product number (LSHM-130) and maintain equivalence across all critical substitution parameters: connector type, position count, pitch, row configuration, mounting method, contact finish specifications, height dimensions, and feature set. The nomenclature variation reflects internal Samtec designation conventions while preserving full functional interchangeability. Both parts comply with ROHS3 requirements and carry MSL 1 rating, ensuring compatibility in identical application environments.

Parameter Comparison

Engineering Selection Recommendations

Both the LSHM-130-L6.0-L-DV-A-S-TR and LSHM-130-06.0-L-DV-A-S-TR maintain Active product status from Samtec Inc. and carry identical ROHS3 compliance certification. Selection between these parts should be based on inventory availability and procurement lead times, as both parts satisfy equivalent electrical and mechanical requirements for identical applications. The LSHM-130-06.0-L-DV-A-S-TR currently maintains higher inventory levels (1906 pcs) compared to the primary part (919 pcs), which may influence procurement decisions for high-volume production requirements. Both parts carry ECCN EAR99 and HTSUS 8536.69.4040 classifications with REACH Unaffected status, ensuring consistent regulatory compliance across supply chain alternatives.

Frequently Asked Questions (FAQ)

Q: Are these connectors mechanically interchangeable? A: Yes. Both parts share identical mechanical specifications including 60-position configuration, 0.50mm pitch, 2-row layout, 0.293" height above board, and mated stacking heights of 8.5mm, 9mm, 10mm, and 12mm.

Q: What is the difference between LSHM-130-L6.0-L-DV-A-S-TR and LSHM-130-06.0-L-DV-A-S-TR? A: The nomenclature variation reflects internal Samtec designation conventions. Both parts are functionally identical with no electrical or mechanical differences.

Q: Can I substitute one part for the other on the same PCB assembly? A: Yes. Both parts are parametric equivalents with identical connector type, contact finish, shielding, board guide features, and surface mount configuration.

Q: Are both parts ROHS3 compliant? A: Yes. Both the LSHM-130-L6.0-L-DV-A-S-TR and LSHM-130-06.0-L-DV-A-S-TR maintain full ROHS3 compliance.

Q: What is the moisture sensitivity level for these connectors? A: Both parts carry MSL 1 rating, indicating unlimited moisture sensitivity with no special handling requirements.

Q: Are these parts available in different packaging options? A: Both parts are supplied in Tape & Reel (TR) packaging format.

Q: What contact finish specifications apply to both parts? A: Both parts feature gold contact finish with 10.0µin (0.25µm) thickness specification.
