LPC_142_CTP Light Pipe Round 4MM Clear Equivalent & Substitute Parts

Part Overview

The LPC_142_CTP is a single clear rigid light pipe with round flat-top lens configuration, designed for panel mount clamping applications. This component features a 4.83mm lens size and is manufactured by Visual Communications Company (VCC). The part carries a "Not For New Designs" product status, which necessitates identification of equivalent substitute components for ongoing production requirements and new design implementations. The LPC_142_CTP maintains full ROHS3 compliance and REACH unaffected status, with unlimited moisture sensitivity rating (MSL 1).

Substiute Parts

LPC_142_CTP

Visual Communications Company - VCCIn Stock: 1716LPC_142_CTP Datasheet

Current PartRFQ

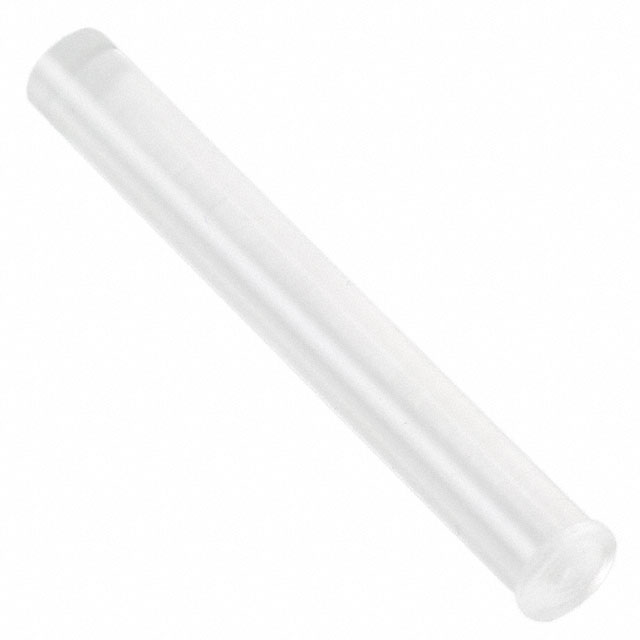

LPC_140_CTP

Visual Communications Company - VCCIn Stock: 6720LPC_140_CTP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LPC_142_CTP is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Lens style: Round with flat top configuration
• Lens size: 4.83mm diameter
• Color specification: Clear optical transmission
• Configuration type: Single lens element
• Structural type: Rigid construction
• Mounting interface: Panel mount with clamping mechanism
• Regulatory compliance: ROHS3 and REACH status alignment

The LPC_140_CTP qualifies as a direct substitute based on identical alignment across all mandatory parameters. Both components share the same optical geometry, material composition, mounting interface, and regulatory certifications. The primary distinction is product lifecycle status: LPC_142_CTP carries "Not For New Designs" designation, while LPC_140_CTP maintains "Active" status.

Parameter Comparison

Engineering Selection Recommendations

For Existing Production (LPC_142_CTP): The LPC_142_CTP remains functionally viable for ongoing production support. Current inventory of 1659 pieces supports near-term requirements. The "Not For New Designs" status indicates manufacturer discontinuation planning; however, the component maintains full ROHS3 compliance and regulatory certifications.

For New Design Implementation: The LPC_140_CTP is the designated substitute for new design work. This component carries "Active" product status, ensuring long-term availability and manufacturer support. With 6652 pieces in inventory, supply continuity is established. Electrical, mechanical, and regulatory parameters are identical to the LPC_142_CTP, enabling direct substitution without design modification.

Compliance Verification: Both components satisfy ROHS3 Compliant and REACH Unaffected requirements. MSL 1 rating (unlimited moisture sensitivity) applies to both parts, eliminating moisture-related handling constraints. ECCN EAR99 classification and HTSUS 3926.90.9985 coding are consistent across both components.

Frequently Asked Questions (FAQ)

Q: Can LPC_140_CTP directly replace LPC_142_CTP in existing assemblies?

A: Yes. The LPC_140_CTP provides direct mechanical and optical equivalence. Lens geometry (4.83mm round flat-top), mounting interface (panel mount clamping), and material properties (clear rigid construction) are identical. No assembly redesign is required.

Q: What is the significance of the "Not For New Designs" status on LPC_142_CTP?

A: This designation indicates the manufacturer has discontinued active development and support for this part number. While existing inventory supports current production, new design projects should specify LPC_140_CTP to ensure long-term component availability and manufacturer technical support.

Q: Are there any regulatory or compliance differences between these parts?

A: No. Both components carry identical ROHS3 Compliant and REACH Unaffected certifications. MSL 1 rating, ECCN EAR99 classification, and HTSUS coding are consistent, eliminating compliance-related substitution barriers.

Q: What packaging format is available for both parts?

A: Both LPC_142_CTP and LPC_140_CTP are supplied in bulk packaging, suitable for high-volume production integration.

Q: How does inventory availability compare between these parts?

A: LPC_140_CTP maintains higher inventory (6652 pieces) compared to LPC_142_CTP (1659 pieces). For production planning, LPC_140_CTP offers superior supply continuity.
