LPC_098_CTP Equivalent & Substitute Parts Reference

Part Overview

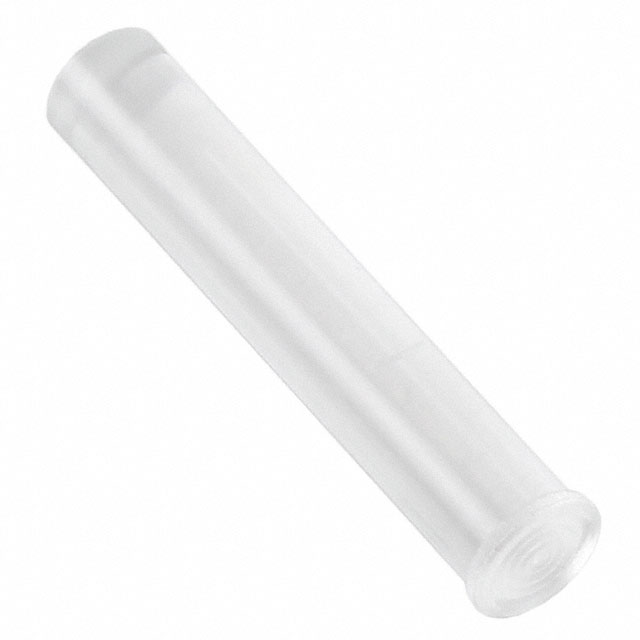

The LPC_098_CTP is a light pipe assembly manufactured by Visual Communications Company (VCC), designed as a single clear rigid panel mount component with clamping configuration. This part features a round lens with flat top geometry and 4.83mm lens size, suitable for optical signal transmission applications in electronic equipment.

The LPC_098_CTP carries a "Not For New Designs" product status, indicating it has been superseded in the manufacturer's active product line. Identification of equivalent substitute parts is necessary for ongoing maintenance, repair, and legacy system support where this component remains in service.

Substiute Parts

LPC_098_CTP

Visual Communications Company - VCCIn Stock: 2002LPC_098_CTP Datasheet

Current PartRFQ

LPC_100_CTP

Visual Communications Company - VCCIn Stock: 2329LPC_100_CTP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LPC_098_CTP is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Lens size: 4.83mm
• Lens style: Round with flat top
• Color: Clear
• Configuration: Single
• Type: Rigid
• Mounting type: Panel Mount, Clamping
• Packaging: Bulk

The LPC_100_CTP qualifies as a direct substitute based on identical specifications across all mandatory parameters. Both parts share the same optical geometry, mechanical mounting interface, and material composition. The primary distinction is product lifecycle status: LPC_098_CTP is designated "Not For New Designs," while LPC_100_CTP maintains "Active" status in the manufacturer's current product portfolio.

Parameter Comparison

Engineering Selection Recommendations

For Legacy System Maintenance: The LPC_098_CTP remains suitable for repair and replacement operations in existing equipment where this component is currently installed. Current inventory of 1,929 pieces is available in new original condition.

For New Designs and Future Procurement: The LPC_100_CTP is the designated active equivalent. This part carries "Active" product status and represents the current manufacturing standard from VCC. With 2,307 pieces in new original inventory, the LPC_100_CTP provides superior supply chain continuity and manufacturer support for ongoing production requirements.

Compliance Considerations: Both parts maintain identical ROHS3 compliance, REACH unaffected status, and EAR99 export classification. MSL rating of 1 (Unlimited) indicates no moisture sensitivity constraints for either component. Selection between these parts should be based on product lifecycle requirements rather than regulatory or environmental compliance factors.

Frequently Asked Questions (FAQ)

Q: Can LPC_100_CTP be used as a direct replacement for LPC_098_CTP in existing assemblies?

A: Yes. The LPC_100_CTP is mechanically and optically identical to the LPC_098_CTP. Both parts feature the same 4.83mm round lens with flat top, rigid construction, panel mount clamping configuration, and clear optical material. No design modifications are required for substitution.

Q: What is the significance of the "Not For New Designs" status on LPC_098_CTP?

A: This designation indicates the manufacturer has transitioned this part to end-of-life status and recommends using LPC_100_CTP for all new product development. Existing inventory of LPC_098_CTP remains available for maintenance and repair applications.

Q: Are there any differences in packaging or handling between these two parts?

A: Both parts are supplied in bulk packaging with identical MSL rating of 1 (Unlimited), indicating no special moisture control measures are required during storage or handling.

Q: Do these parts have any export or regulatory restrictions?

A: Both parts carry ECCN classification EAR99, indicating they are subject to standard export regulations. ROHS3 compliance and REACH unaffected status are identical for both components.

Q: What is the base product number relationship between LPC_098 and LPC_100?

A: LPC_098 and LPC_100 represent different product line designations within VCC's light pipe portfolio. The LPC_100 series represents the current active product line, while LPC_098 has been superseded. The numerical designation change reflects the manufacturer's product evolution, though the physical and optical specifications remain equivalent.
