LEDS2M-260-01 Equivalent & Substitute Parts

Part Overview

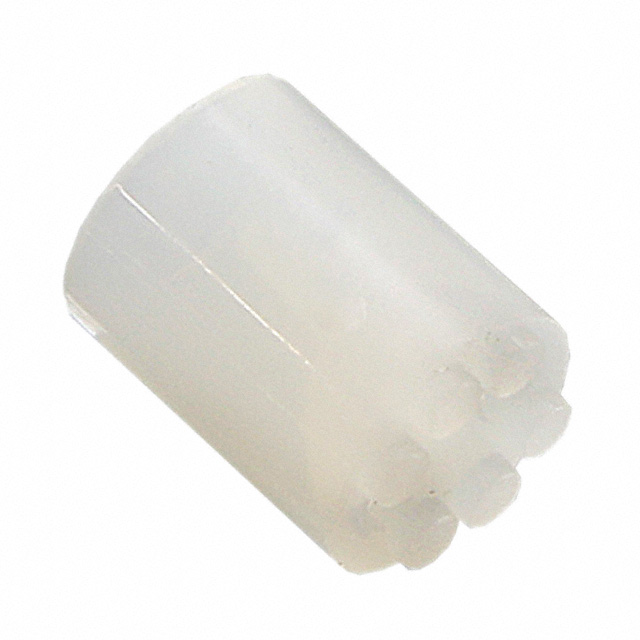

The LEDS2M-260-01 is a T1 3/4 LED spacer manufactured by Essentra Components. This molded nylon standoff measures 0.260" (6.60mm) in length and is designed for T1 3/4 LED applications. The part is currently active in production with 1577 units in stock. Equivalent and substitute parts are identified when mechanical dimensions, LED form factor, material composition, and compliance certifications align with the original specification, enabling direct replacement in assembly operations.

Substiute Parts

LEDS2M-260-01

Essentra ComponentsIn Stock: 1646LEDS2M-260-01 Datasheet

Current PartRFQ

LEDS2E-4-01

Essentra ComponentsIn Stock: 65998LEDS2E-4-01 Datasheet

Parametric EquivalentRFQ

LEDS2M-250-01

Essentra ComponentsIn Stock: 2643LEDS2M-250-01 Datasheet

Parametric EquivalentRFQ

8318

Keystone ElectronicsIn Stock: 11298318 Datasheet

Parametric EquivalentRFQ

8319

Keystone ElectronicsIn Stock: 21138319 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LEDS2M-260-01 is determined by the following parameters:

Primary Substitution Criteria:

• LED form factor must be T1 3/4
• Material must be Nylon
• Color must be Natural
• Length tolerance: Parts with 0.260" (6.60mm) length are direct equivalents; parts with 0.250" (6.35mm) length are parametric equivalents with reduced standoff height

Compliance Requirements:

• RoHS compliance status (RoHS Compliant or ROHS3 Compliant acceptable)
• REACH Unaffected status required
• Product status must be Active

Packaging:

• Bulk packaging format

Parts meeting all primary criteria are classified as parametric equivalents. The LEDS2M-260-01 has four identified substitutes: LEDS2E-4-01, LEDS2M-250-01, 8318, and 8319. Of these, 8319 shares identical length specification (0.260"), while LEDS2E-4-01, LEDS2M-250-01, and 8318 feature reduced length (0.250").

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalent (Identical Length): The 8319 manufactured by Keystone Electronics is a direct equivalent to LEDS2M-260-01. Both parts share identical length specification (0.260"), LED form factor (T1 3/4), material (Nylon), and color (Natural). Both maintain active product status and meet required compliance standards (ROHS3 Compliant and REACH Unaffected). Selection between LEDS2M-260-01 and 8319 may be based on manufacturer preference, inventory availability, or supply chain considerations.

Parametric Equivalents (Reduced Length): LEDS2E-4-01, LEDS2M-250-01, and 8318 are parametric equivalents with 0.250" (6.35mm) length, representing a 0.010" (0.25mm) reduction from the original specification. These parts maintain all other critical parameters: T1 3/4 LED form factor, Nylon material, Natural color, and compliance certifications. Selection of reduced-length substitutes requires confirmation that the 0.010" dimensional difference is acceptable for the application.

All substitute parts are currently active in production and maintain compliance with RoHS and REACH requirements.

Frequently Asked Questions (FAQ)

Q: Can LEDS2M-260-01 be replaced with 8319? A: Yes. The 8319 is a direct equivalent with identical length (0.260"), LED form factor (T1 3/4), material (Nylon), and color (Natural). Both parts are active and meet compliance requirements.

Q: What is the difference between LEDS2M-260-01 and the 0.250" length substitutes? A: The primary difference is standoff height. LEDS2M-260-01 measures 0.260" (6.60mm), while LEDS2E-4-01, LEDS2M-250-01, and 8318 measure 0.250" (6.35mm). This 0.010" reduction may affect LED positioning in the assembly. All other parameters remain equivalent.

Q: Are there differences between Essentra Components and Keystone Electronics parts? A: Both manufacturers produce T1 3/4 LED spacers meeting the same mechanical and compliance specifications. The primary differences are manufacturer identity and HTSUS classification. Essentra Components parts (LEDS2M series, LEDS2E series) and Keystone Electronics parts (8318, 8319) are functionally equivalent within their respective length categories.

Q: Which substitute has the highest inventory availability? A: LEDS2E-4-01 has the highest inventory at 65,983 units. However, this part features 0.250" length rather than the original 0.260" specification.

Q: Do all substitutes meet RoHS compliance? A: Yes. LEDS2M-260-01, LEDS2E-4-01, and LEDS2M-250-01 are RoHS Compliant. The Keystone Electronics parts (8318, 8319) are ROHS3 Compliant. All parts meet REACH Unaffected status.
