LEDS2M-220-01 Equivalent & Substitute Parts

Part Overview

The LEDS2M-220-01 is a T1 3/4 LED spacer manufactured by Essentra Components. This molded nylon standoff is designed for 0.220" (5.59mm) LED applications and maintains an active product status. LED spacers are essential components in PCB assembly, providing precise mechanical positioning and electrical isolation for LED leads during insertion and soldering operations. Identifying equivalent parts ensures design flexibility and supply chain continuity when the primary part becomes unavailable or when alternative sourcing is required.

Substiute Parts

LEDS2M-220-01

Essentra ComponentsIn Stock: 1865LEDS2M-220-01 Datasheet

Current PartRFQ

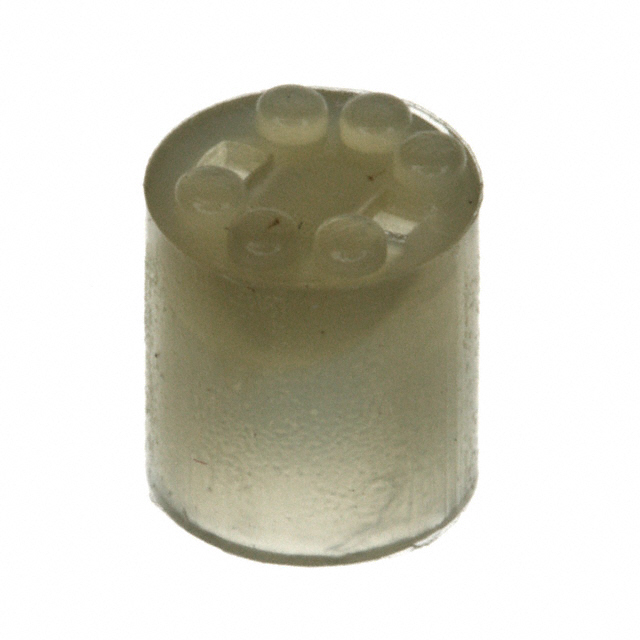

8316

Keystone ElectronicsIn Stock: 253038316 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the LEDS2M-220-01 is determined by strict equivalence across the following parameters:

• LED Type: T1 3/4 form factor
• Length: 0.220" (5.59mm) dimension
• Material: Nylon construction
• Color: Natural finish
• Environmental Compliance: RoHS and REACH status

The substitute part Keystone Electronics 8316 meets all critical mechanical and electrical parameters required for direct substitution. Both parts share identical LED type, length, material composition, and color specification. Compliance certifications (RoHS and REACH) are maintained across both parts, ensuring regulatory equivalence in end-use applications.

Parameter Comparison

Engineering Selection Recommendations

Both the LEDS2M-220-01 and Keystone Electronics 8316 are active products with full regulatory compliance. The LEDS2M-220-01 maintains RoHS compliance, while the 8316 carries ROHS3 certification, representing an enhanced compliance level. Both parts are REACH Unaffected, confirming suitability for regulated markets. Selection between these parts should be based on availability, lead time, and procurement cost, as mechanical and electrical performance characteristics are equivalent. The active status of both products ensures continued supply and technical support.

Frequently Asked Questions (FAQ)

Q: Can the Keystone Electronics 8316 be used as a direct replacement for LEDS2M-220-01?

A: Yes. Both parts share identical LED type (T1 3/4), length (0.220"/5.59mm), material (nylon), and color (natural). Mechanical fit and electrical performance are equivalent.

Q: Are there compliance differences between these parts?

A: Both parts maintain REACH Unaffected status. The LEDS2M-220-01 is RoHS Compliant, while the 8316 carries ROHS3 Compliant certification. ROHS3 represents an updated compliance standard and does not prevent substitution.

Q: What is the significance of the T1 3/4 LED type specification?

A: T1 3/4 designates the physical form factor and diameter of the LED component. This specification must match exactly for mechanical compatibility with PCB mounting holes and LED lead positioning.

Q: Does the 0.220" length specification affect PCB assembly?

A: Yes. The 0.220" (5.59mm) length determines the standoff height between the LED lead and the PCB surface. This dimension must remain constant across substitute parts to maintain consistent solder joint geometry and thermal performance.

Q: Are there packaging considerations when switching between manufacturers?

A: Both parts are supplied in bulk packaging. Verify packaging quantity and reel specifications with your supplier to ensure compatibility with your assembly equipment and procurement workflows.
