LEDS2M-180-01 Equivalent & Substitute Parts

Part Overview

The LEDS2M-180-01 is a T1 3/4 LED spacer manufactured by Essentra Components. This molded nylon standoff is designed for T1 3/4 LED applications with a 0.180" (4.57mm) length. The part is currently active in production and maintains full RoHS compliance. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring T1 3/4 LED standoff functionality.

Substiute Parts

LEDS2M-180-01

Essentra ComponentsIn Stock: 1641LEDS2M-180-01 Datasheet

Current PartRFQ

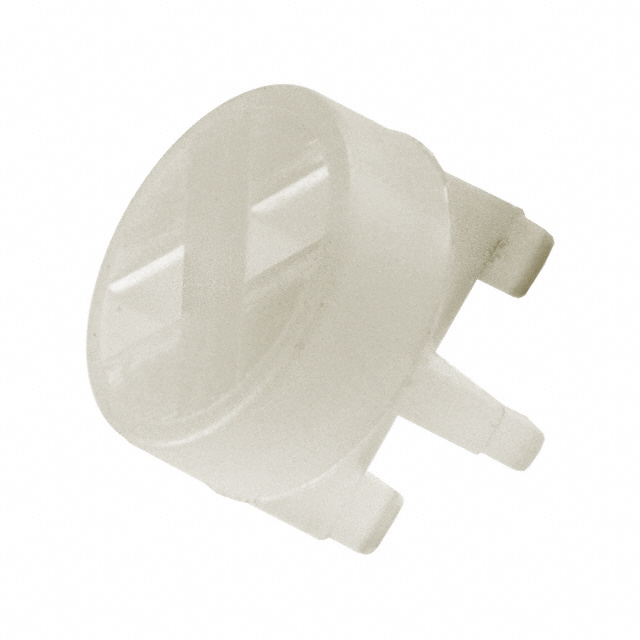

LEDS2E-3-01

Essentra ComponentsIn Stock: 14844LEDS2E-3-01 Datasheet

Parametric EquivalentRFQ

8314

Keystone ElectronicsIn Stock: 267108314 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the LEDS2M-180-01 are qualified based on the following critical parameters:

• LED Type: T1 3/4 (mechanical compatibility requirement)
• Material: Nylon (functional and environmental requirement)
• Color: Natural (visual and material consistency)
• RoHS Compliance: Required for regulatory adherence
• Packaging: Bulk (supply format consistency)

The LEDS2E-3-01 is a parametric equivalent with identical LED type, material, and color specifications. The primary dimensional difference is length (0.187" vs. 0.180"), which represents a 0.007" variance within typical mechanical tolerance ranges for standoff applications.

The 8314 from Keystone Electronics is a direct dimensional and functional equivalent with matching 0.180" length and identical LED type, material, and color specifications.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active product status and full RoHS compliance, qualifying them for use in applications requiring regulatory adherence. The LEDS2M-180-01 and 8314 are dimensionally identical at 0.180" length and represent direct substitutes. The LEDS2E-3-01 introduces a 0.007" length increase to 0.187", which may be acceptable depending on application-specific mechanical clearance requirements. Selection should be based on inventory availability, lead time requirements, and dimensional constraints of the target application.

Frequently Asked Questions (FAQ)

Q: Can LEDS2E-3-01 be used as a direct replacement for LEDS2M-180-01?

A: The LEDS2E-3-01 shares identical LED type, material, and color specifications. The length difference of 0.007" (0.187" vs. 0.180") must be evaluated against application-specific mechanical tolerances and clearance requirements. Both parts are nylon T1 3/4 standoffs with equivalent functional properties.

Q: What is the primary difference between LEDS2M-180-01 and 8314?

A: Both parts are dimensionally and functionally equivalent with matching 0.180" length, T1 3/4 LED type, nylon material, and natural color. The primary difference is manufacturer: LEDS2M-180-01 is manufactured by Essentra Components, while 8314 is manufactured by Keystone Electronics. Both maintain full RoHS compliance.

Q: Are all substitute parts available in bulk packaging?

A: Yes. LEDS2M-180-01, LEDS2E-3-01, and 8314 are all supplied in bulk packaging format, ensuring consistency in procurement and supply chain management.

Q: Do all parts meet RoHS requirements?

A: Yes. LEDS2M-180-01 is RoHS Compliant, LEDS2E-3-01 is RoHS Compliant, and 8314 is ROHS3 Compliant. All parts satisfy RoHS regulatory requirements.

Q: Which substitute part should be selected for applications with strict dimensional tolerances?

A: The 8314 from Keystone Electronics matches the exact 0.180" length specification of LEDS2M-180-01 and is recommended for applications where dimensional precision is critical. The LEDS2E-3-01 should be selected only when the 0.007" length increase is compatible with application requirements.
