LEDS2M-160-01 Equivalent & Substitute Parts

Part Overview

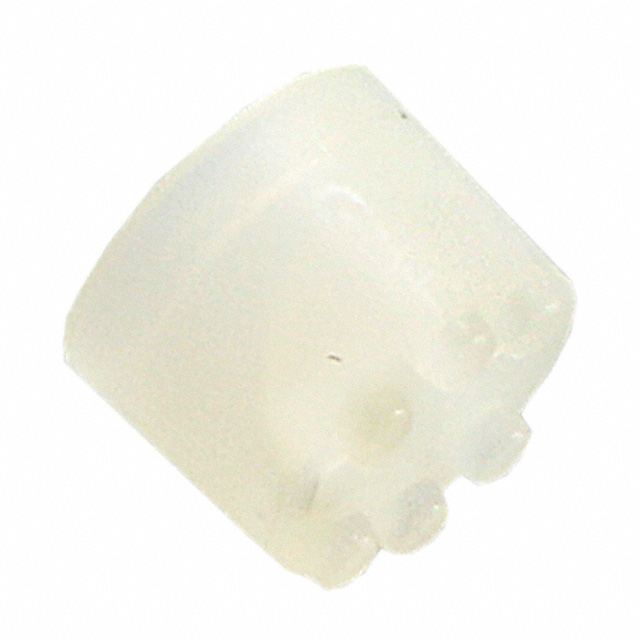

The LEDS2M-160-01 is a T1 3/4 LED spacer manufactured by Essentra Components. This molded nylon standoff is designed for 0.160" (4.06mm) LED applications and maintains an active product status. LED spacers are essential components in PCB assembly, providing precise positioning and mechanical support for through-hole LED packages. Identifying equivalent parts ensures design flexibility and supply chain continuity when the primary part becomes unavailable or when alternative sourcing is required.

Substiute Parts

LEDS2M-160-01

Essentra ComponentsIn Stock: 1779LEDS2M-160-01 Datasheet

Current PartRFQ

8313

Keystone ElectronicsIn Stock: 227878313 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the LEDS2M-160-01 is determined by strict equivalence across the following parameters:

• LED package compatibility: T1 3/4 form factor
• Physical length: 0.160" (4.06mm)
• Material composition: Nylon
• Color specification: Natural
• Environmental compliance: RoHS and REACH status
• Moisture sensitivity classification: MSL 1

Parts meeting all these criteria are classified as direct parametric equivalents and may be substituted without design modification.

Parameter Comparison

Engineering Selection Recommendations

Both the LEDS2M-160-01 and the 8313 meet the critical substitution criteria for T1 3/4 LED spacer applications. The LEDS2M-160-01 carries RoHS Compliant certification, while the 8313 carries ROHS3 Compliant certification. Both parts maintain MSL 1 classification and REACH Unaffected status, confirming suitability for standard PCB assembly environments. Both parts are active products with confirmed inventory availability. Selection between these parts may be based on supplier availability, lead time, or existing qualification documentation within your organization.

Frequently Asked Questions (FAQ)

Q: Can the 8313 be used as a direct replacement for the LEDS2M-160-01?

A: Yes. Both parts share identical specifications for LED package type (T1 3/4), length (0.160"), material (nylon), and color (natural). Both maintain equivalent environmental compliance classifications.

Q: Are there differences in RoHS certification between these parts?

A: The LEDS2M-160-01 carries RoHS Compliant certification, while the 8313 carries ROHS3 Compliant certification. Both certifications confirm compliance with hazardous substance restrictions applicable to this product category.

Q: What is the significance of MSL 1 classification for these spacers?

A: MSL 1 indicates unlimited shelf life with no moisture sensitivity constraints. These parts do not require special storage or handling conditions related to moisture exposure.

Q: Are there any packaging differences between these parts?

A: Both parts are supplied in bulk packaging. Verify packaging quantity requirements with your supplier to ensure compatibility with your assembly process.

Q: Can these spacers be used interchangeably in existing designs?

A: Yes, provided your design documentation does not specify a particular manufacturer. The identical dimensional and material specifications ensure mechanical and functional interchangeability in T1 3/4 LED applications.
