LEDS2M-140-01 LED Spacer Equivalent & Substitute Parts

Part Overview

The LEDS2M-140-01 is a molded LED spacer manufactured by Essentra Components, designed for T1 3/4 LED applications. This component provides mechanical standoff functionality with a 0.140" (4.66mm) height in natural nylon construction. The part maintains active product status and is RoHS compliant, making it suitable for current electronic assembly applications. Identifying equivalent substitute parts ensures supply chain flexibility and maintains design continuity when primary sourcing becomes constrained.

Substiute Parts

LEDS2M-140-01

Essentra ComponentsIn Stock: 2007LEDS2M-140-01 Datasheet

Current PartRFQ

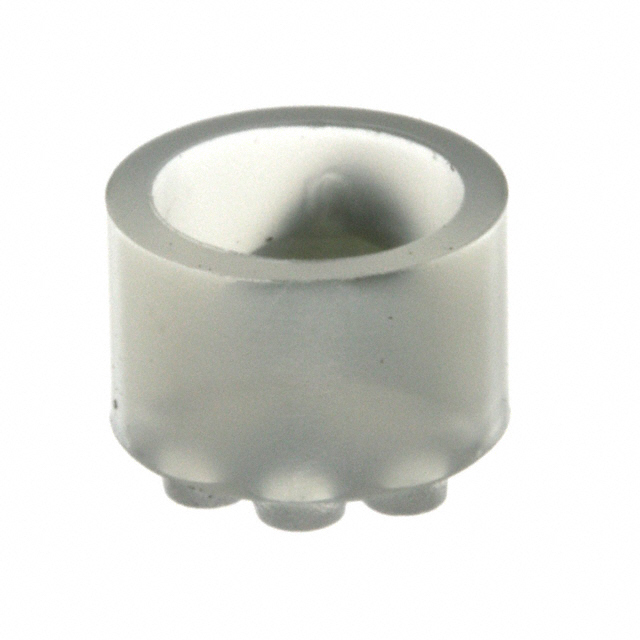

8312

Keystone ElectronicsIn Stock: 76978312 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the LEDS2M-140-01 are identified based on matching the following critical parameters:

• LED form factor: T1 3/4
• Physical height: 0.140" (4.66mm)
• Material composition: Nylon
• Color specification: Natural
• Packaging format: Bulk

The Keystone Electronics part number 8312 satisfies all these criteria, establishing it as a direct functional equivalent. Both parts serve identical mechanical and dimensional roles in T1 3/4 LED mounting applications.

Parameter Comparison

Engineering Selection Recommendations

Both the LEDS2M-140-01 and 8312 maintain active product status and satisfy regulatory compliance requirements. The LEDS2M-140-01 carries RoHS compliance certification, while the Keystone Electronics 8312 carries ROHS3 compliance. Both parts are REACH unaffected. Selection between these parts should be based on availability, lead time, and established supplier relationships, as the dimensional and material specifications are identical.

Frequently Asked Questions (FAQ)

Q: Can the Keystone Electronics 8312 directly replace the LEDS2M-140-01 in existing designs?

A: Yes. Both parts share identical LED type (T1 3/4), height (0.140"/4.66mm), material (nylon), and color (natural) specifications. No design modification is required for substitution.

Q: Are there compliance differences between these parts?

A: Both parts are REACH unaffected. The LEDS2M-140-01 carries RoHS compliance, while the 8312 carries ROHS3 compliance. Both certifications satisfy current regulatory requirements for electronic component applications.

Q: Does packaging format affect substitution?

A: Both parts are supplied in bulk packaging. Packaging format is identical and does not impact functional substitution.

Q: What parameters must remain constant for a valid substitute?

A: LED type, physical height, material composition, and color must match exactly. These parameters determine mechanical fit and functional compatibility in T1 3/4 LED mounting applications.
