LED Spacer LEDS2E-14-01 Equivalent & Substitute Parts

Part Overview

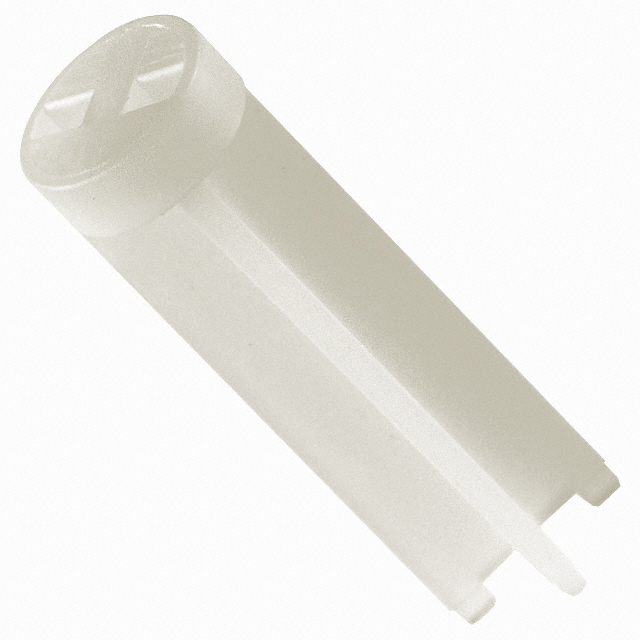

The LEDS2E-14-01 is a T1 3/4 LED standoff spacer manufactured by Essentra Components. This natural nylon spacer measures 0.875" (22.22mm) in length and is designed for T1 3/4 LED applications. The part is currently active in production with 1,587 units in stock. LED spacers are essential components in electronic assemblies, providing mechanical support and precise positioning for LED leads during PCB mounting and soldering operations. Equivalent substitute parts may be required due to supply chain considerations, inventory availability, or design flexibility within specified parameter tolerances.

Substiute Parts

LEDS2E-14-01

Essentra ComponentsIn Stock: 1628LEDS2E-14-01 Datasheet

Current PartRFQ

LEDS2M-900-01

Essentra ComponentsIn Stock: 3812LEDS2M-900-01 Datasheet

Parametric EquivalentRFQ

8340

Keystone ElectronicsIn Stock: 21888340 Datasheet

Parametric EquivalentRFQ

8341

Keystone ElectronicsIn Stock: 31668341 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the LEDS2E-14-01 are qualified based on the following critical parameters:

• LED Type: All substitutes must support T1 3/4 LED applications
• Material: All substitutes must be natural nylon
• Color: All substitutes must be natural
• Length Tolerance: Substitutes are grouped by length variation (0.850", 0.875", 0.900")
• Compliance: All substitutes must maintain RoHS and REACH compliance status
• Packaging: All substitutes are supplied in bulk packaging

The LEDS2E-14-01 has two primary substitute groups: parts with matching 0.900" length (LEDS2M-900-01, 8341) and parts with 0.850" length (8340). Length variations within these groups remain within acceptable mechanical tolerances for T1 3/4 LED standoff applications.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts maintain active product status and full compliance with RoHS and REACH regulations. Selection between LEDS2E-14-01 and its substitutes should be based on length requirements specific to the application:

• LEDS2M-900-01 and 8341 are suitable for applications requiring 0.900" (22.86mm) standoff height
• 8340 is suitable for applications requiring 0.850" (21.59mm) standoff height
• LEDS2E-14-01 remains the specified part for 0.875" (22.22mm) standoff height

All parts are manufactured from natural nylon and support T1 3/4 LED configurations. Keystone Electronics substitutes (8340, 8341) carry ROHS3 certification, while Essentra Components parts carry standard RoHS compliance. Both certification levels satisfy regulatory requirements.

Frequently Asked Questions (FAQ)

Q: Can LEDS2M-900-01 be used as a direct replacement for LEDS2E-14-01?

A: LEDS2M-900-01 is a parametric equivalent for T1 3/4 LED standoff applications. The primary difference is length: LEDS2M-900-01 measures 0.900" versus LEDS2E-14-01 at 0.875". This 0.025" (0.64mm) difference must be evaluated against your specific mechanical clearance and positioning requirements.

Q: What is the difference between 8340 and 8341?

A: Both are Keystone Electronics T1 3/4 LED spacers in natural nylon. The key distinction is length: 8340 measures 0.850" (21.59mm) while 8341 measures 0.900" (22.86mm). Select based on your required standoff height.

Q: Are all substitute parts RoHS compliant?

A: Yes. LEDS2E-14-01 and LEDS2M-900-01 carry RoHS Compliant certification. Parts 8340 and 8341 carry ROHS3 Compliant certification. Both compliance levels satisfy regulatory requirements for this product category.

Q: Do all parts have the same REACH status?

A: Yes. All parts listed—LEDS2E-14-01, LEDS2M-900-01, 8340, and 8341—have REACH Unaffected status.

Q: Can I mix different substitute parts in the same assembly?

A: All substitute parts are natural nylon T1 3/4 LED spacers supplied in bulk packaging. Mixing parts with different lengths (0.850", 0.875", 0.900") in a single assembly is possible only if your design accommodates the resulting height variations.

Q: Which substitute has the highest inventory availability?

A: LEDS2M-900-01 has the highest inventory with 3,724 units in stock, followed by 8341 with 3,094 units, 8340 with 2,088 units, and LEDS2E-14-01 with 1,587 units.
