LEDS1E-10-01 Equivalent & Substitute Parts

Part Overview

The LEDS1E-10-01 is a T-1 LED spacer manufactured by Essentra Components, designed as a natural nylon standoff for T1 LED applications. This component is currently active in production with 1,518 units in stock. LED spacers serve as mechanical positioning and isolation elements in LED circuit assemblies, maintaining proper alignment and clearance between the LED and the mounting surface.

Substitute parts are identified when equivalent functional performance can be achieved through components sharing the same core electrical and mechanical parameters: T1 LED compatibility, natural nylon material construction, and comparable dimensional specifications.

Substiute Parts

LEDS1E-10-01

Essentra ComponentsIn Stock: 1578LEDS1E-10-01 Datasheet

Current PartRFQ

7054

Keystone ElectronicsIn Stock: 8287054 Datasheet

Parametric EquivalentRFQ

7055

Keystone ElectronicsIn Stock: 7847055 Datasheet

Parametric EquivalentRFQ

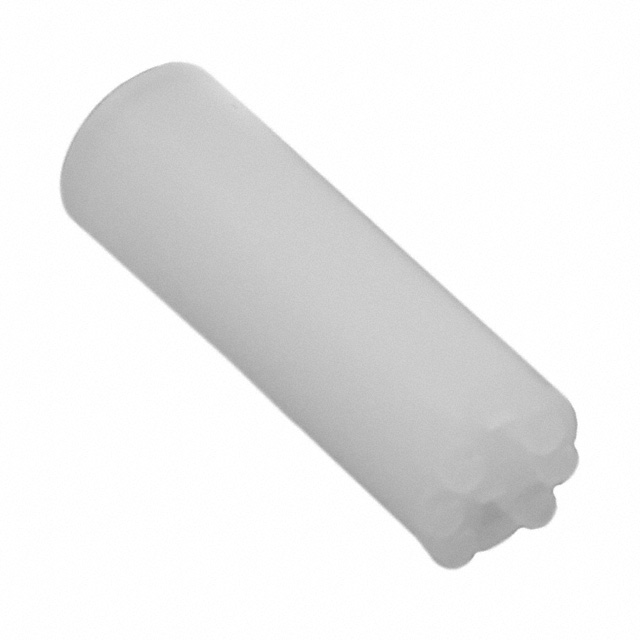

7375

Keystone ElectronicsIn Stock: 32947375 Datasheet

Parametric EquivalentRFQ

7376

CEC IndustriesIn Stock: 9977376 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LEDS1E-10-01 is determined by the following parameters:

• LED Type Match: All substitute parts must support T1 LED applications
• Material Consistency: Natural nylon construction required for mechanical and thermal compatibility
• Dimensional Tolerance: Length specifications within ±0.050" (1.27mm) of the primary part are considered functionally equivalent
• Regulatory Compliance: RoHS and REACH status must meet or exceed the primary part requirements
• Product Status: Active parts are preferred; obsolete parts are listed with status notation

Based on these criteria, the following parts qualify as parametric equivalents:

• 7375 (Keystone Electronics): T1 LED spacer, natural nylon, 0.600" length, active status
• 7054 (Keystone Electronics): T1 LED spacer, natural nylon, 0.600" length, obsolete status
• 7055 (Keystone Electronics): T1 LED spacer, natural nylon, 0.650" length, obsolete status

The part 7376 (CEC Industries) does not qualify as a substitute. Although listed in the cross-reference data, it is a lamp assembly (28V T-1.75 Bi-Pin), not an LED spacer, and therefore does not share the functional purpose or mechanical compatibility of the LEDS1E-10-01.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: LEDS1E-10-01 remains the recommended choice for new designs. The part is in active production status with robust inventory availability and meets current RoHS compliance requirements.

First Alternative: Part 7375 (Keystone Electronics) is the preferred substitute when LEDS1E-10-01 is unavailable. This part maintains active product status, offers the highest inventory level (3,273 units), and meets ROHS3 compliance. The length differential of 0.025" (0.64mm) falls within acceptable mechanical tolerance for T1 LED spacer applications.

Secondary Alternatives: Parts 7054 and 7055 are available as substitutes but carry obsolete product status. These parts should be selected only when active alternatives are exhausted and design specifications accommodate the dimensional variations (7054: 0.025" shorter; 7055: 0.025" longer than the primary part).

Not Recommended: Part 7376 is not suitable for substitution. This component is a lamp assembly with different functional purpose, electrical characteristics (28V rating), and mechanical form factor (T-1.75 Bi-Pin base), making it incompatible with applications designed for the LEDS1E-10-01 LED spacer.

Frequently Asked Questions (FAQ)

Q: Can 7375 be used as a direct replacement for LEDS1E-10-01?

A: Yes. Both parts are T1 LED spacers constructed from natural nylon with active product status and equivalent regulatory compliance. The 0.025" length difference (7375 is 0.600" versus LEDS1E-10-01 at 0.625") is within standard mechanical tolerance for LED positioning applications and does not affect functional compatibility.

Q: Why are 7054 and 7055 listed as substitutes if they are obsolete?

A: Obsolete parts are included in the cross-reference for applications where existing inventory must be maintained or where design specifications can accommodate the dimensional variations. However, active parts (LEDS1E-10-01 and 7375) are preferred for new production and design implementations.

Q: What is the significance of the length differences between substitute parts?

A: T1 LED spacers function as mechanical standoffs. Length variations of ±0.050" are within acceptable tolerance for most LED circuit board layouts. The available substitutes range from 0.600" to 0.650", with the primary part at 0.625". Selection should be based on specific board clearance and LED positioning requirements in the target application.

Q: Is 7376 compatible with LEDS1E-10-01 applications?

A: No. Part 7376 is a lamp assembly, not an LED spacer. It serves a different functional purpose and has incompatible electrical (28V rating) and mechanical characteristics (T-1.75 Bi-Pin base). It cannot be substituted for the LEDS1E-10-01.

Q: Are all substitute parts RoHS compliant?

A: Yes. The primary part (LEDS1E-10-01) is RoHS Compliant, and all qualifying substitutes (7375, 7054, 7055) meet ROHS3 Compliant status, which represents an equivalent or higher level of regulatory compliance.

Q: Does packaging format affect substitution eligibility?

A: Packaging format (Bulk) is consistent across the primary part and active substitutes. This ensures compatibility with standard component handling and assembly processes. Obsolete parts (7054, 7055) have unspecified packaging but remain functionally equivalent based on core parameters.
