LEDM-3-19 LED Spacer Equivalent & Substitute Parts

Part Overview

The LEDM-3-19 is a T1 3/4 LED standoff spacer manufactured by Essentra Components. This black PVC component measures 0.748" (19.00mm) in length and is designed to provide mechanical spacing and alignment for T1 3/4 LED assemblies. The part maintains Active product status with full RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in production and maintenance applications.

Substiute Parts

LEDM-3-19

Essentra ComponentsIn Stock: 1248LEDM-3-19 Datasheet

Current PartRFQ

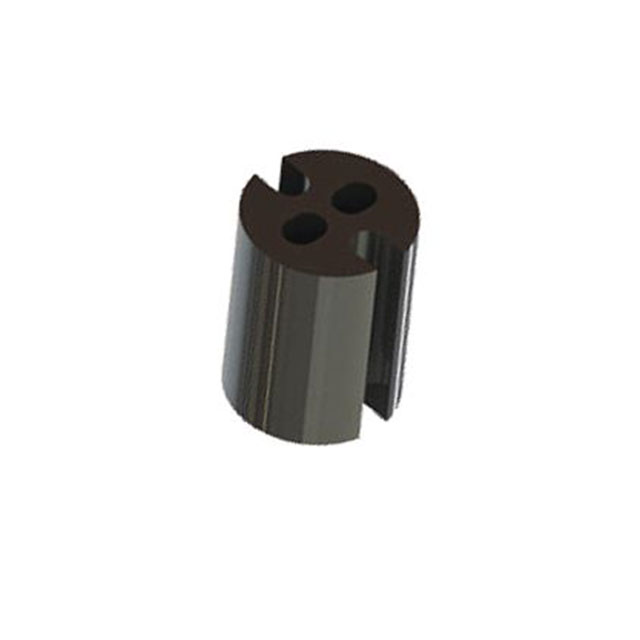

LEDS2-12-26

Essentra ComponentsIn Stock: 7589LEDS2-12-26 Datasheet

Parametric EquivalentRFQ

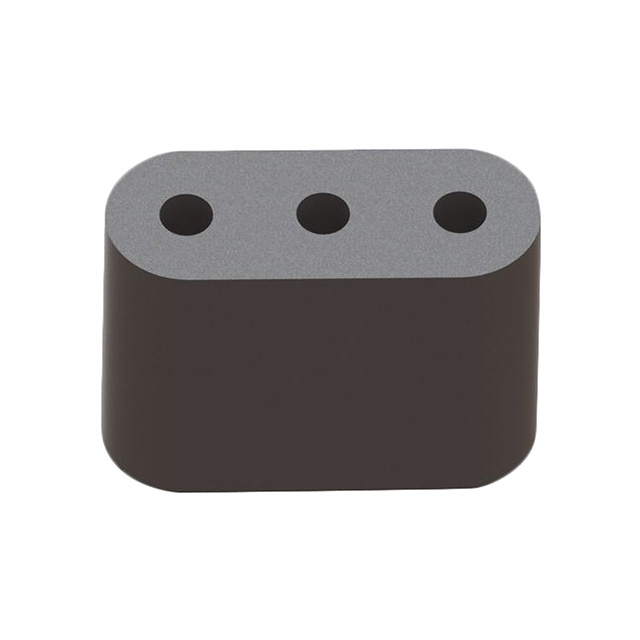

LEDS3-12-26

Essentra ComponentsIn Stock: 2287LEDS3-12-26 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LEDM-3-19 is determined by the following critical parameters:

• LED Type Compatibility: All substitute parts must support T1 3/4 LED form factor
• Length Tolerance: Acceptable length range is 0.748" to 0.750" (19.00mm to 19.05mm), representing standard manufacturing tolerances for this component class
• Material Composition: PVC material with or without flexibility designation
• Color Match: Black finish required
• Regulatory Compliance: RoHS compliance mandatory; REACH Unaffected status required

The identified substitutes LEDS2-12-26 and LEDS3-12-26 meet all critical parameters within acceptable mechanical tolerances.

Parameter Comparison

Engineering Selection Recommendations

All three parts—LEDM-3-19, LEDS2-12-26, and LEDS3-12-26—maintain Active product status with full RoHS compliance and REACH Unaffected certification. Selection between these parts is based on material flexibility requirements and length tolerance acceptance:

• LEDM-3-19: Standard PVC composition, 19.00mm nominal length
• LEDS2-12-26: Flexible PVC composition, 19.05mm nominal length, suitable for applications requiring material compliance
• LEDS3-12-26: Standard PVC composition, 19.05mm nominal length

The 0.05mm length differential (19.00mm to 19.05mm) falls within standard manufacturing tolerances for LED spacer components and does not affect functional performance in typical T1 3/4 LED assembly applications.

Frequently Asked Questions (FAQ)

Q: Can LEDS2-12-26 and LEDS3-12-26 be used interchangeably with LEDM-3-19?

A: Yes, within the specified mechanical tolerances. Both substitute parts share identical LED type (T1 3/4), color (Black), and regulatory compliance status. The length difference of 0.05mm is within standard manufacturing tolerance for this component category.

Q: What is the difference between LEDS2-12-26 and LEDS3-12-26?

A: LEDS2-12-26 features flexible PVC material, while LEDS3-12-26 uses standard PVC. Both maintain identical length (19.05mm) and LED type compatibility. Material flexibility may be relevant for applications requiring component compliance or vibration absorption.

Q: Are all substitute parts RoHS compliant?

A: Yes. LEDM-3-19, LEDS2-12-26, and LEDS3-12-26 are all RoHS Compliant with REACH Unaffected status.

Q: Does the 0.05mm length difference affect assembly compatibility?

A: No. The length variance between 19.00mm and 19.05mm represents standard manufacturing tolerance for T1 3/4 LED spacer components and does not impact mechanical fit or electrical performance in standard LED assembly applications.

Q: What packaging formats are available?

A: LEDM-3-19 is available in standard packaging. LEDS2-12-26 and LEDS3-12-26 are supplied in Bulk packaging format.
