LEDM-3-02 Equivalent & Substitute Parts

Part Overview

The LEDM-3-02 is a T1 3/4 LED spacer manufactured by Essentra Components, designed for use as a standoff in LED assembly applications. This black PVC component measures 0.079" (2.00mm) in length and is part of the Richco LEDM series. The part maintains Active product status and is RoHS Compliant. Substitute parts are identified when inventory availability requires alternative sourcing while maintaining identical electrical and mechanical specifications.

Substiute Parts

LEDM-3-02

Essentra ComponentsIn Stock: 968LEDM-3-02 Datasheet

Current PartRFQ

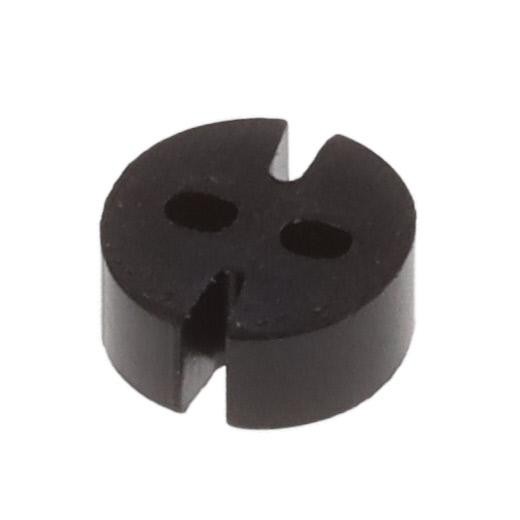

LEDM-1-02

Essentra ComponentsIn Stock: 9294LEDM-1-02 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The LEDM-3-02 has one identified substitute: LEDM-1-02. Substitution is valid based on matching parameters across all critical dimensions:

• LED Type: Both parts are T1 3/4 configuration
• Length: Both measure 0.079" (2.00mm)
• Material: Both are PVC construction
• Color: Both are Black
• RoHS Compliance: Both are RoHS Compliant
• Moisture Sensitivity Level: Both are MSL 1 (Unlimited)
• Base Product Series: Both belong to the Richco LEDM series

These parts are functionally equivalent for LED spacer applications requiring identical mechanical and environmental specifications.

Parameter Comparison

Engineering Selection Recommendations

Both LEDM-3-02 and LEDM-1-02 are Active products with identical compliance certifications. Selection between these parts should be based on inventory availability and lead time requirements. The LEDM-1-02 currently maintains higher inventory levels (9281 Pcs) compared to LEDM-3-02 (940 Pcs). Both parts satisfy RoHS Compliance and REACH Unaffected requirements for regulated applications. No performance differentiation exists between these parts for LED spacer applications.

Frequently Asked Questions (FAQ)

Q: Can LEDM-1-02 be used as a direct replacement for LEDM-3-02?

A: Yes. Both parts share identical specifications for LED type (T1 3/4), length (0.079"/2.00mm), material (PVC), color (Black), and compliance ratings (RoHS Compliant, MSL 1). Direct substitution is valid for all LED assembly applications.

Q: Are there any packaging differences between LEDM-3-02 and LEDM-1-02?

A: Both parts are supplied in Bulk packaging. No packaging format differences exist between these parts.

Q: What is the significance of the MSL 1 rating for these LED spacers?

A: MSL 1 (Unlimited) indicates these components have unlimited shelf life and require no special moisture control during storage or handling. This applies to both LEDM-3-02 and LEDM-1-02.

Q: Do both parts meet REACH compliance requirements?

A: Yes. Both LEDM-3-02 and LEDM-1-02 are REACH Unaffected, indicating they do not contain substances of concern under REACH regulations.
