LEDM-2-30 LED Spacer Equivalent & Substitute Parts

Part Overview

The LEDM-2-30 is a T1 3/4 LED standoff spacer manufactured by Essentra Components, designed for 3mm LED applications with a 30mm (1.181") length. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production and maintenance applications. The part is constructed from black PVC material and meets RoHS compliance requirements.

Substiute Parts

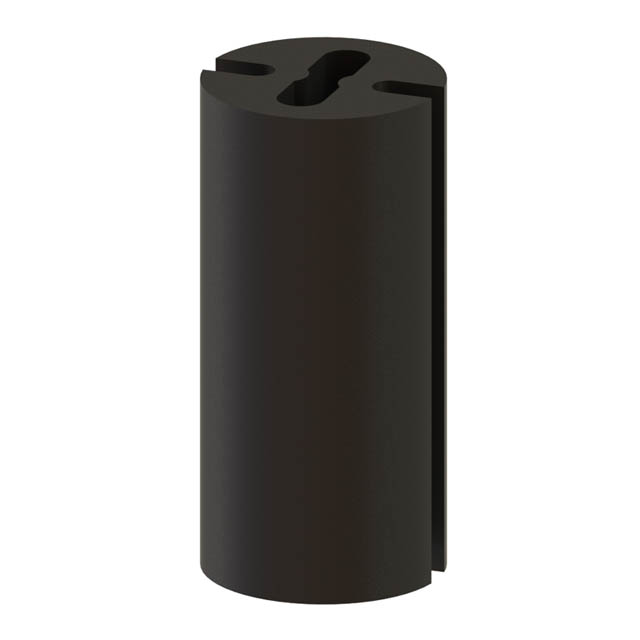

LEDM-2-30

Essentra ComponentsIn Stock: 1054LEDM-2-30 Datasheet

Current PartRFQ

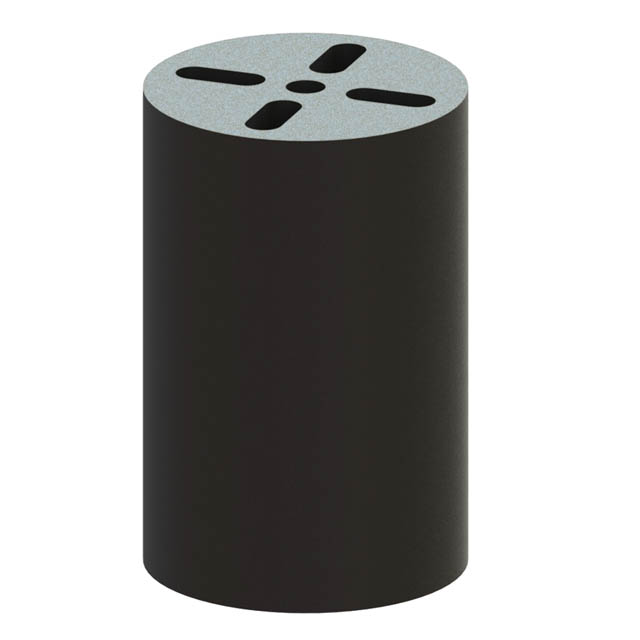

LEDM-3-30

Essentra ComponentsIn Stock: 1072LEDM-3-30 Datasheet

SimilarRFQ

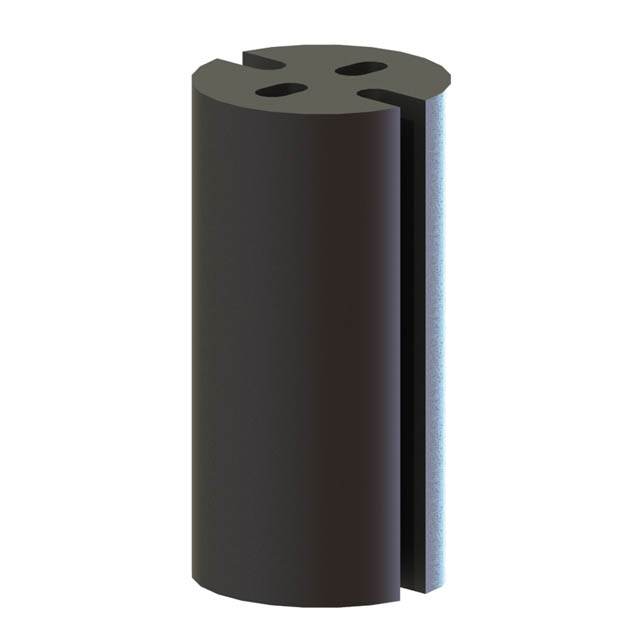

LEDM-1-29

Essentra ComponentsIn Stock: 1081LEDM-1-29 Datasheet

Parametric EquivalentRFQ

LEDM-3-29

Essentra ComponentsIn Stock: 1130LEDM-3-29 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the LEDM-2-30 are determined by compatibility across the following critical parameters: LED type (T1 3/4), material (PVC), color (black), and RoHS compliance status. Length variations within the LEDM series are acceptable substitutes when the mechanical envelope permits, as the standoff function remains consistent across the product line.

The LEDM-3-30 serves as a direct substitute with identical length specifications. The LEDM-1-29 and LEDM-3-29 represent parametric equivalents with a 1mm length reduction (29mm vs. 30mm), suitable for applications where this dimensional tolerance is acceptable.

All substitute parts maintain the same LED type classification, material composition, color specification, and compliance certifications as the original LEDM-2-30.

Parameter Comparison

Engineering Selection Recommendations

The LEDM-3-30 is the primary substitute for the obsolete LEDM-2-30, offering identical dimensional and material specifications while maintaining active product status. Both parts are RoHS compliant and carry MSL rating 1, ensuring equivalent environmental and regulatory compliance.

The LEDM-1-29 and LEDM-3-29 are suitable alternatives when a 1mm length reduction is mechanically acceptable within the application. These parts maintain all critical compliance certifications and material properties of the original specification.

Selection between substitute options should be based on mechanical envelope requirements and current inventory availability of active parts.

Frequently Asked Questions (FAQ)

Q: Can LEDM-3-30 be used as a direct replacement for LEDM-2-30? A: Yes. The LEDM-3-30 maintains identical LED type (T1 3/4), length (30mm), color (black), material (PVC), and compliance certifications as the LEDM-2-30.

Q: What is the difference between LEDM-3-30 and LEDM-1-29? A: The LEDM-3-30 has a 30mm length, while LEDM-1-29 has a 29mm length. Both share the same LED type, color, and material. The 1mm difference may be significant depending on mechanical clearance requirements in your application.

Q: Are all substitute parts RoHS compliant? A: Yes. The LEDM-2-30 and all listed substitute parts (LEDM-3-30, LEDM-1-29, LEDM-3-29) are RoHS compliant.

Q: Why is LEDM-2-30 listed as obsolete? A: The LEDM-2-30 has been discontinued by the manufacturer. Active alternatives within the LEDM series are available to fulfill equivalent functional requirements.

Q: Can length variations affect LED standoff performance? A: LED standoff function is maintained across all listed parts. Length selection should be based on mechanical envelope and clearance specifications of your specific application.

Q: Are moisture sensitivity levels identical across all parts? A: Yes. All parts carry MSL rating 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
