Equivalent & Substitute Parts for LDD-1200LS
Part Overview

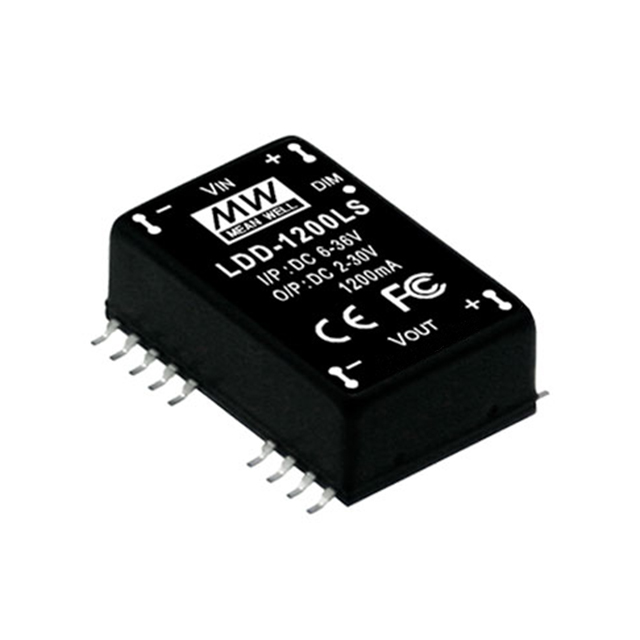

The LDD-1200LS (Manufacturer Part Number: LDD-1200LS; Manufacturer: MEAN WELL USA Inc.) is a constant current LED driver in the LDD-L Series. It utilizes a buck topology, operates with 1.2A output current and supports input voltages from 6V to 36V. This device is in an obsolete status, necessitating the identification of alternative models for ongoing designs or maintenance requirements.
Substiute Parts
Key Parameters
| Manufacturer Part Number | Manufacturer | Series | Product Status | Type | Topology | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output | Current - Output (Max) | Dimming | Features | Operating Temperature | Efficiency | Mounting Type | Package / Case | Size / Dimension | Approval Agency | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS |
|---|
Substitute Part Grouping Explanation
Substitution is based strictly on matching attributes within these key parameters:
- Output current: 1.2A
- Buck topology
- Constant current type
- Input voltage range compatibility
- Output voltage range compatibility
- Dimming capability
- Features set (remote on/off, SCP, OVP)
- Efficiency
- Mounting type and package/case configuration
- Operating temperature
- Regulatory compliance (CE, RoHS)
- Moisture Sensitivity Level (MSL)
- REACH Status
These factors allow direct evaluation of alternatives within the LED driver product category.
Parameter Comparison
| Manufacturer Part Number | Series | Product Status | Type | Topology | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output | Current - Output (Max) | Dimming | Features | Operating Temperature | Efficiency | Mounting Type | Package / Case | Size / Dimension | Approval Agency | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | ECCN | HTSUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LDD-1200LS | LDD-L | Obsolete | Constant Current | Buck | 1 | 6V | 36V | 2 ~ 30V | 1.2A | Analog, PWM | Remote On/Off, SCP | -40°C ~ 71°C | 95% | Surface Mount | 24-SMD Module, 18 Leads | 1.25" x 0.80" x 0.45" | CE | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8504.40.9580 |
| NLDD-1200H | NLDD-H | Active | Constant Current | Buck | 1 | 10V | 59V | 6 ~ 52V | 1.2A | PWM | Remote On/Off, OVP, SCP | -40°C ~ 50°C | 95% | Through Hole | 24-DIP Module, 9 Leads | 1.26" x 0.81" x 0.49" | CE, EAC | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8504.40.9580 |
Engineering Selection Recommendations
The LDD-1200LS is marked as obsolete, while the NLDD-1200H remains active in production. Both models possess ROHS3 compliance and REACH unaffected status, with similar regulatory certifications (CE approval). The NLDD-1200H supports comparable efficiency and maximum output current. Product selection between these alternatives should be based on product status and certification compliance.
Frequently Asked Questions (FAQ)
Q1: What are the primary criteria for substituting LDD-1200LS with NLDD-1200H?
A1: Substitution is determined by output current, topology, input/output voltage ranges, dimming capability, features, regulatory compliance, and package/mounting compatibility.
Q2: Are the mounting types the same between LDD-1200LS and NLDD-1200H?
A2: No, the LDD-1200LS uses surface mount (24-SMD Module, 18 Leads), while the NLDD-1200H is through hole (24-DIP Module, 9 Leads).
Q3: Is there a difference in product status between the parts?
A3: The LDD-1200LS is obsolete; the NLDD-1200H is active.
Q4: Are the substitute models certified for CE and RoHS compliance?
A4: Both LDD-1200LS and NLDD-1200H carry CE approval and are ROHS3 compliant.
Q5: Can both drivers operate under similar environmental conditions?
A5: Both operate at -40°C minimum. LDD-1200LS reaches up to +71°C; NLDD-1200H up to +50°C.
Q6: Is there a difference in dimming capabilities?
A6: The LDD-1200LS supports both analog and PWM dimming. The NLDD-1200H supports PWM dimming.
Q7: Do both modules have remote on/off and short circuit protection features?
A7: Yes, both parts include remote on/off and short circuit protection. NLDD-1200H additionally features overvoltage protection.
Q8: What considerations are required for packaging and lead configuration?
A8: The package and lead configuration differ: confirm physical compatibility before substitution.
