LCMA630-12-1 Equivalent & Substitute Parts

Part Overview

The LCMA630-12-1 is a copper compression metric lug terminal connector manufactured by Panduit Corp, designed for rectangular terminal applications. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure project feasibility. The part operates within the Pan-Lug™ series and maintains ROHS3 compliance for environmental standards adherence.

Substiute Parts

LCMA630-12-1

Panduit CorpIn Stock: 1022LCMA630-12-1 Datasheet

Current PartRFQ

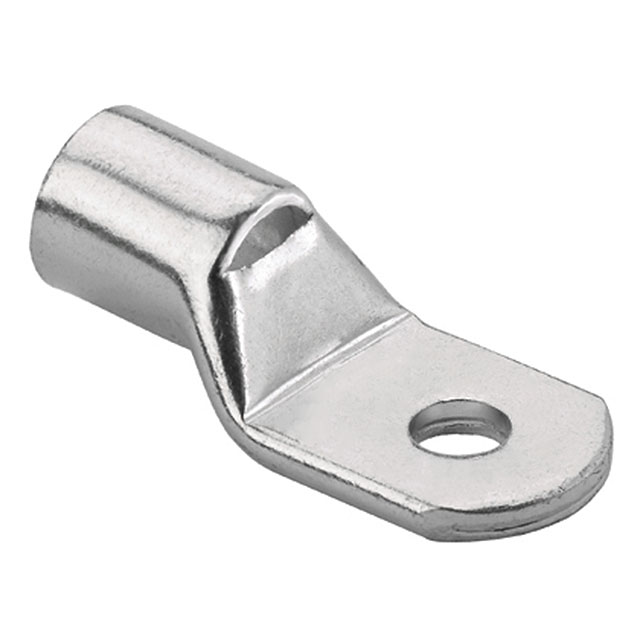

LCMA630-16-1

Panduit CorpIn Stock: 891LCMA630-16-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The LCMA630-12-1 shares a common base product number (LCMA) with the substitute part LCMA630-16-1, establishing direct product family lineage. Substitution validity is determined by the following criteria:

Substitution-Determining Parameters:

• Manufacturer consistency (Panduit Corp)
• Base product series alignment (LCMA)
• Regulatory compliance equivalence (ROHS3 Compliant, EAR99, HTSUS 8536.90.4000)
• Contact material specification (Copper)
• Terminal connector classification (Rectangular/Ring Terminal)
• Termination method (Crimp)
• Mounting configuration (Free Hanging/In-Line)

The LCMA630-16-1 represents an active product variant within the same product family, offering functional continuity for applications requiring copper compression terminal connectors with metric specifications.

Parameter Comparison

Engineering Selection Recommendations

LCMA630-16-1 as Primary Substitute:

The LCMA630-16-1 is the designated substitute for the obsolete LCMA630-12-1. Selection of this part is supported by:

• Product Status Alignment: The LCMA630-16-1 maintains active product status, ensuring ongoing availability and manufacturing support from Panduit Corp.
• Regulatory Compliance: Both parts maintain identical ROHS3 compliance, EAR99 classification, and HTSUS coding, satisfying environmental and trade regulatory requirements.
• Material Specification: Copper contact material with tin finish in the substitute part provides equivalent electrical conductivity and corrosion resistance characteristics.
• Termination Consistency: Both parts utilize crimp termination methodology, maintaining process compatibility with existing assembly procedures.
• Series Continuity: The LCMA630-16-1 belongs to the Pan-Lug™ series, representing the current product line evolution within the LCMA base product family.

The primary distinction between these parts resides in stud size specification (M12 versus M16), which must be evaluated against application-specific mounting requirements.

Frequently Asked Questions (FAQ)

Q: Why is the LCMA630-12-1 being discontinued?

A: The LCMA630-12-1 is classified as obsolete. The LCMA630-16-1 represents the active equivalent within the current Panduit Corp product portfolio for copper compression metric lug terminals.

Q: Are the LCMA630-12-1 and LCMA630-16-1 directly interchangeable?

A: Both parts share the LCMA base product number and maintain identical regulatory compliance (ROHS3, EAR99). The primary difference is the stud size specification: M12 versus M16. Interchangeability depends on the mounting stud size requirement in your application.

Q: What is the wire gauge capacity for the LCMA630-16-1?

A: The LCMA630-16-1 is rated for 630mm² wire gauge capacity, consistent with the metric compression lug classification.

Q: Does the LCMA630-16-1 include insulation?

A: The LCMA630-16-1 is specified as non-insulated. Applications requiring insulated terminals require evaluation of alternative product variants.

Q: What is the contact finish specification for the substitute part?

A: The LCMA630-16-1 features a tin contact finish, providing corrosion resistance and enhanced electrical conductivity compared to bare copper.

Q: Are both parts RoHS compliant?

A: Yes. Both the LCMA630-12-1 and LCMA630-16-1 maintain ROHS3 compliance, satisfying environmental regulatory requirements for restricted substance limitations.

Q: What is the mounting configuration for the LCMA630-16-1?

A: The LCMA630-16-1 is configured for free hanging (in-line) mounting, suitable for direct stud attachment applications.

Q: What packaging format is available for the LCMA630-16-1?

A: The LCMA630-16-1 is supplied in bulk packaging format.
