LCDX2/0-14AF-X Equivalent & Substitute Parts

Part Overview

The LCDX2/0-14AF-X is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 2/0 AWG wire termination with a 1/4 inch stud connection. This component is classified as obsolete, indicating it is no longer in active production. The terminal features a non-insulated copper construction with electro-tin contact finish, suitable for high-current electrical applications requiring reliable crimp-barrel termination.

Due to its obsolete status, locating equivalent substitute parts is necessary for ongoing maintenance, repair, and new assembly requirements. Active production alternatives within the Pan-Lug™ series provide functionally compatible solutions while maintaining compliance with current regulatory standards.

Substiute Parts

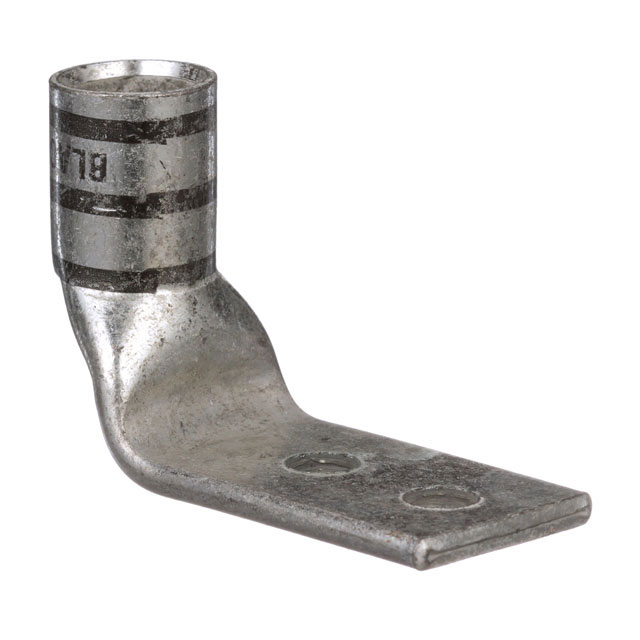

LCDX2/0-14AF-X

Panduit CorpIn Stock: 1119LCDX2/0-14AF-X Datasheet

Current PartRFQ

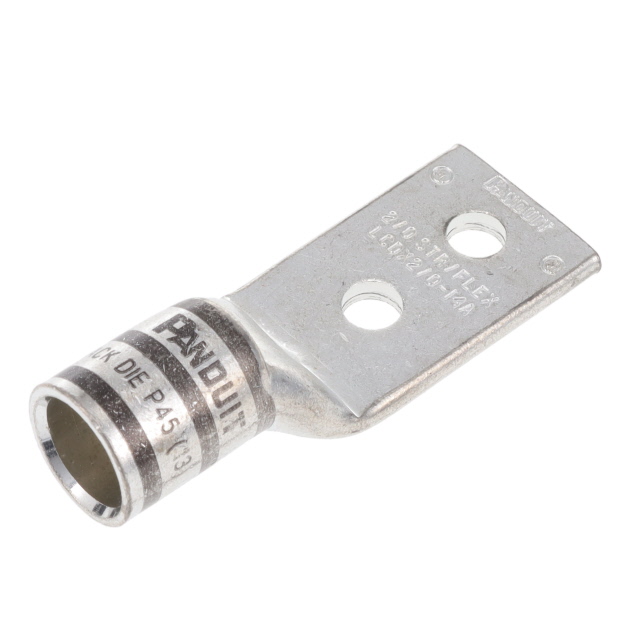

LCDX2/0-14A-X

Panduit CorpIn Stock: 754LCDX2/0-14A-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the LCDX2/0-14AF-X is determined by strict equivalence across the following critical parameters:

Wire Gauge Compatibility: Both the main part and substitute must accommodate 2/0 AWG wire, as this directly determines the barrel dimensions and crimp force requirements.

Stud/Tab Size: The 1/4 inch stud connection is a fixed mechanical interface requirement. Substitutes must maintain identical stud dimensions to ensure proper mounting and electrical contact.

Terminal Type and Geometry: The rectangular tongue configuration with two stud holes defines the mechanical form factor. Barrel ID (0.510"), barrel OD (0.640"), and ring ID (0.270") must remain constant to ensure proper wire seating and stud engagement.

Termination Method: Crimp-barrel termination is the specified connection technology. Substitutes must employ identical termination methodology.

Material and Finish Specifications: Copper contact material with electro-tin finish ensures consistent electrical conductivity and corrosion resistance. These specifications must be maintained.

Regulatory Compliance: RoHS3 compliance and REACH unaffected status are mandatory for substitution eligibility in regulated applications.

The LCDX2/0-14A-X meets all these criteria and is classified as an active production equivalent.

Parameter Comparison

Engineering Selection Recommendations

The LCDX2/0-14A-X is the direct equivalent substitute for the obsolete LCDX2/0-14AF-X. Both components share identical electrical and mechanical specifications across all critical parameters that determine functional compatibility.

Product Status Consideration: The LCDX2/0-14A-X maintains active production status, ensuring long-term availability and supply chain reliability. The obsolete status of the original part necessitates transition to this active equivalent for new designs and ongoing procurement.

Regulatory Compliance: Both parts maintain ROHS3 compliance and REACH unaffected status, confirming suitability for regulated markets and applications with environmental compliance requirements.

Mechanical and Electrical Equivalence: Identical wire gauge (2/0 AWG), stud size (1/4 inch), barrel dimensions, and contact specifications ensure direct functional replacement without circuit redesign or assembly modification.

Packaging Consideration: The LCDX2/0-14A-X is supplied in bulk packaging, which may differ from the original part's packaging configuration. Inventory management and handling procedures should account for this packaging difference.

Frequently Asked Questions (FAQ)

Q: Can the LCDX2/0-14A-X be used as a direct replacement for the LCDX2/0-14AF-X in existing assemblies?

A: Yes. The LCDX2/0-14A-X is electrically and mechanically equivalent to the LCDX2/0-14AF-X. All critical parameters including wire gauge, stud size, barrel dimensions, and contact specifications are identical, enabling direct substitution without assembly modification.

Q: What is the primary difference between these two part numbers?

A: The LCDX2/0-14AF-X is obsolete and no longer manufactured. The LCDX2/0-14A-X is the active production equivalent from Panduit Corp's Pan-Lug™ series. Both parts are functionally identical; the difference is production status and availability.

Q: Are there any compliance or certification differences between the two parts?

A: No. Both parts maintain identical RoHS3 compliance, REACH unaffected status, and ECCN/HTSUS classifications. They are equivalent for regulated applications.

Q: Does the bulk packaging of the LCDX2/0-14A-X affect its electrical or mechanical performance?

A: No. Packaging type does not affect component performance. Bulk packaging is a supply and handling consideration only. The terminal itself functions identically regardless of packaging format.

Q: What wire gauge does this terminal accommodate?

A: Both the LCDX2/0-14AF-X and LCDX2/0-14A-X are designed for 2/0 AWG wire termination. This specification is fixed and cannot be altered.

Q: What is the stud size for this terminal?

A: Both terminals feature a 1/4 inch stud connection. This mechanical interface is standardized across both part numbers.

Q: Can this terminal be used with different termination methods?

A: No. Both parts are specified for crimp-barrel termination only. This is the sole termination method supported by these components.
