LCDX2/0-12F-X Equivalent & Substitute Parts

Part Overview

The LCDX2/0-12F-X is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 2/0 AWG wire applications with a 1/2 stud configuration. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Substiute Parts

LCDX2/0-12F-X

Panduit CorpIn Stock: 746LCDX2/0-12F-X Datasheet

Current PartRFQ

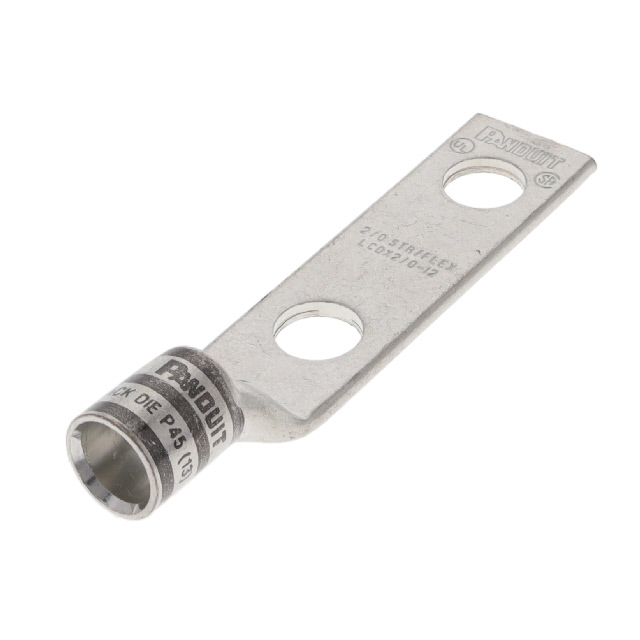

LCDX2/0-12-X

Panduit CorpIn Stock: 748LCDX2/0-12-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LCDX2/0-12F-X is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Wire gauge: 2/0 AWG
• Termination method: Crimp, Barrel
• Contact material: Copper
• Contact finish: Electro-Tin

Mechanical Compatibility Parameters:

• Terminal type: Rectangular Tongue
• Stud/tab size: 1/2 Stud
• Terminal style: Two Stud Holes
• Tab thickness: 0.130" (3.30mm)
• Barrel ID: 0.510" (12.95mm)
• Barrel OD: 0.640" (16.26mm)
• Ring ID: 0.530" (13.46mm)

Compliance Parameters:

• RoHS Status: ROHS3 Compliant
• Manufacturer: Panduit Corp
• Series: Pan-Lug™

The substitute part LCDX2/0-12-X maintains full equivalence across all critical parameters while offering active product status and bulk packaging availability.

Parameter Comparison

Engineering Selection Recommendations

The LCDX2/0-12-X is the direct equivalent substitute for the obsolete LCDX2/0-12F-X. Both components are manufactured by Panduit Corp within the Pan-Lug™ series and maintain identical electrical and mechanical specifications across all critical parameters.

Selection Basis:

The substitute part achieves full functional equivalence through:

• Identical wire gauge rating (2/0 AWG)
• Matching barrel and ring dimensions
• Equivalent contact material and finish specifications
• Identical tab thickness and stud configuration
• Equivalent RoHS3 compliance certification

The LCDX2/0-12-X carries active product status, ensuring continued availability and manufacturing support. Both components are currently in stock with comparable inventory levels. The substitute part is available in bulk packaging, suitable for production procurement workflows.

Frequently Asked Questions (FAQ)

Q: Can LCDX2/0-12-X be used as a direct replacement for LCDX2/0-12F-X?

A: Yes. The LCDX2/0-12-X is a direct equivalent substitute. Both components share identical electrical and mechanical specifications, including wire gauge, barrel dimensions, contact material, and tab thickness. The substitute part is manufactured by the same supplier within the same product series.

Q: What is the primary difference between these two part numbers?

A: The LCDX2/0-12F-X is classified as obsolete, while the LCDX2/0-12-X maintains active product status. The substitute part is available in bulk packaging. Both components are functionally identical for application purposes.

Q: Are the mounting configurations compatible?

A: The LCDX2/0-12F-X specifies Free Hanging (In-Line), Right Angle mounting, while the LCDX2/0-12-X specifies Free Hanging (In-Line) mounting. Both configurations support the same stud attachment method and terminal orientation for 1/2 stud applications.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the LCDX2/0-12F-X and LCDX2/0-12-X are ROHS3 compliant and REACH unaffected. Both components carry identical regulatory classifications.

Q: What wire gauge applications are supported?

A: Both components are rated for 2/0 AWG wire termination using crimp barrel methodology. The barrel dimensions (0.510" ID, 0.640" OD) and ring ID (0.530") are identical across both parts.

Q: Is packaging a consideration for substitution?

A: Packaging differences do not affect functional compatibility. The LCDX2/0-12-X is supplied in bulk packaging, suitable for production environments. The original part packaging specification is not provided. Both components are new original stock.
