LCDN2/0-14AF-X Equivalent & Substitute Parts

Part Overview

The LCDN2/0-14AF-X is a copper compression lug terminal manufactured by Panduit Corp, classified as a rectangular tongue connector designed for 2/0 AWG wire termination onto a 1/4" stud. This component is part of the Pan-Lug™ series and features a two-stud hole configuration with electro-tin contact finish. The part is currently listed as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity for applications requiring this terminal specification.

Substiute Parts

LCDN2/0-14AF-X

Panduit CorpIn Stock: 1037LCDN2/0-14AF-X Datasheet

Current PartRFQ

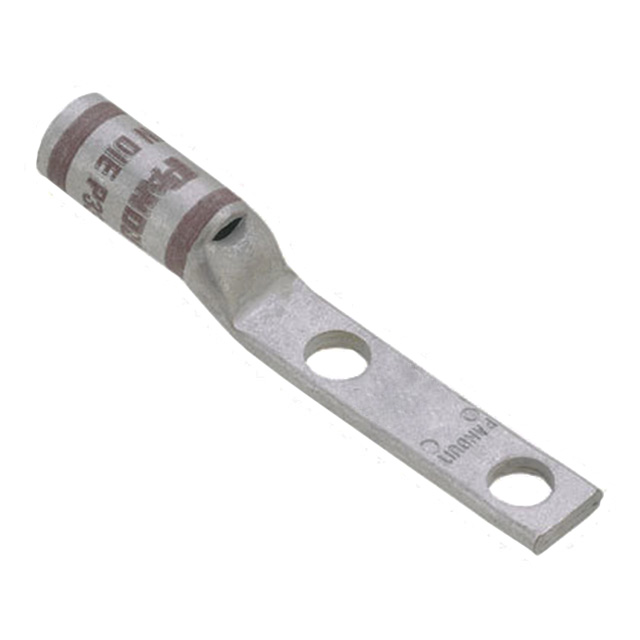

LCDN2/0-14A-X

Panduit CorpIn Stock: 956LCDN2/0-14A-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The LCDN2/0-14AF-X has one identified substitute within the Panduit Pan-Lug™ series: LCDN2/0-14A-X. Substitution eligibility is determined by the following critical parameters that must remain constant:

• Wire gauge: 2/0 AWG
• Stud/tab size: 1/4 Stud
• Terminal type: Rectangular Tongue
• Terminal style: Two Stud Holes
• Termination method: Crimp, Barrel
• Contact material: Copper
• Contact finish: Electro-Tin
• Barrel inner diameter: 0.450" (11.43mm)
• Barrel outer diameter: 0.580" (14.73mm)
• Ring inner diameter: 0.270" (6.86mm)
• Insulation: Non-Insulated

The substitute part LCDN2/0-14A-X maintains all critical electrical and mechanical parameters required for direct functional equivalence. Variations in tab thickness and overall length do not affect the core termination and mounting interface specifications.

Parameter Comparison

Engineering Selection Recommendations

The LCDN2/0-14A-X is the direct active equivalent for the obsolete LCDN2/0-14AF-X. Both components are manufactured by Panduit Corp within the Pan-Lug™ series and share identical electrical and mechanical interface specifications. The substitute part is currently in active production status with confirmed inventory availability.

Both parts maintain ROHS3 compliance and identical export classification (EAR99), ensuring regulatory consistency. The minor variation in tab thickness (0.010" difference) and the availability of overall length specification for the substitute part do not alter the functional performance or mounting compatibility in applications requiring 2/0 AWG copper compression lugs with 1/4" stud termination.

Selection of LCDN2/0-14A-X eliminates obsolescence risk while maintaining full electrical and mechanical compatibility with existing circuit designs and assembly processes.

Frequently Asked Questions (FAQ)

Q: Can LCDN2/0-14A-X be used as a direct replacement for LCDN2/0-14AF-X?

A: Yes. Both components share identical wire gauge (2/0 AWG), stud size (1/4"), terminal type (rectangular tongue), barrel dimensions, and contact specifications. The substitute is the active production equivalent.

Q: What is the significance of the tab thickness difference between the two parts?

A: The tab thickness variation (0.130" versus 0.140") represents a manufacturing tolerance refinement in the active production version. This difference does not affect the stud mounting interface or electrical performance in the specified application.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts are ROHS3 compliant, share identical ECCN (EAR99) and HTSUS classifications, and are manufactured to the same material and finish specifications.

Q: What packaging differences exist between the main part and substitute?

A: The main part (LCDN2/0-14AF-X) packaging is not specified. The substitute (LCDN2/0-14A-X) is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Is the substitute part currently available?

A: Yes. LCDN2/0-14A-X is listed as active product status with 864 pieces in current inventory.

Q: Are both parts suitable for the same wire gauge and stud size applications?

A: Yes. Both components are specified for 2/0 AWG wire termination onto 1/4" studs with identical barrel and ring dimensions, ensuring compatibility in all applications requiring these specifications.
