LCC2/0-14BH-X Equivalent & Substitute Parts

Part Overview

The LCC2/0-14BH-X is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 2/0 AWG wire termination with a 1/4 inch stud connection. This component is part of the Pan-Lug™ series and features a crimp barrel termination method with electro-tin contact finish on copper material. The product is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity for applications requiring this terminal type and electrical specifications.

Substiute Parts

LCC2/0-14BH-X

Panduit CorpIn Stock: 949LCC2/0-14BH-X Datasheet

Current PartRFQ

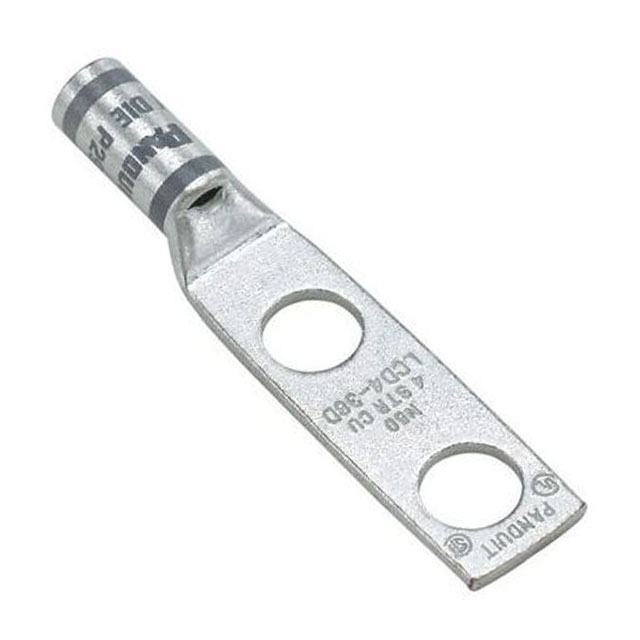

LCD2/0-14B-X

Panduit CorpIn Stock: 1041LCD2/0-14B-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the LCC2/0-14BH-X is determined by strict equivalence across the following critical parameters:

Wire Gauge Compatibility: The substitute part must accommodate 2/0 AWG wire termination.

Stud/Tab Size: The 1/4 inch stud connection is a fixed mechanical interface requirement.

Barrel Dimensions: Barrel ID of 0.450" (11.43mm) and barrel OD of 0.580" (14.73mm) establish the crimp interface specification.

Ring ID: The 0.270" (6.86mm) ring ID defines the stud hole diameter compatibility.

Tab Thickness: The 0.130" (3.30mm) thickness is a structural parameter for mounting applications.

Terminal Style: Two stud holes configuration must be maintained.

Contact Material and Finish: Copper with electro-tin finish ensures electrical performance and corrosion resistance.

Termination Method: Crimp barrel termination is the required connection technique.

Compliance Standards: RoHS3 compliance and REACH unaffected status must be maintained.

The LCD2/0-14B-X meets all these critical parameters while offering active product status, making it a direct functional equivalent for the obsolete LCC2/0-14BH-X.

Parameter Comparison

Engineering Selection Recommendations

The LCD2/0-14B-X is the appropriate substitute for the obsolete LCC2/0-14BH-X based on the following engineering criteria:

Product Status: The LCD2/0-14B-X maintains active product status with current manufacturing and availability, eliminating supply chain risk associated with the obsolete LCC2/0-14BH-X.

Electrical Equivalence: Both parts share identical wire gauge (2/0 AWG), barrel dimensions, ring ID, contact material (copper), and contact finish (electro-tin), ensuring equivalent electrical performance in the application circuit.

Mechanical Compatibility: The 1/4 inch stud connection, two stud hole configuration, and 0.130" tab thickness are identical across both parts, confirming direct mechanical interchangeability in existing mounting structures.

Compliance Alignment: Both parts maintain ROHS3 compliance, REACH unaffected status, and identical ECCN and HTSUS classifications, satisfying regulatory requirements without modification.

Termination Compatibility: The crimp barrel termination method and identical barrel dimensions (ID 0.450", OD 0.580") ensure that existing crimping tools and procedures remain valid for the substitute part.

Frequently Asked Questions (FAQ)

Q: Can the LCD2/0-14B-X be used as a direct replacement for the LCC2/0-14BH-X?

A: Yes. The LCD2/0-14B-X is a direct functional equivalent. Both parts share identical wire gauge (2/0 AWG), stud size (1/4 inch), barrel dimensions, tab thickness, contact material, and termination method. The primary difference is terminal type designation (tongue versus lug), which does not affect electrical or mechanical compatibility in applications requiring these specifications.

Q: What are the critical parameters that determine substitution eligibility?

A: Substitution eligibility is determined by equivalence in the following parameters: wire gauge (2/0 AWG), stud/tab size (1/4 inch), terminal style (two stud holes), tab thickness (0.130"), barrel ID (0.450"), barrel OD (0.580"), ring ID (0.270"), contact material (copper), contact finish (electro-tin), termination method (crimp barrel), and compliance status (ROHS3, REACH unaffected).

Q: Are there packaging differences between the main part and substitute?

A: The LCC2/0-14BH-X packaging specification is not provided in the available data. The LCD2/0-14B-X is supplied in bulk packaging. Packaging configuration should be confirmed with the supplier based on application requirements.

Q: Does the terminal type difference (tongue versus lug) affect application compatibility?

A: Terminal type designation reflects the connector geometry. Both parts maintain identical stud connection specifications (1/4 inch, two stud holes) and barrel dimensions, ensuring mechanical compatibility with standard stud-mounted applications. Application-specific requirements should be evaluated based on the mounting interface design.

Q: Are the compliance certifications identical between both parts?

A: Yes. Both the LCC2/0-14BH-X and LCD2/0-14B-X maintain ROHS3 compliance, REACH unaffected status, EAR99 ECCN classification, and 8536.90.4000 HTSUS code, confirming regulatory equivalence.

Q: What is the inventory status of the substitute part?

A: The LCD2/0-14B-X has 949 pieces in stock as new original inventory, providing immediate availability for production requirements.
