LCC2/0-12D-X Equivalent & Substitute Parts

Part Overview

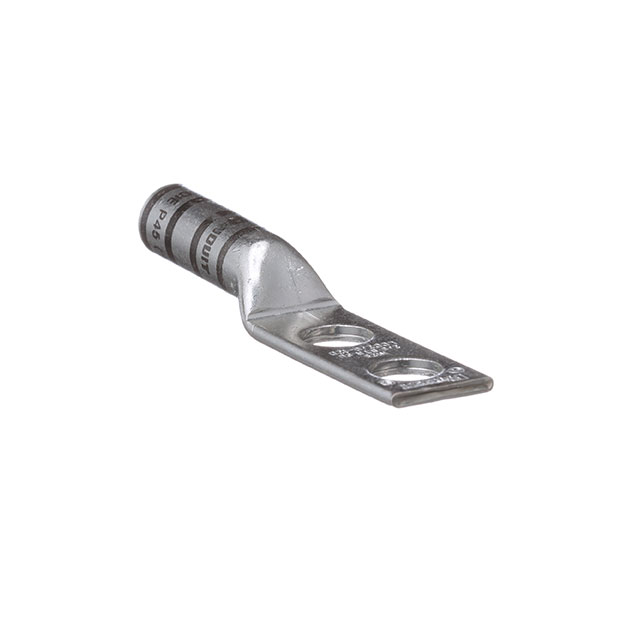

The LCC2/0-12D-X is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 2/0 AWG wire applications with a 1/2 stud configuration. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Substiute Parts

LCC2/0-12D-X

Panduit CorpIn Stock: 685LCC2/0-12D-X Datasheet

Current PartRFQ

LCC2/0-12-X

Panduit CorpIn Stock: 887LCC2/0-12-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LCC2/0-12D-X is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Wire Gauge: 2/0 AWG
• Stud/Tab Size: 1/2 Stud
• Terminal Type: Rectangular Tongue
• Termination Method: Crimp, Barrel
• Contact Material: Copper
• Contact Finish: Electro-Tin
• Ring ID: 0.530" (13.46mm)
• Tab Thickness: 0.130" (3.30mm)

The substitute part LCC2/0-12-X meets all mandatory matching parameters. Variations in overall length and barrel dimensions do not affect functional compatibility for the specified wire gauge and stud configuration. Both parts maintain ROHS3 compliance and identical contact material specifications.

Parameter Comparison

Engineering Selection Recommendations

The LCC2/0-12-X is the direct active equivalent for the obsolete LCC2/0-12D-X. Both components are manufactured by Panduit Corp within the Pan-Lug™ series and maintain identical electrical and mechanical specifications for the 2/0 AWG wire gauge and 1/2 stud configuration.

Selection Basis:

The LCC2/0-12-X demonstrates active product status, ensuring ongoing availability and supply chain support. Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying current regulatory requirements. The substitute part is available in bulk packaging with 847 pieces in stock, compared to the obsolete part's limited inventory of 647 pieces.

The variation in overall length (4.980" versus 4.070") reflects design optimization in the active product line and does not compromise functional compatibility. The barrel diameter specifications remain within acceptable tolerances for the specified wire gauge and crimp termination process.

Frequently Asked Questions (FAQ)

Q: Can LCC2/0-12-X directly replace LCC2/0-12D-X in existing designs?

A: Yes. Both components share identical wire gauge (2/0 AWG), stud size (1/2), terminal type (rectangular tongue), contact material (copper), and contact finish (electro-tin) specifications. The increased overall length of the substitute part does not affect electrical or mechanical compatibility for the specified application.

Q: What is the significance of the overall length difference between these parts?

A: The LCC2/0-12-X has an overall length of 4.980" compared to the LCC2/0-12D-X at 4.070". This dimensional variation reflects design updates in the active product line. The difference does not impact the crimp barrel interface or stud mounting compatibility.

Q: Are there packaging differences between these parts?

A: The LCC2/0-12D-X is supplied in standard packaging, while the LCC2/0-12-X is available in bulk packaging. Both are new original stock from Panduit Corp.

Q: Do both parts meet current regulatory compliance standards?

A: Yes. Both the LCC2/0-12D-X and LCC2/0-12-X are ROHS3 compliant and REACH unaffected, satisfying current environmental and regulatory requirements.

Q: What is the barrel diameter specification for the substitute part?

A: The LCC2/0-12-X has a barrel ID of 0.450" (11.43mm) and barrel OD of 0.580" (14.73mm), compared to the main part's barrel ID of 0.440" (11.18mm) and barrel OD of 0.570" (14.48mm). These specifications remain within acceptable tolerances for 2/0 AWG crimp termination.

Q: Is the LCC2/0-12-X suitable for new procurement?

A: Yes. The LCC2/0-12-X carries active product status and is the current production equivalent within the Pan-Lug™ series for 2/0 AWG rectangular tongue terminals with 1/2 stud configuration.
