LCAX1-10F-X Equivalent & Substitute Parts

Part Overview

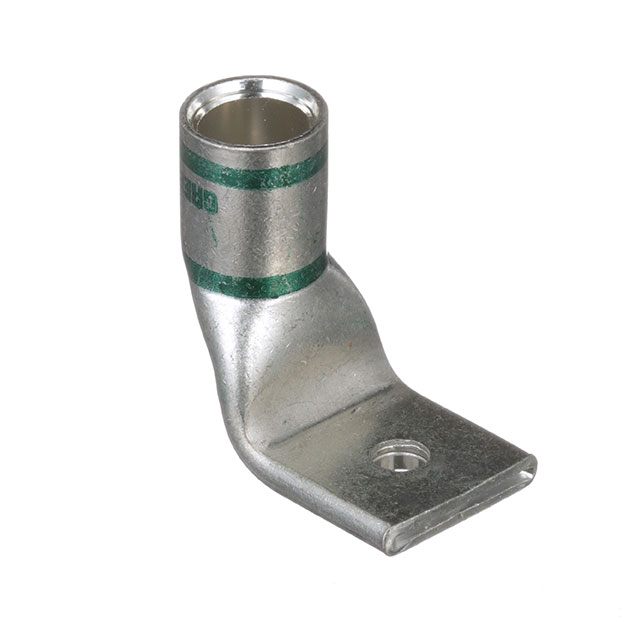

The LCAX1-10F-X is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 1 AWG wire gauge applications with a #10 stud connection. This component is classified as obsolete, necessitating identification of active equivalent parts for continued procurement and system maintenance. The terminal features non-insulated copper construction with electro-tin contact finish, suitable for crimp barrel termination in free-hanging inline configurations.

Substiute Parts

LCAX1-10F-X

Panduit CorpIn Stock: 857LCAX1-10F-X Datasheet

Current PartRFQ

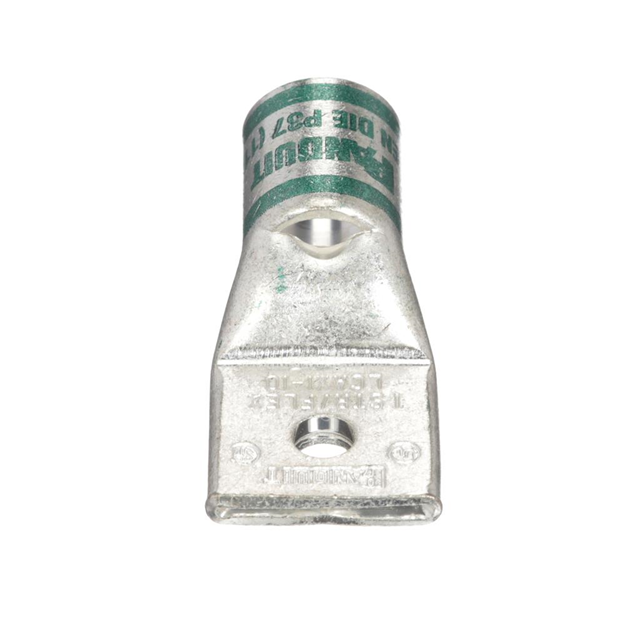

LCAX1-10-X

Panduit CorpIn Stock: 860LCAX1-10-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LCAX1-10F-X is determined by strict equivalence across the following critical parameters:

• Wire gauge specification (1 AWG)
• Stud size designation (#10)
• Terminal type classification (Rectangular Tongue)
• Tab thickness (0.120" / 3.05mm)
• Outer width dimension (0.760" / 19.30mm)
• Termination method (Crimp, Barrel)
• Contact material and finish (Copper with Electro-Tin)
• Insulation status (Non-Insulated)
• Regulatory compliance (ROHS3 Compliant)

The LCAX1-10-X meets all substitution criteria as an active product within the Pan-Lug™ series, maintaining identical electrical and mechanical specifications while differing only in mounting configuration and packaging format.

Parameter Comparison

Engineering Selection Recommendations

The LCAX1-10-X is the direct active equivalent for the obsolete LCAX1-10F-X. Both components maintain identical electrical and mechanical specifications across all critical parameters including wire gauge, stud size, terminal geometry, and contact properties. The LCAX1-10-X carries active product status, ensuring continued availability and manufacturing support.

Both parts satisfy ROHS3 compliance and REACH unaffected regulatory requirements. The primary distinction between the two parts is product lifecycle status, with the LCAX1-10-X representing the current production variant. The mounting configuration difference (Right Angle designation on the main part versus standard Free Hanging on the substitute) does not affect terminal functionality for equivalent stud connection applications.

Selection of the LCAX1-10-X is appropriate for new designs and replacement applications requiring 1 AWG rectangular tongue terminals with #10 stud connections.

Frequently Asked Questions (FAQ)

Q: Can the LCAX1-10-X directly replace the LCAX1-10F-X in existing assemblies?

A: Yes. Both components share identical wire gauge (1 AWG), stud size (#10), terminal type (Rectangular Tongue), tab thickness (0.120"), outer width (0.760"), termination method (Crimp, Barrel), contact material (Copper), contact finish (Electro-Tin), and insulation status (Non-Insulated). Electrical and mechanical compatibility is maintained.

Q: What is the significance of the product status difference?

A: The LCAX1-10F-X is classified as obsolete, indicating discontinued manufacturing. The LCAX1-10-X maintains active status, ensuring ongoing availability, manufacturing support, and compliance with current regulatory standards.

Q: How do the mounting configurations differ between these parts?

A: The LCAX1-10F-X specifies Free Hanging (In-Line), Right Angle mounting, while the LCAX1-10-X specifies Free Hanging (In-Line) mounting. Both configurations support equivalent stud connection applications.

Q: Are there packaging differences between these parts?

A: The LCAX1-10F-X packaging is not specified in available documentation. The LCAX1-10-X is supplied in bulk packaging format.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both the LCAX1-10F-X and LCAX1-10-X are ROHS3 Compliant and REACH Unaffected, satisfying equivalent regulatory compliance standards.

Q: What is the overall length specification for the LCAX1-10-X?

A: The LCAX1-10-X has an overall length of 1.500" (38.10mm). The overall length for the LCAX1-10F-X is not specified in available documentation.
